Step 2: Click Next. VPN IPSec Policy window is displayed. This window allows
you to create Crypto-map or IPSec profiles with Tunnel Interface.
Create IPSec Profile with Tunnel Interface
1. By default, IPSec-Profile radio button is selected, and the parameters to
configure IPSec Profile is displayed.

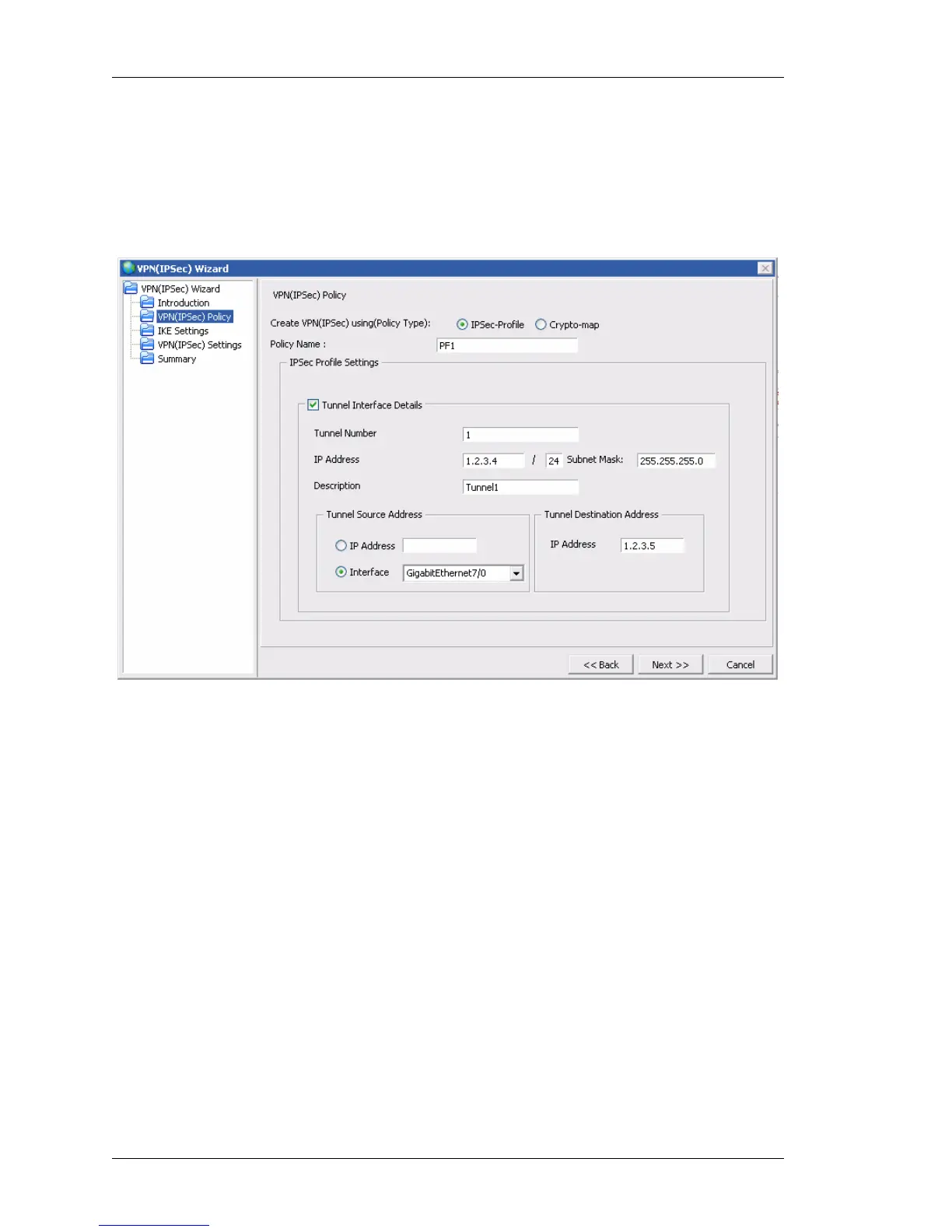

Figure 112: VPN IPSec: IPSec Wizard - Create IPSec Policy with IPSec
Profile
2. Enter the IPSec Profile name in the Policy Name field.
3. Tunnel Interface Details is optional.
By default, Tunnel Interface Details check box is enabled. Unselect the
Tunnel Interface Details check box, and click Next to continue IPSec profile
configuration.
Or
Configure a Tunnel interface.
• Enter the number for the tunnel interface in the Tunnel Number field.
• Enter the IP address and the subnet mask of the tunnel interface in the IP
Address and Subnet Mask fields.
• Enter the description for the tunnel in the Description field.
