ONFIGURE POLICY MAP
This page allows you to configure a policy map.
Note: A policy map can have a maximum of 16 traffic classes including the default class. By
default, the default-class exists for a policy map.
Follow the procedure given below to configure a policy map:
Step 1: From the Policy Map page, click New Policy Map to create a new policy
map.
Policy Map Configuration page is displayed in the center panel.

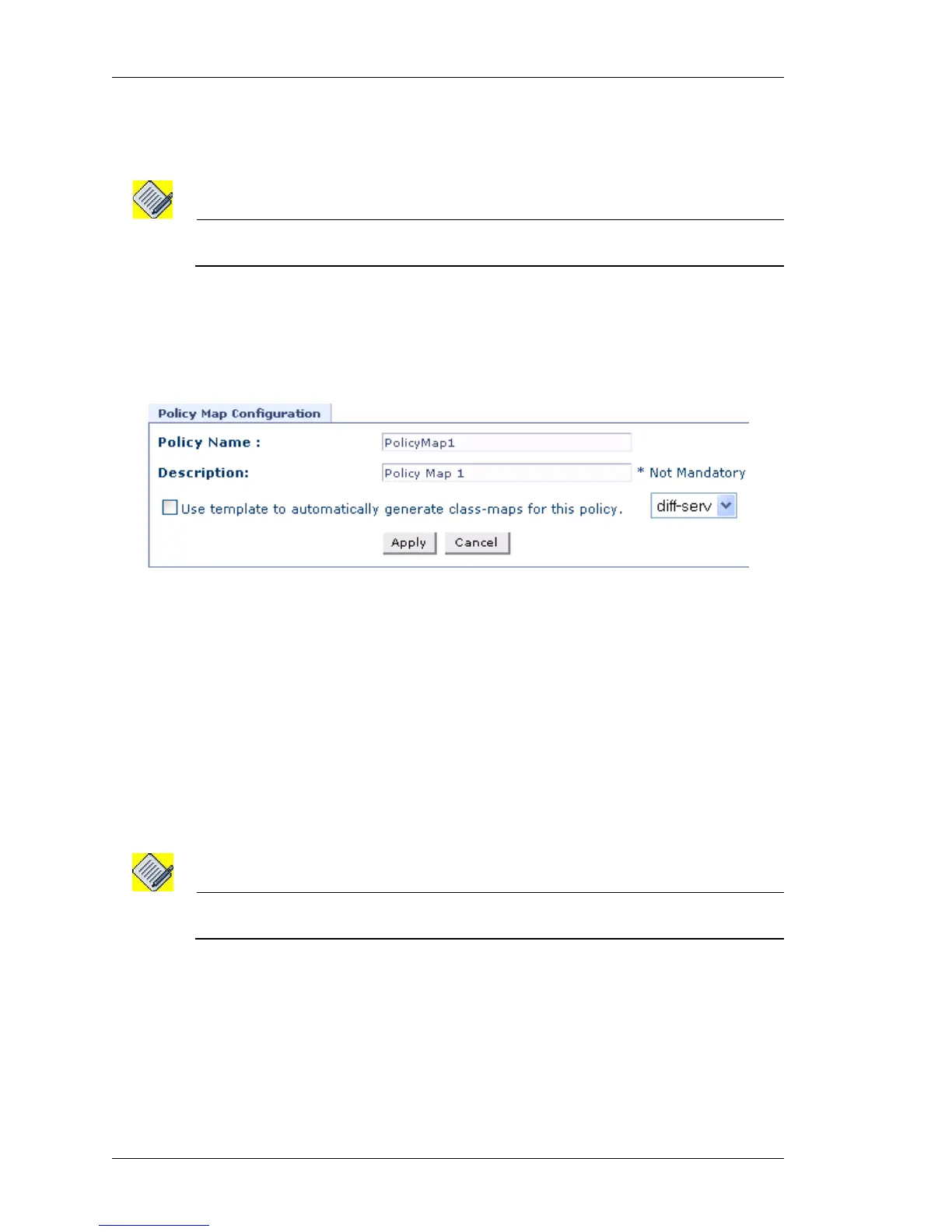

Figure 166: Quality of Service: Policy Map - New
Step 2: Enter the name for new policy map in the Policy Name field.
Step 3: Enter description for the new policy map in the Description field.
(optional)
Step 4: You can create an Auto QoS VoIP/Diff-serv template policy. Select the
Use template to automatically generate class-maps for this policy check box,
and select Diff-serv/VoIP option from the drop-down list.
Auto-QoS template creates a set of match-lists, traffic classes and a policy map
automatically. You can edit or modify these match-lists and class maps. The policy
is not applied on to the interface automatically - you have to explicitly apply this
template on an interface.
Note: The match-list, class maps, and the traffic classes thus created will be suffixed with
the respective policy-map name.
Based on the selection, Auto QoS Diff-serv Template - Policy/Auto QoS VoIP
Template - Policy is displayed in the Description field. This is not editable.
Step 5: Click Apply to create a new policy map.
Step 6: By default, the default-class exists for a policy map, and is displayed in
the Policy Map Traffic Classes table.
Step 7: If the Auto QoS template option is selected, the automatically created
traffic classes are displayed in the Policy Map Traffic Classes table.
