Anritsu MS9740A - Page 29

2.3 Setting Interface
2-13
2
Before Use
7. Select Use the following IP address.

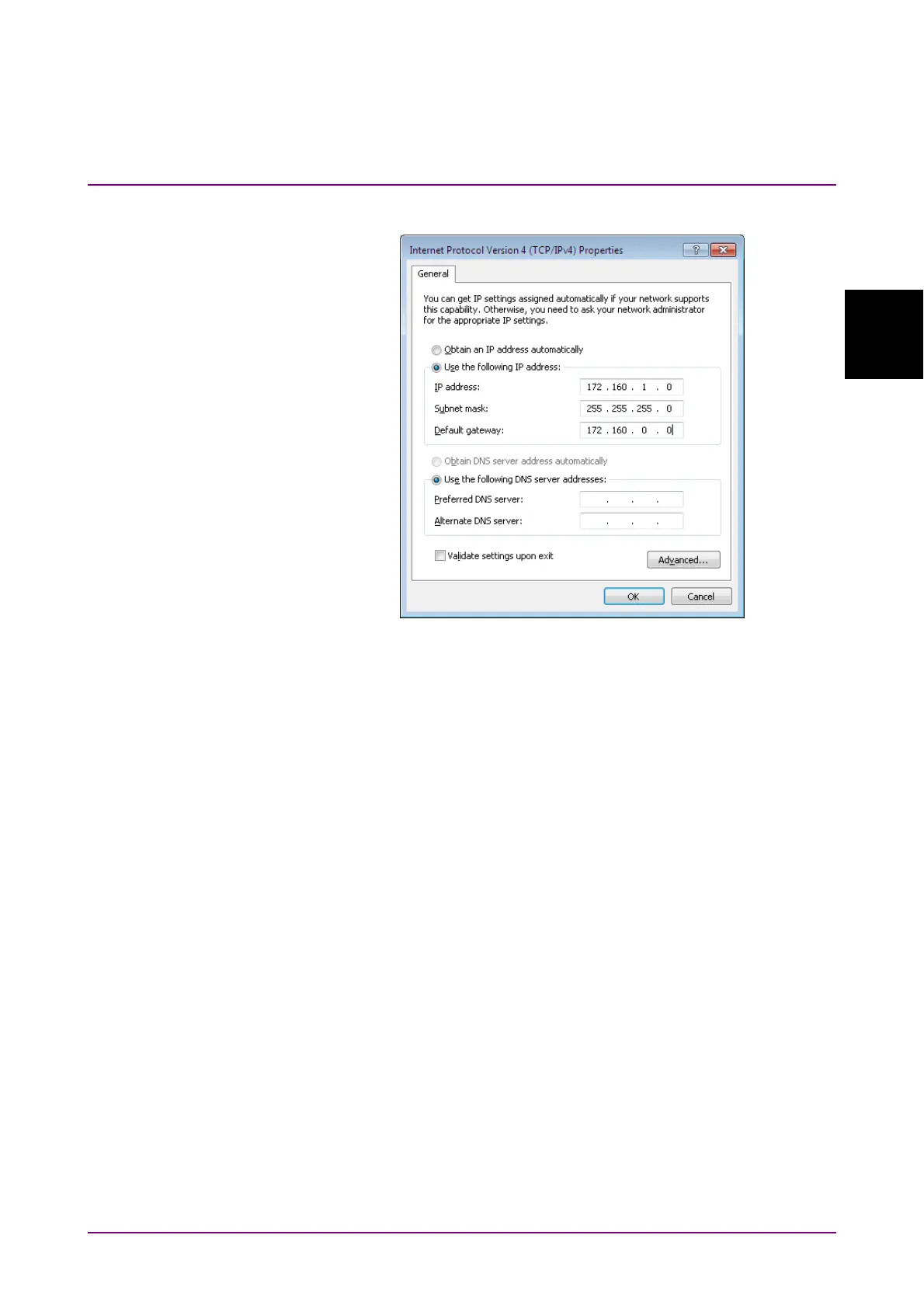

Figure 2.3.1-9 Internet Protocol Version 4 (TCP/IPv4) Properties
Dialog Box
8. Enter IP address and Subnet mask.
When creating a program to control this instrument, the IP address
input here is required.
9. Click OK.
10. Click OK on the Local Area Connection 2 Properties.
