Chapter 5: C4c CMTS Installation Requirements

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

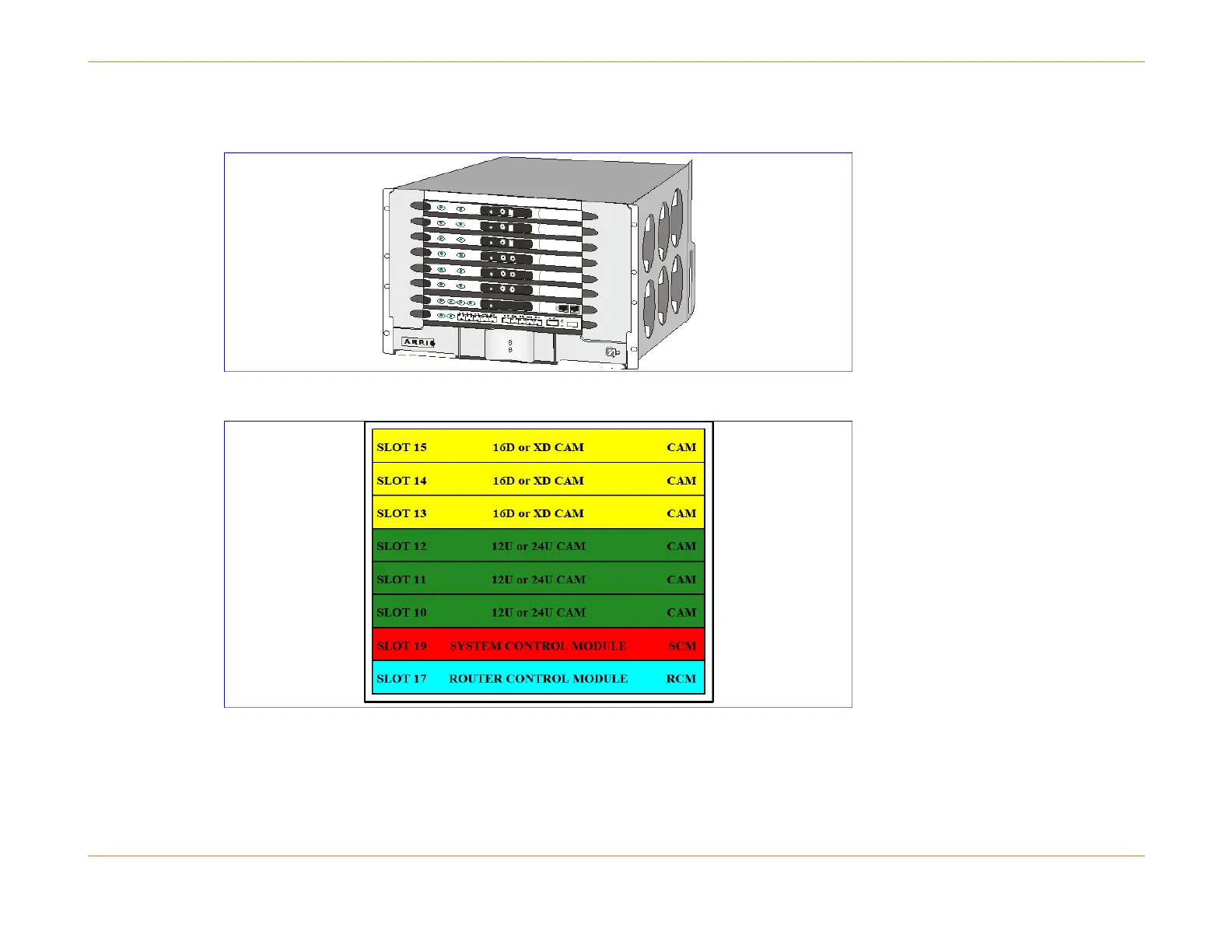

The following two illustrations, line art and graphical, show the front of the chassis.

Figure 26: Front View of C4c CMTS

Figure 27: Line Drawing Showing Slot Numbering (front view)

The chassis example shown in the above figure is equipped with:

 Three 16D or XD CAMS located in slots 13, 14, and 15

 Three 12U or 24U CAMS located in slots 10, 11, and 12
