Arris C4 - Example of CAM Sparing Pics (Chassis Rear View)

To Next Page

To Previous Page

Chapter 13: CAM Sparing

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

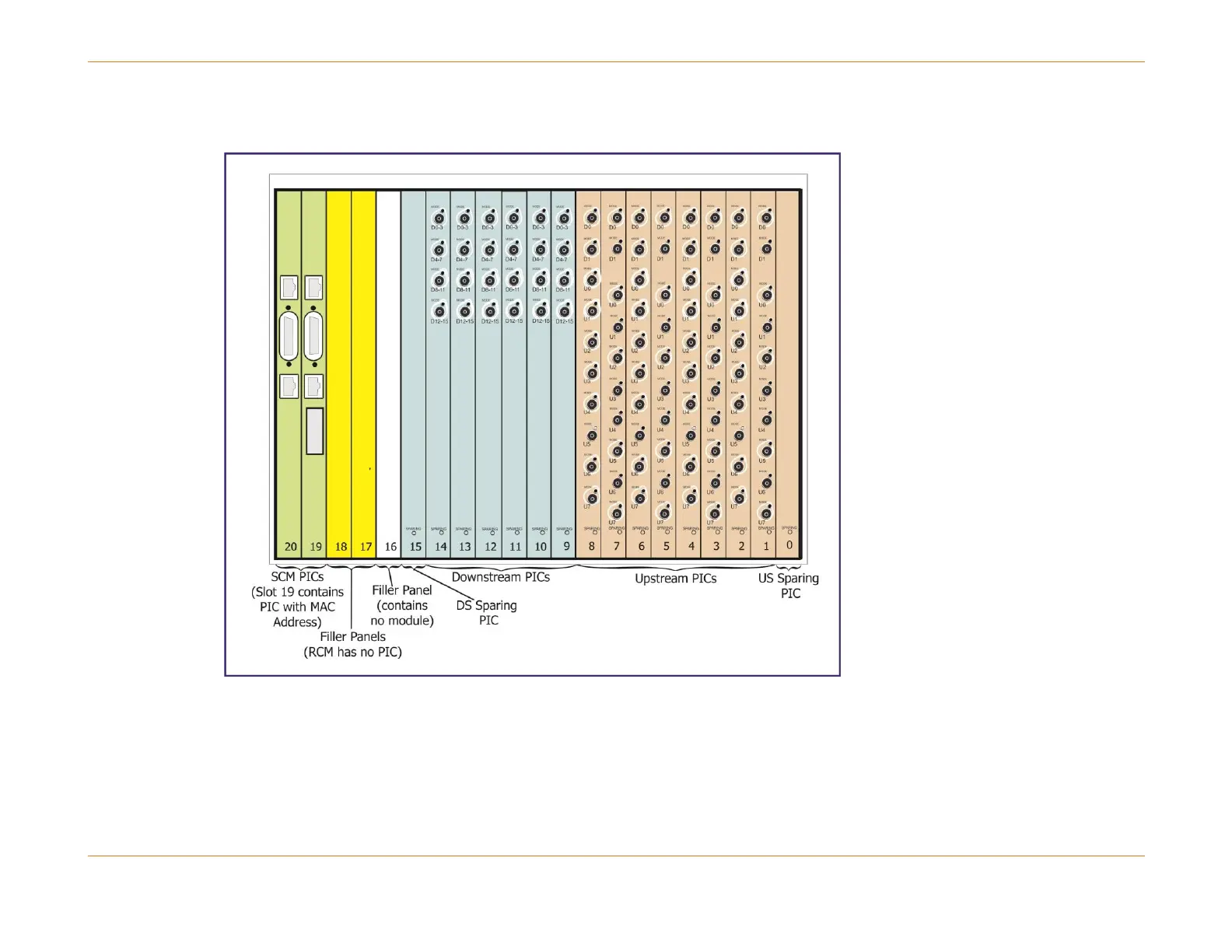

Figure 76: Example of CAM Sparing PICs (chassis rear view)

To configure the spare-groups shown in the examples, use the commands shown in the procedure below.

If using the following procedure for 12U CAMs, enter the CAM slot type 12UCAM instead of 24UCAM. If using 16D CAMs

for the downstream, the CAM slot should be 16DCAM instead of 32DCAM-B (Annex B) or 24DCAM-A (Annex A).
