Chapter 7: Router Control Module (RCM)

STANDARD Revision 1.0 C4® CMTS Release 8.3 User Guide

 If there is a problem with the crossover connection, you will lose the standby Ethernet ports even though the card is in

service.

 If the standby RCM fails, you will lose the standby Ethernet ports during the time that the standby card is coming back

in service.

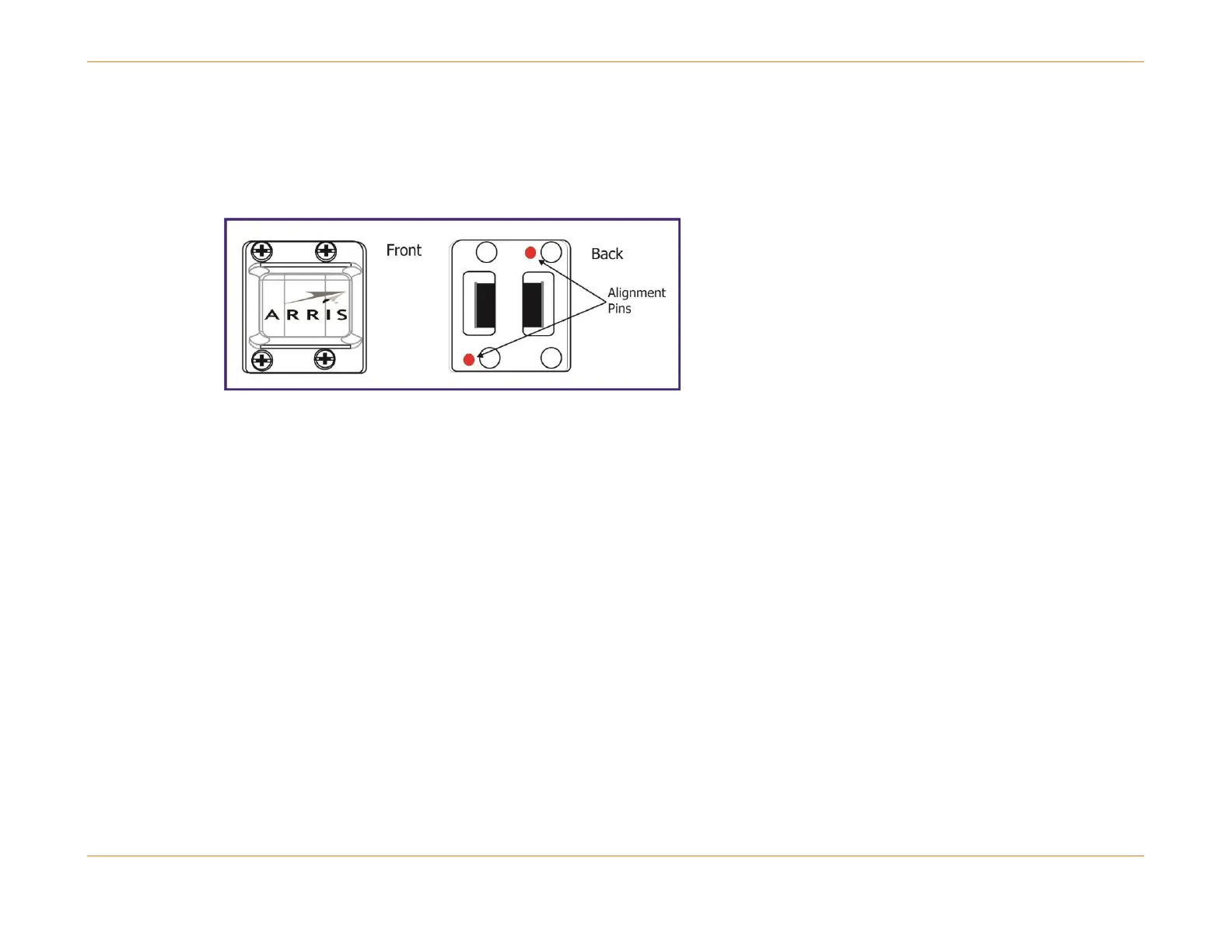

Figure 53: RCM Crossover Connector
