MagicQ software originally supported only 6 universes. A processor upgrade in MagicQ consoles enabled
support for 12 universes and this has recently been expanded to 18.
To change between 6, 12 and 18 universe operation please see
Configuring number of universes
.

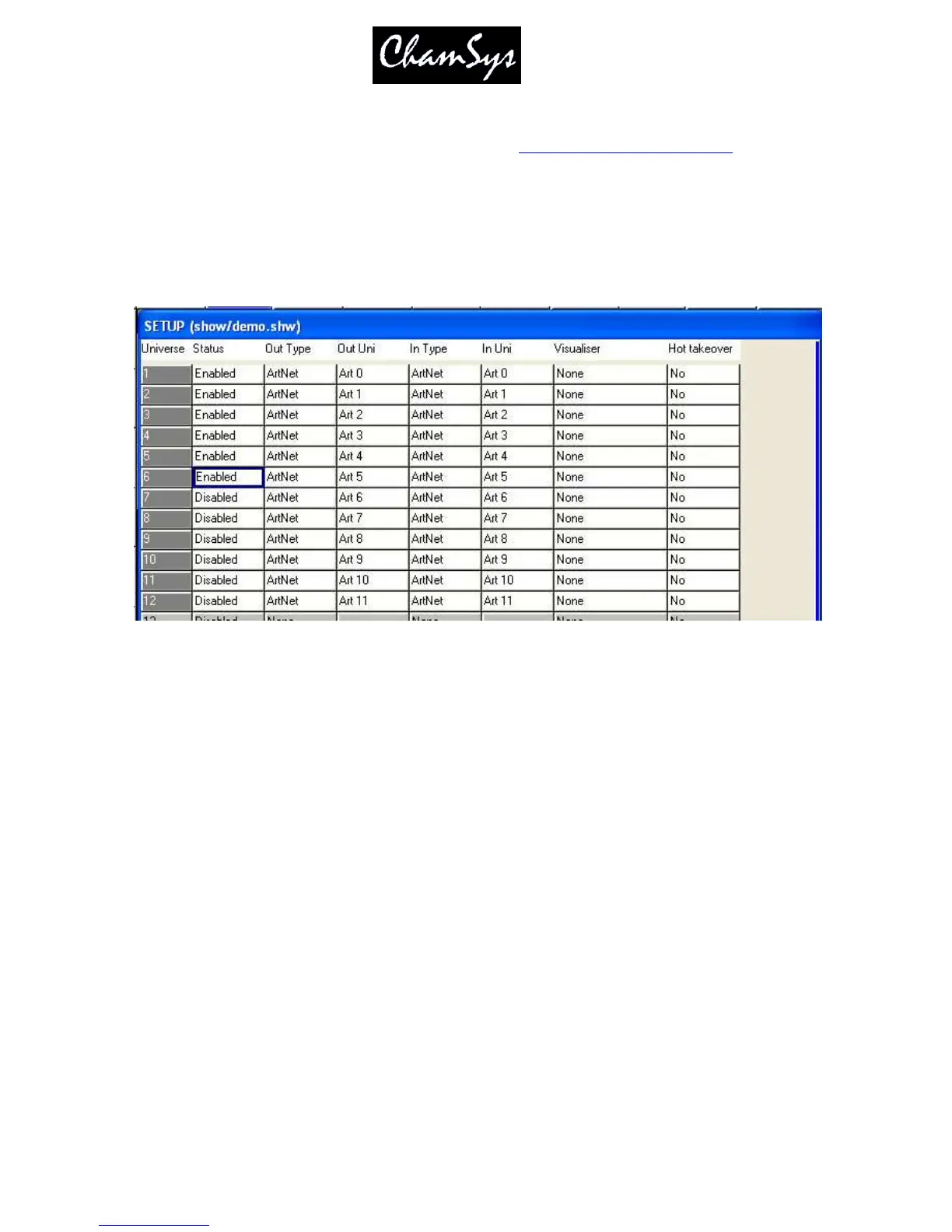

19.3.1 Configuring Output Universes
For each of the 18 universes, the output and input protocol can be selected in the Out Type and In Type fields
respectively. Press ENTER or double click to change to the next protocol type.
The possible protocols are
None No protocol
Art-Net Art-Net and Art-Net II protocol (over Ethernet)
Pathport Pathport protocol (over Ethernet)
Show Net Show net protocol (over Ethernet)
ACN Streaming DMX (over Ethernet)
MQ Direct Direct DMX outputs from MagicQ Pro and Expert consoles
MQ Wing DMX outputs on MagicQ PC wing, Mini Wing or Maxi Wing
Cham USB ChamSys DMX option modules and ChamSys USB to DMX modules
MagicDMX ChamSys MagicDMX USB interface
Art Par Artistic License parallel port dongle
Open USB Open USB dongle - e.g. Enttec Open USB
Enttec Pro Enttec Pro dongle
Dig Enlight Digital Enlightenment dongles
Peperoni Peperoni dongles and devices
DMX4ALL DMX4ALL devices
USBDMX USBDMX devices
Velleman Velleman devices
Nicholaudie Nicholaudie / Sunlight devices
ChamSys supports 3
rd
party DMX dongles but cannot guarantee their performance. – these devices are
supported on Universe 1 only. Note that some of these devices rely on the PC to do the DMX framing and
therefore results may be unpredictable on some systems. Many of these devices are unable to transmit full
DMX frames at the full DMX refresh rate.
