ChamSys MagicQ User Manual

ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 63 Version 1.4.9.0
6 Setting Dimmer levels

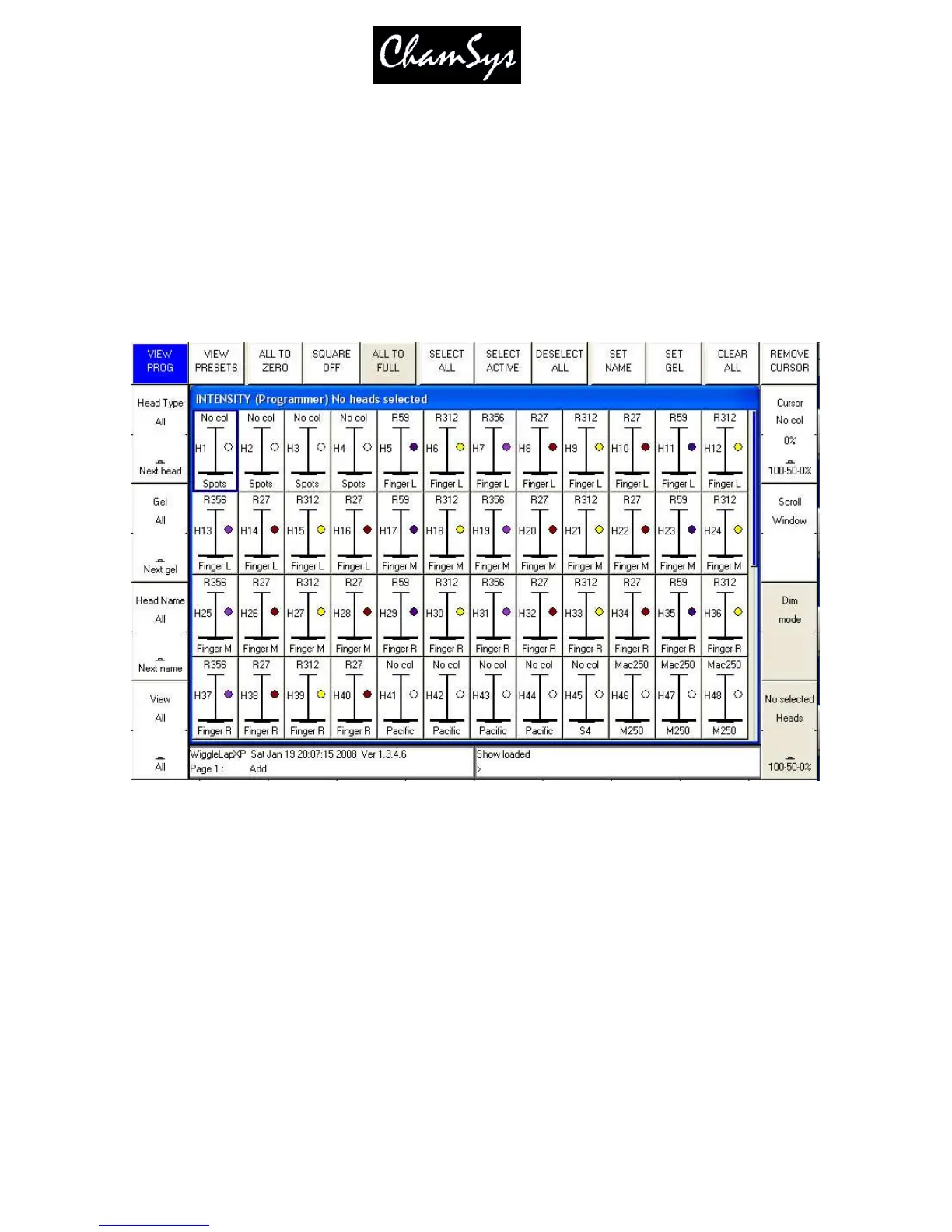

The levels of Dimmers are controlled from the Intensity Window. Press the INT button to open the
window.
6.1 Using the on screen faders
This window displays a fader for each dimmer and head patched onto the console. Pressing the slider part of
the fader sets the appropriate level. When a fader is moved from 0 the channel in the programmer is activated –
and the fader will turn red.
The SQUARE OFF soft button enables fast programming of intensities. Using the touch screen select the
channels you wish to have at full and at zero – but don’t bother being exactly accurate with the level of the
selection. Pressing SQUARE OFF finishes the job by setting all channels that are less than 50% to 0 whilst
setting channels above 50% to full.
Use the ALL TO FULL and ALL TO ZERO buttons to change the level of all the channels.
Press SHIFT and SQUARE OFF to invert the faders - all channels less than 50% go to 100% whilst all
channels above 50% go to 0%.
Press the CLEAR soft button to clear the programmer.
6.2 Using the encoders

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
