3 MagicQ Console Layout
3.1 Connections

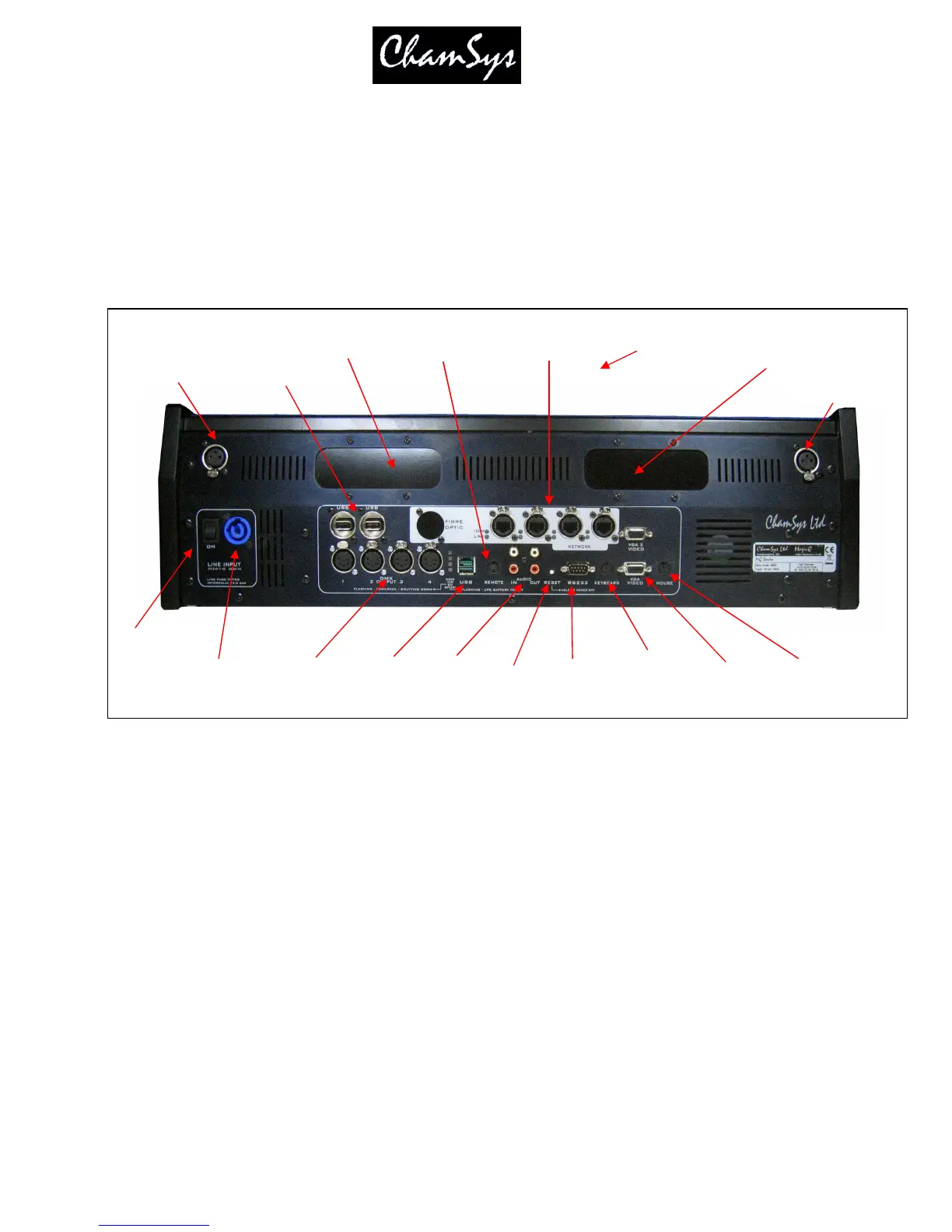

The picture below shows the connections on a MQ100 Pro 2010 console. The MQ200 Pro 2010 and
MQ300 Pro 2010 have the same connectors with the addition of extra console lamp sockets.
The expansion module slots can be fitted with MagicQ expansion modules such as the twin DMX512
output module, and other future expansion modules.
Power socket
(110-240Vac)
Power
Audio
ports
Console lamp
USB
port
Network
ports
sbutton
Monitor
port
Mouse
port
Serial
port
Reset
butto
Keyboard
port
Remote
tri
gger
Expansion
module
Expansion
module
USB port
under arm
-
rest
Console lamp
DMX
ports
USB
ports
MQ100
Pro

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
