39.6 Enabling MagicQ to output WYSIWYG data

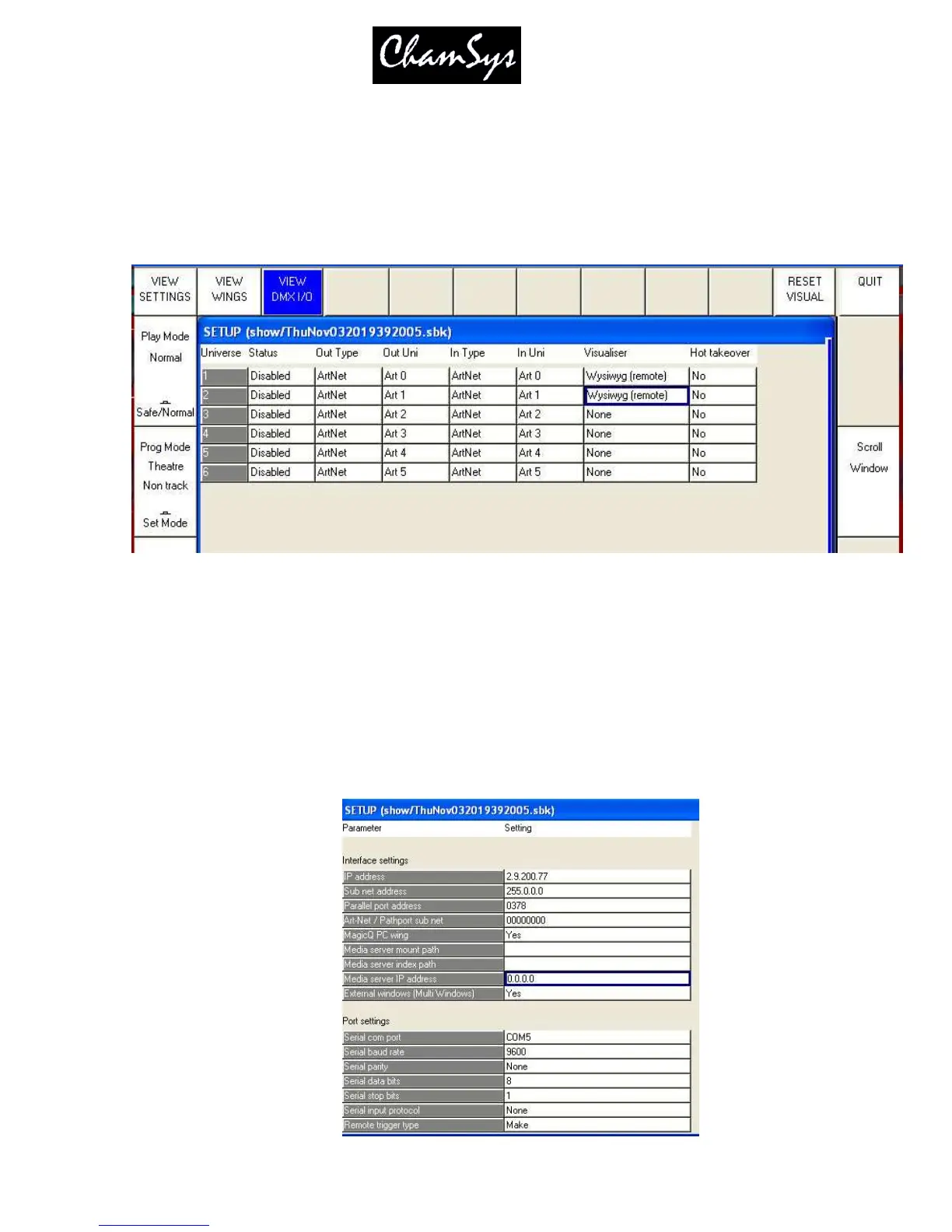

Now you need to configure the outputs. Go to the Setup, View DMX I/O window. You will see a list of
the 18 universes and their current configuration.
Move to the Visualiser row and select WYSIWYG for the first universe. There is no need to change the
Status column to enabled - WYSIWYG is automatically enabled when you select WYSIWYG as the
visualiser.
If you are using WYWISYG on the same PC as MagicQ then set the Visualiser to WYSIWYG (same PC)
– otherwise, set it to WYSIWYG (remote). When connecting to WYSIWYG using a MagicQ console,
always use WYSIWYG (remote).
When using WYSIWYG and MagicQ on different PCs it is important to ensure that MagicQ PC knows
the IP address to use to communicate with WYSIWYG. In the Setup, View Settings Window, set the “IP
Address” to be the same as the IP address of your network port – for example if you PC has a network
address of 2.9.200.77 then set the value in the Setup Window to 2.9.200.77.

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
