3.7.4 Editor Buttons

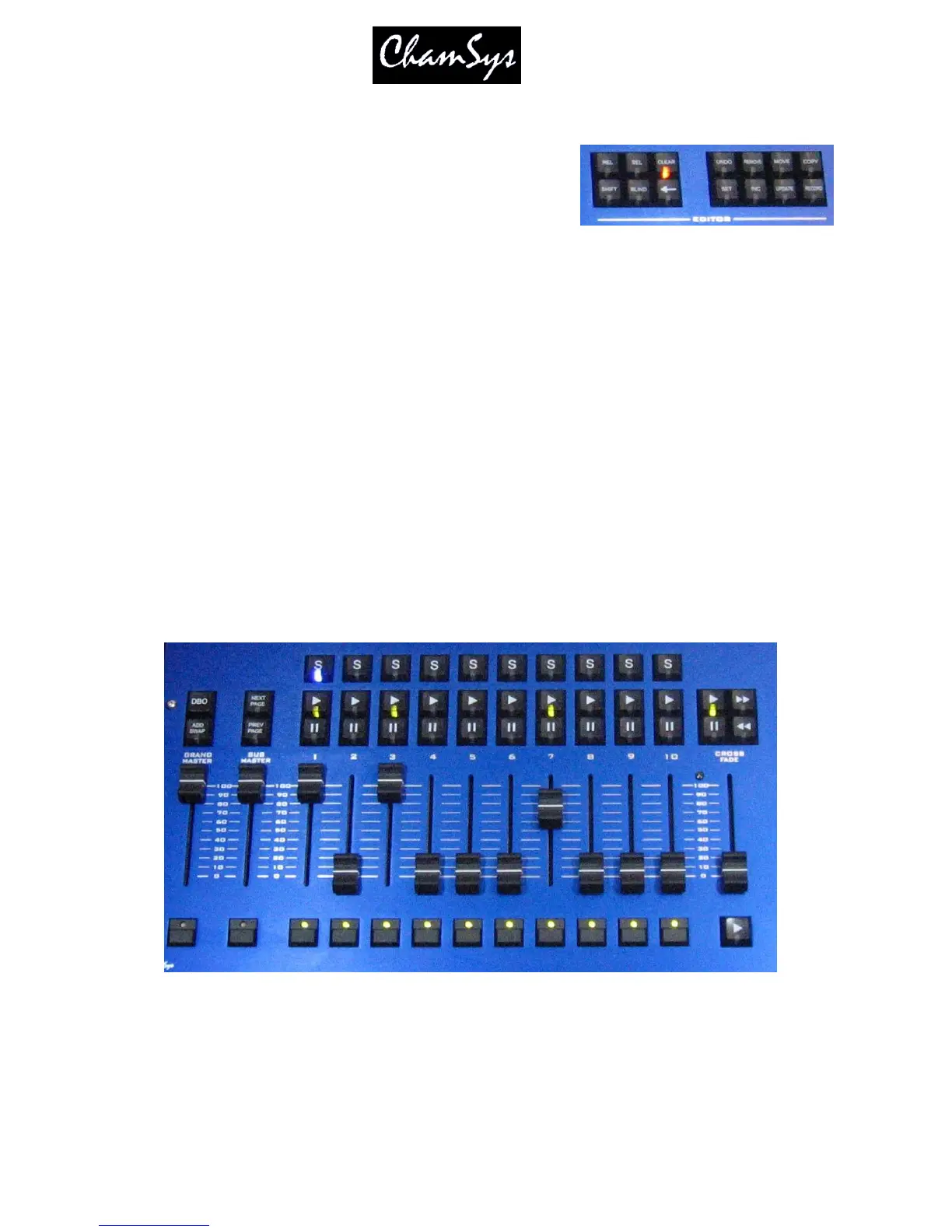

The Editor buttons are used to modify program data. The 8 buttons
on the right hand side are the action buttons which are used to
modify show data. The action buttons are
UNDO REMOVE MOVE COPY
SET INCLUDE UPDATE RECORD
The buttons on the left:
BLIND and CLEAR affect the programmer
REL and SELECT affect playbacks
SHIFT selects alternate functions
<-- undoes keyboard input and clears actions
3.7.5 Playback
The Playback area is situated directly below the touch screen and consists of 10 playbacks each with a
fader and four buttons (FLASH, GO, STOP, SELECT). The area above each of the playbacks on the touch
screen is used to provide information about the status of the playback.
The playback area also contains a Grand Master, a Sub Master, Page Select buttons and a Manual
Playback for taking control of Cue Stacks.
The cross fade section contains a GO, STOP. FWD, BCK buttons, a cross fader and a master GO button.
The cross fade section controls the current playback selected with the S button.

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
