ChamSys MagicQ User Manual

ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 27 Version 1.4.9.0

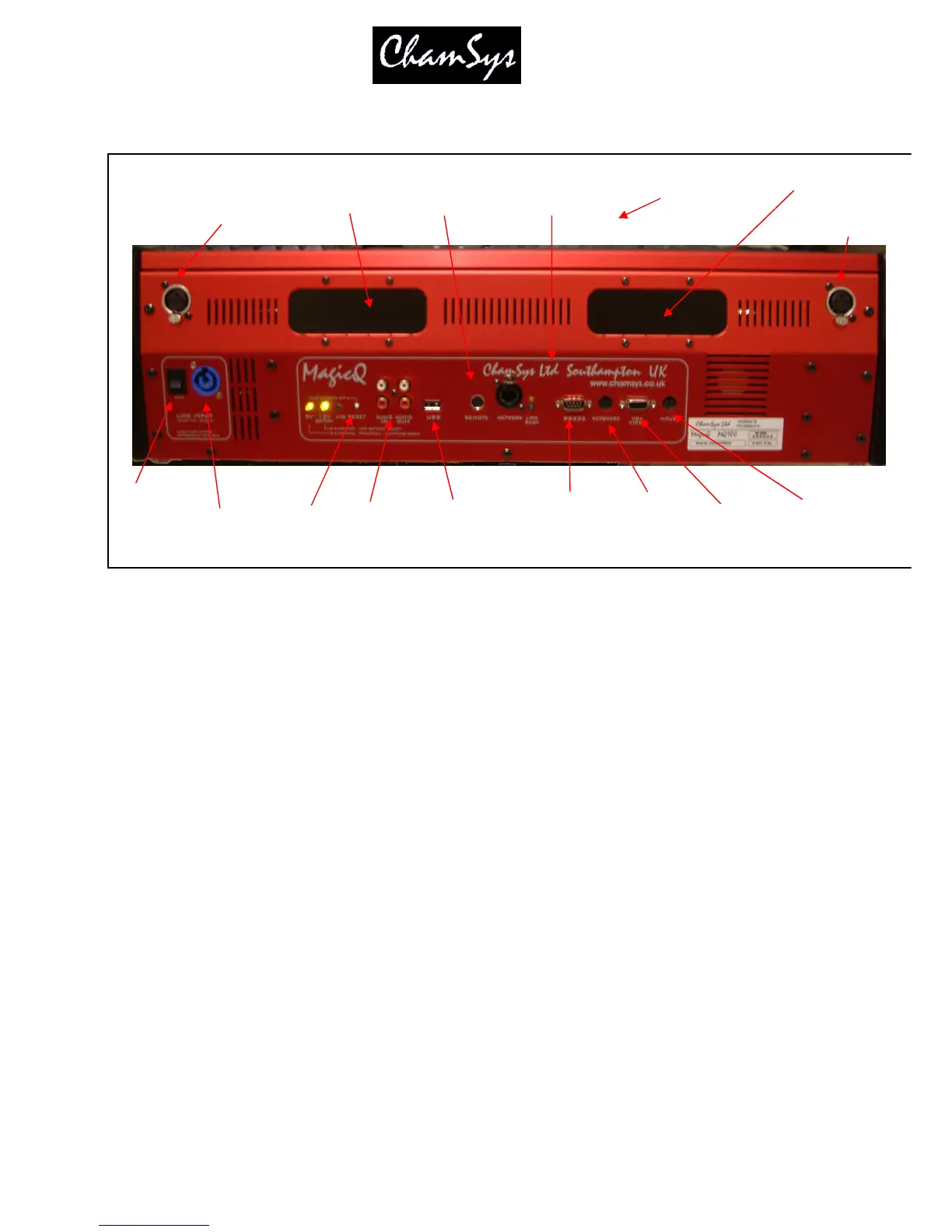

The original MQ100 (MQ100 Expert) has the following connections.
The rear panel of the MQ50 is similar but with a slightly different layout of the connectors. The MQ50
power connector is an IEC connector.
3.2 Plugging Up
• Connect the power lead to the power socket labelled LINE INPUT.
• Put the console lamps into the console lamp sockets
• Connect the keyboard to the socket on the back panel marked KEYBOARD
It is not necessary to connect the mouse. The mouse is only required if the touch screen becomes
damaged.
The Pro 2010 consoles support USB keyboards and mice.
3.3 DMX Connections
The MagicQ Pro and Pro 2010 series of consoles have 4 direct DMX outputs on the rear of the panel so
you can connect your DMX cables direct to the console.
Alternatively you can use Ethernet and an external Ethernet to DMX converter box such as the ChamSys 3
Universe Ethernet to DMX converter. Connect the DMX converter to the console Network port via the
network cable provided. When making a direct connection in this way an ”inverted” network cable must
be used.
To connect multiple Ethernet to DMX converters to the console, use a network hub or network router
using standard network cables.
Power socket
(110-240Vac)
Power switch
Audio
ports
Console lamp
USB
port
Network
port
Monitor
port
Mouse
port
Serial
port
Reset
butto
Keyboard
port
Remote
trigger
Expansion
module
Expansion
module
USB port
under arm
-
rest
Console lamp
MQ100

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
