ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 31 Version 1.4.9.0

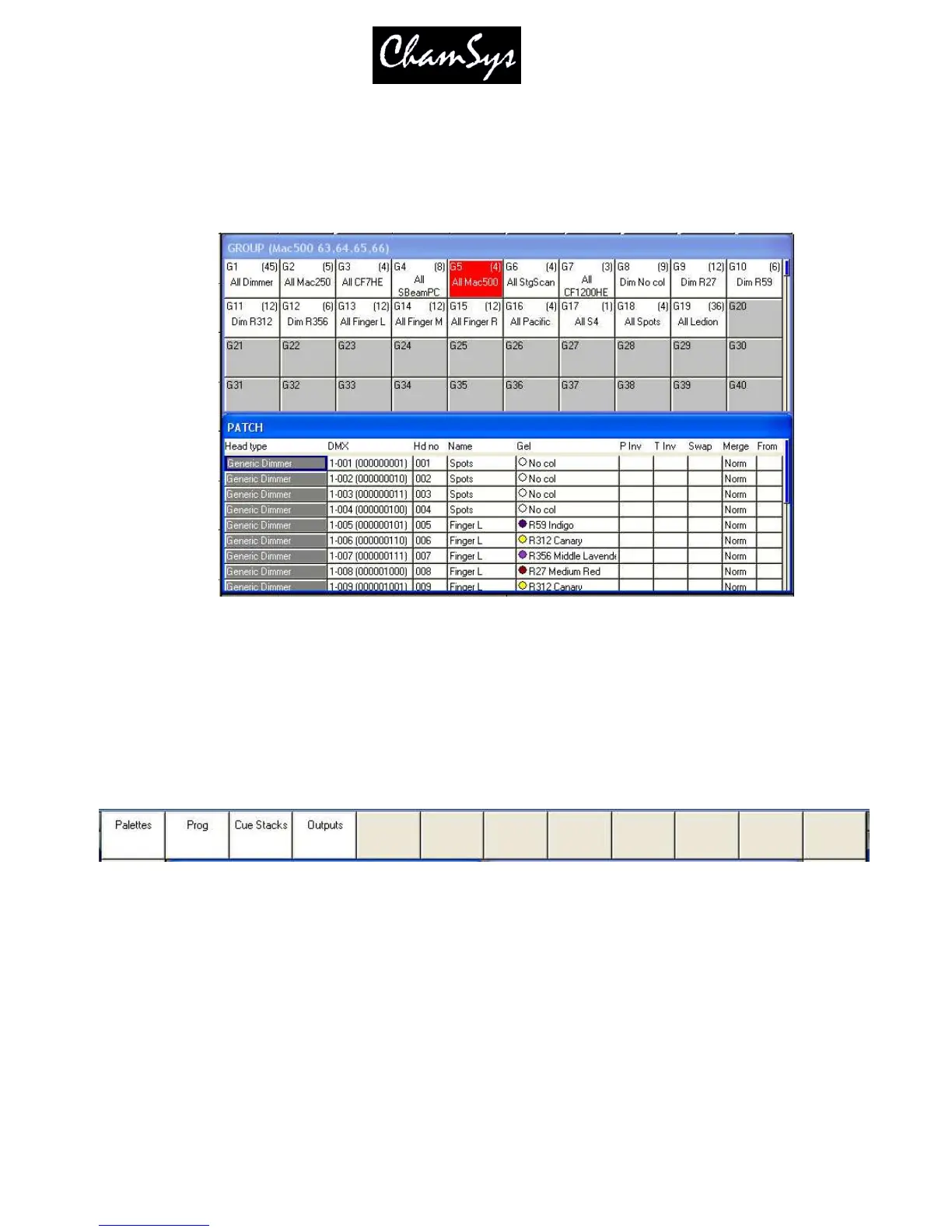

3.7.2 Windows
The area in the centre of the screen is the windows section in which the various control windows are
displayed. There are two main types of windows – boxes style windows which have large boxes such as
the Group Window and spreadsheet style editing windows such as the Patch Window.
A window is displayed by pressing the appropriate window button. Changing window does not affect
programming or playback.
Multiple windows can be displayed at one time by sizing the windows appropriately. In addition a
complete configuration of windows – i.e. a complete view can be selected using CTRL and the top soft
buttons. For example, to select the Palettes view (Groups, Positions, Colours and Beams) press CTRL and
the first top soft button.
When a window button is pressed, that window becomes the active window. The active window is on the
top of the screen and is easily identified as the window with the highlighted title bar at the top. It is also
the window with the cursor in it.
An item in a window can be selected either
a) By pressing the touch screen over the appropriate part of the window
b) By moving the cursor to the appropriate position and pressing the ENTER button.
c) By moving the mouse to the position and pressing the left mouse button.
The cursor can be moved around the active window using the cursor keys in the Editor area of the console
or via the cursor keys on the keyboard. PG UP, PG DN, PG LEFT and PG RIGHT can be used to scroll
the window in the appropriate direction. HOME and END can be used to get to the start and end of the
window respectively.
