ChamSys MagicQ User Manual

ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 262 Version 1.4.9.0

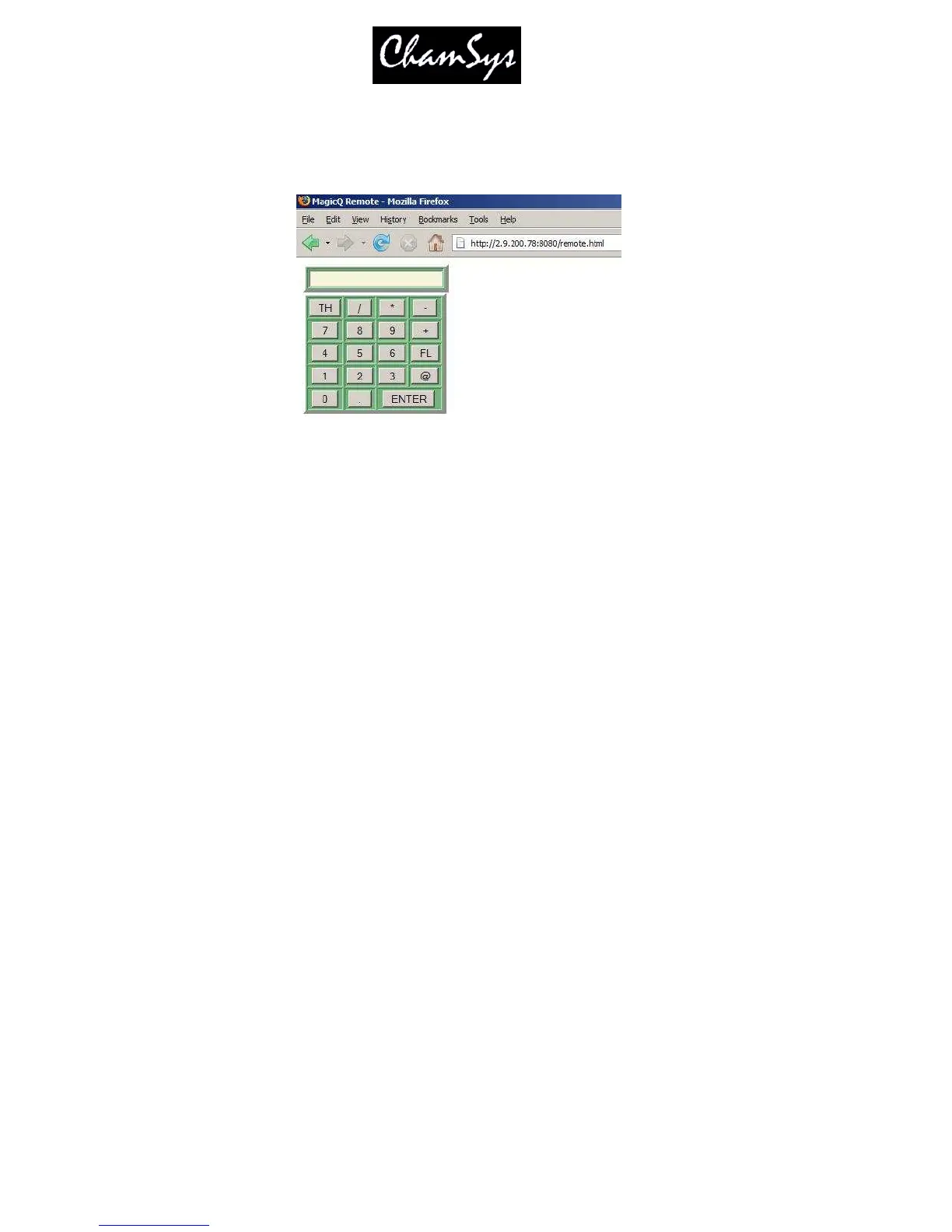

The Remote page is a simple remote focus for setting channel levels. It can also be accessed by adding
“/remote” to the URL. This is useful for Pocket PC and mobile phones to go directly to the remote control
page.
chamsys176:8080/remote
In order to set up a PC, Pocket PC or mobile phone to connect to MagicQ you must ensure that there is a
physical connection to MagicQ – either directly via network cable, or via a wireless router. The IP
address of the PC, Pocket PC, or mobile phone must be set to be on the same network as the MagicQ –
this is generally the ArtNet IP addressing scheme – so the device must have an IP address starting with 2
(e.g. 2.0.0.2) and a subnet mask of 255.0.0.0.
The Execute page is very similar to the Execute Windows on the console but accessible through any PC
with a browser on the network – it enables users to remote manage the console via the Execute window.
The Windows pages enable users to view all the windows on the console remotely within a browser. This
is useful for checking the status of a remote console or for easy printing of console show data.

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
