ChamSys MagicQ User Manual

ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 276 Version 1.4.9.0

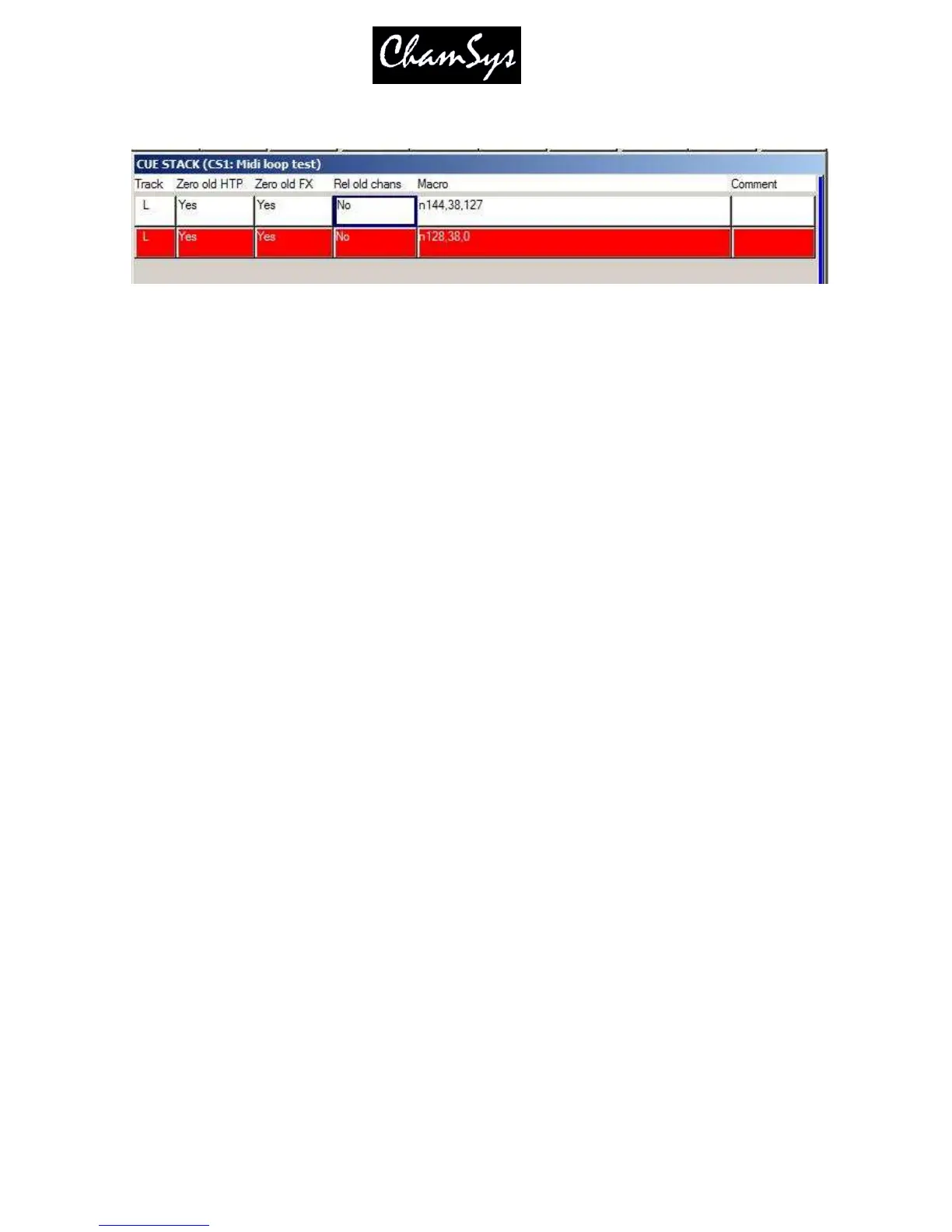

MIDI commands are entered in decimal in the Macro field of the Cue Stack Window (page right) using
the ‘N’ macro command. It is possible to over-ride the channel specified in the MIDI commands using the
MIDI Out Channel in the Setup Window.
MIDI note commands are 3 bytes long, consisting of the command (note on / note off) byte, followed by
the note and then the velocity
<note on/off> <note> <velocity>
For example, to send a note for middle C set the macro field to the following:
N144,60,127 // Note 60 on velocity 127
N128,60,0 // Note 60 off
MagicQ accepts both ‘N’ and ‘n’ to specify MIDI commands.

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
