ChamSys MagicQ User Manual

ChamSys Ltd www.chamsys.co.uk
MagicQ User Manual 47 Version 1.4.9.0
For indexed attributes such as colour wheels and gobo wheels, the button associated with each encoder can be
used to bump the attribute value to the next range. Pressing SHIFT and the button bumps back to the previous
range.

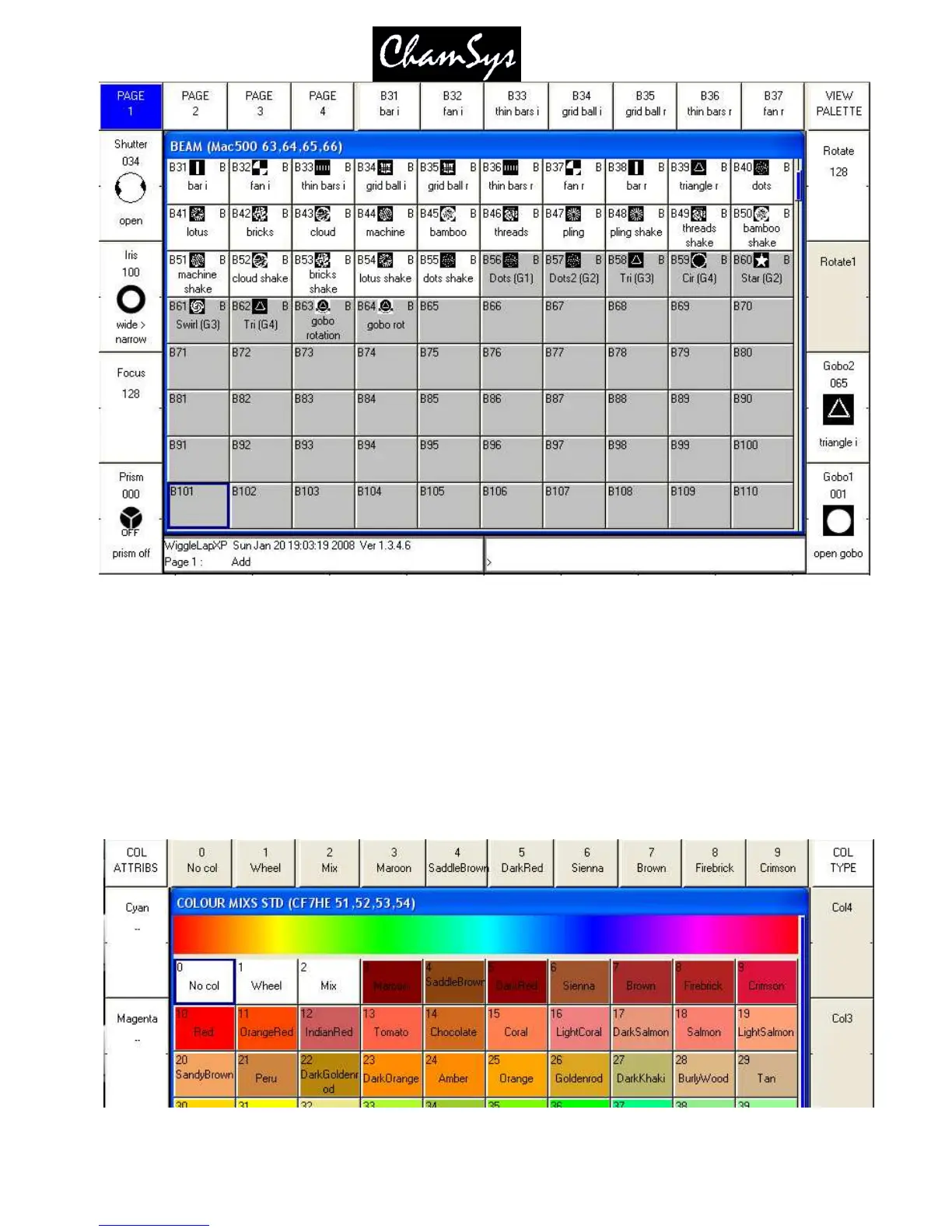

In addition the window enables selection of palette values for the attribute type using the touch screen. When
heads are recorded the system automatically generates palettes for each attribute type. You can record new
palette entries, or modify existing ones as you see fit.
In the Colour Window pressing the COL MIX / COL ATTRIBS button changes to the colour picker. Press
COL TYPE to select standard colours, Lee colours, Rosco colours or HIS model.

ChamSys MagicQ Specifications

General

Type	Lighting Control Console
Manufacturer	ChamSys
Software	MagicQ
Networking	Yes
MIDI Support	Yes
SMPTE Support	Yes
Cues	5000
Cue Stacks	2000
Encoders	Varies by model
Touchscreen	Yes
Universes	64
Number of fixtures	Unlimited (software dependent)
Network Ports	4
DMX Outputs	4
Inputs	MIDI, SMPTE
Compatibility	Windows, macOS, Linux (for software)
Features	Pixel Mapping
Faders	Varies by model (Mini Wing: 12, PC Wing: 10, MQ50: 12+12, MQ80: 10, MQ70: 10, MQ100 Pro: 10, MQ300 Pro: 15)
