576 Configuring Routing

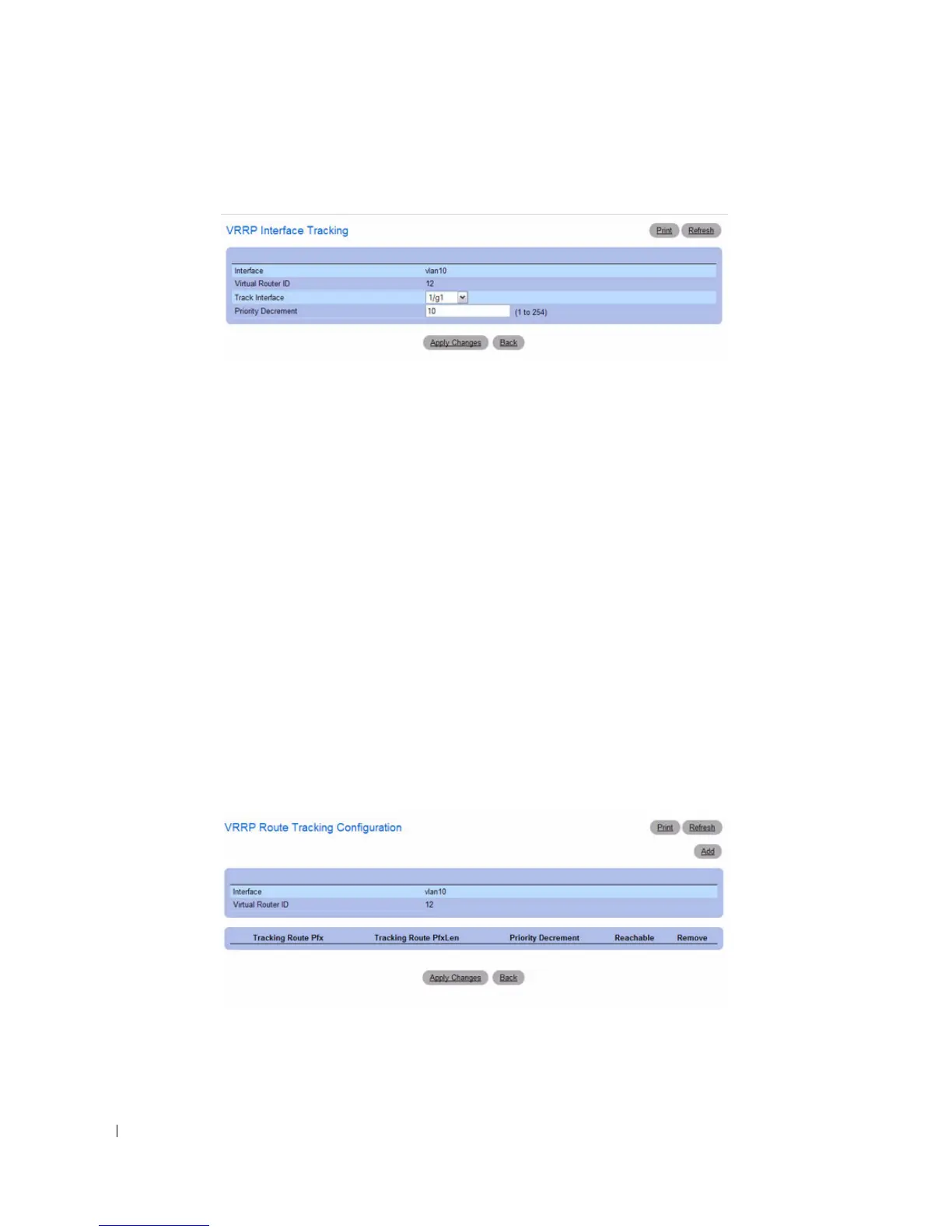

Figure 9-46. Add VRRP Interface Tracking
4. Complete the fields as necessary.
The Add VRRP Interface Tracking page contains the following fields.
•
Interface — The interface associated with the Virtual Router ID.
•
Virtual Router ID — The Virtual Router ID.
•
Track Interface — Select an interface for the VRRP router to track.
•
Priority Decrement — When a tracked interface goes down, the priority decrement specifies the
amount that the router priority will be decreased. The valid range is 1 to 254. The default value is
10.
5. Click Apply Changes to update the switch.
Configuring VRRP Route Tracking
1. Open the VRRP Router Configuration page.
2. Click Track Route .
The
VRRP Route Tracking Configuration page displays. From this page, you can add a new route to
track or remove a tracked route.
Figure 9-47. VRRP Route Tracking Configuration
3. To add a VRRP tracking route, click Add .
The page refreshes, and the configuration fields appear.
