Function Checks
Chapter 2: Troubleshooting Procedures
Isolette® Infant Incubator (Model C2000) Service Manual Page 2 - 19
2

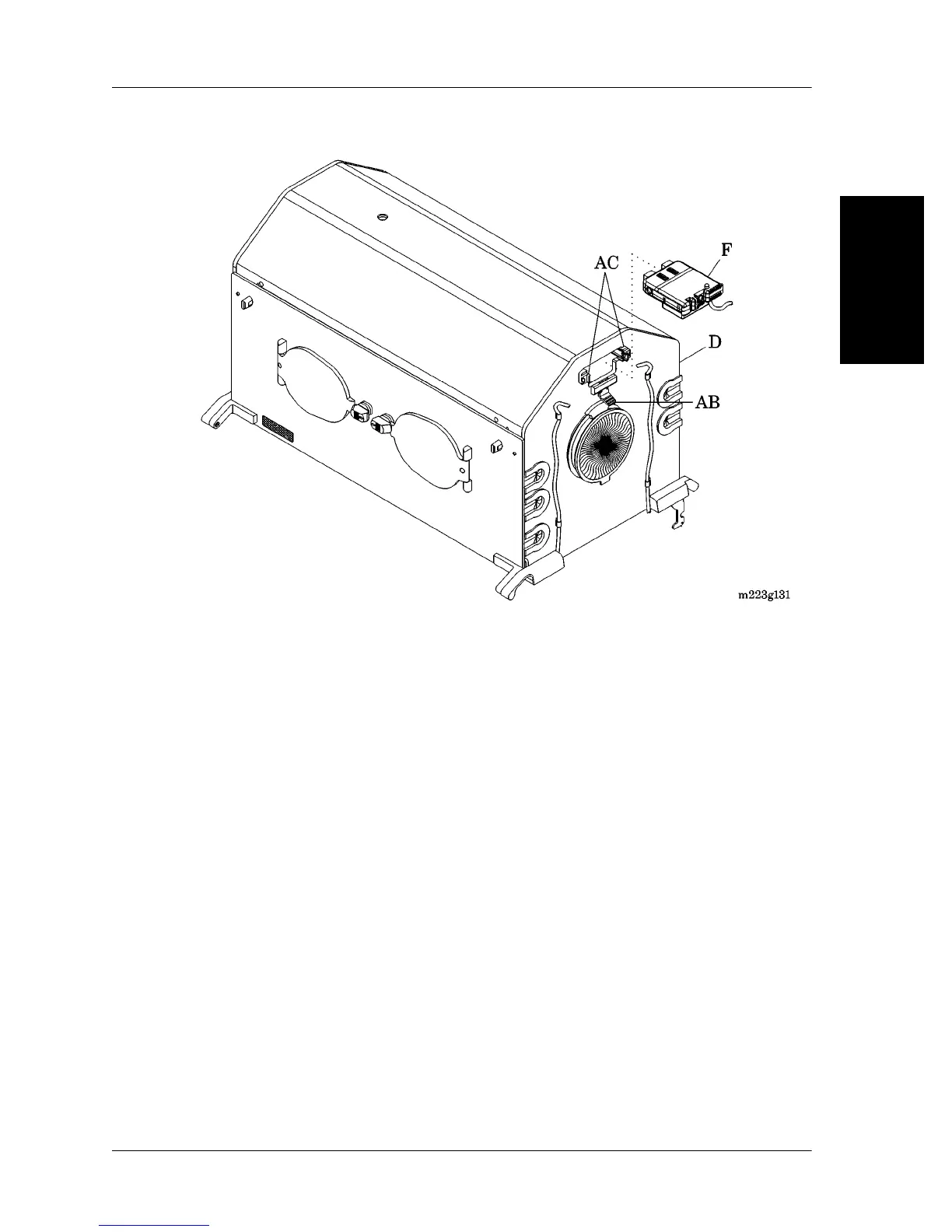

Figure 2-8. Sensor Module and Sensor Module Lock
Yes No
↓→Go to step 28.
27.Perform the following to check the operation of the sensor module
lock (AB).
a. Pull the sensor module lock (AB) down.
b. Slide the sensor module (F) out until it stops.
c. Pull the slide assemblies (AC) on the sides of the sensor module
(F) to release its stop, and slide the sensor module (F)
completely out of the hood assembly (D).
d. Return the sensor module (F) to the hood assembly (D). Ensure
that the sensor module (F) is fully engaged in the sensor module
lock (AB).
e. Push the sensor module lock (AB) up.
When the sensor module lock (AB) is raised, the sensor module (F)
is locked securely in place.
Yes No
↓→Go to RAP 2.33 on page 2-98.
