7-4-3-5 RFI Demodulator Short Test (cont’d)
8.) If necessary, use the scroll bars and/or arrows to scroll through the list of Test results.
NOTE: For this test, there is one report (Demodulator Short Test report) which is listed in the Reports window
on the right. By default, this report is displayed in the Reports window below (Figure 7-19 "View Test
Log - RFI Demodulator Short Test" on page 7-43). Use the Report window scroll bars and/or arrows
to scroll through complete report if necessary.
9) When done, trackball to the Exit button and press Set to close the View Report window.
10) After reviewing the test results, proceed as follows:
• If no problems were identified, it is recommended to re-boot the system (this is obligatory when
prompted).
- If no problems were identified but the problem persists, contact your local GE HEALTHCARE
field engineer for assistance.
• If errors were identified but the results were marginal, perform calibration, as described in
“DC Offset Calibration” on page 7-27, and then repeat the test.
• If errors were identified and the results were not marginal, verify that all system cables and
boards are connected (not misplaced) and functioning properly, as described in Chapter 5 -
Components and Function (Theory).
If the problem persists, this indicates that either the specific board you tested is faulty or that
another board that supports the operation of that board is faulty. Contact your local
GE HEALTHCARE field engineer for assistance.
11.)Trackball to the Exit button and press Set to close the View Test Log dialog box.
12.)Press the <Esc> button on the keyboard to close the Diagnostic Test Window.

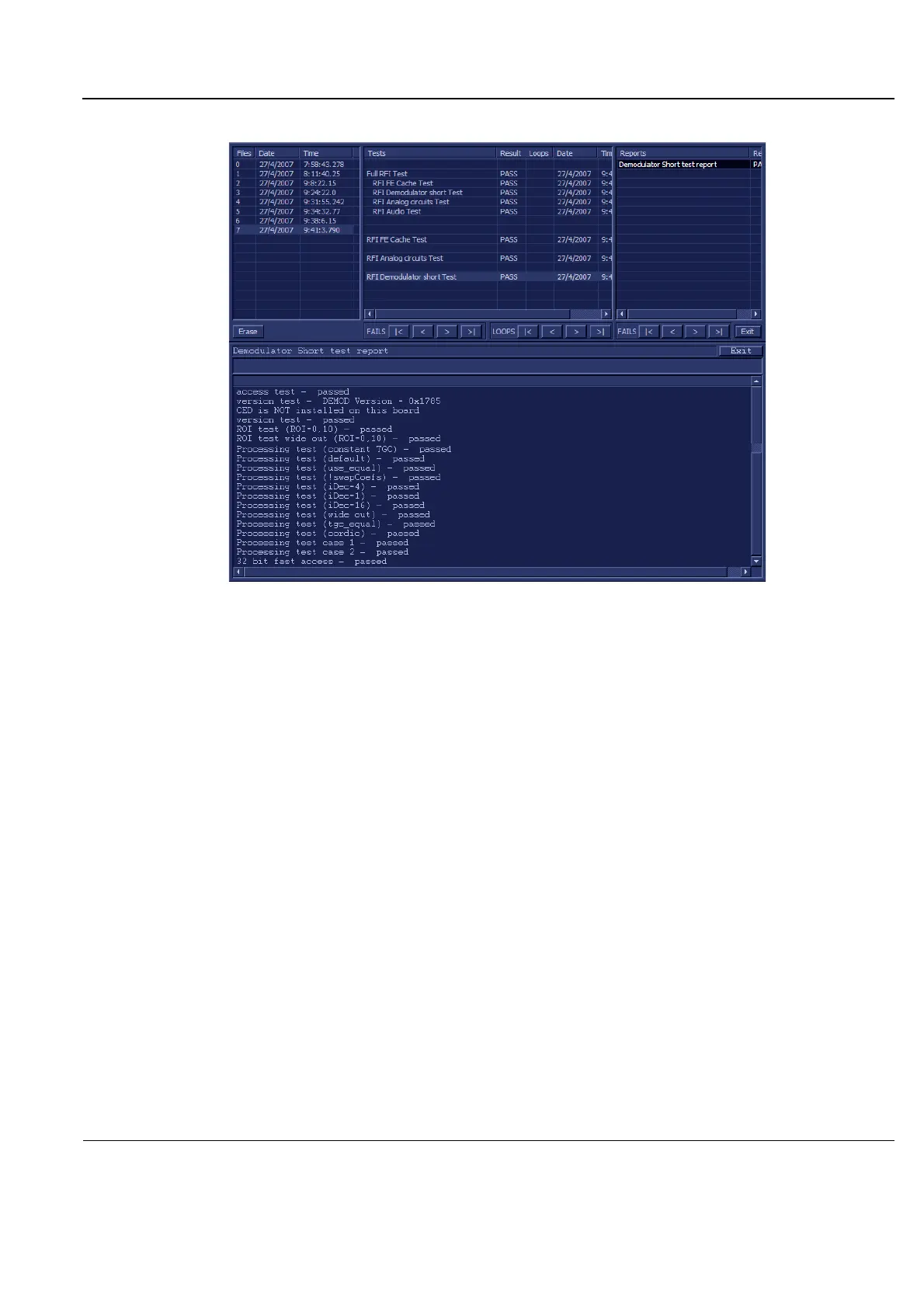

Figure 7-19 View Test Log - RFI Demodulator Short Test
