7-6-1 Accessing the Back End Diagnostic Test Options (cont’d)
• Yellow: The tests executed so far on these components have passed, but not all
recommended tests have been performed.
5.) At any stage, trackball to the Pause button and press Set, if required.
6.) To resume testing (from the point where you paused), trackball to the Start button and press Set.
When the PCI Test sequence is complete:
- the Diagnostic Test window displays the Finished message
- the View Test Log window opens automatically, listing all tests performed and showing details
of which tests and sub-tests passed or failed, as shown in the example in Figure 7-86 "View
Test Log - Full Memory Test" on page 7-125.
NOTE: For the PCI Test, there is one report which is listed in the Tests window as shown in
Figure 7-90 "View Test Log - PCI Test" on page 7-129.
7) When done, trackball to the Exit button and press Set to close the View Report window.
8) After reviewing the test results, proceed as follows:
• If no problems were identified, it is recommended to re-boot the system (this is obligatory when
prompted).
• If no problems were identified but the problem persists, contact your local GE HEALTHCARE
field engineer for assistance.
• If errors were identified and the results were not marginal, verify that all system cables and
boards are connected (not misplaced) and functioning properly, as described in Chapter 5 -
Components and Function (Theory).
If the problem persists, this indicates that either the specific board you tested is faulty or that
another board that supports the operation of this board is faulty. Contact your local
GE HEALTHCARE field engineer for assistance.
9.) Trackball to the Exit button and press Set to close the View Test Log dialog box.
10.)Press the <Esc> button on the keyboard to close the Diagnostic Test Window.

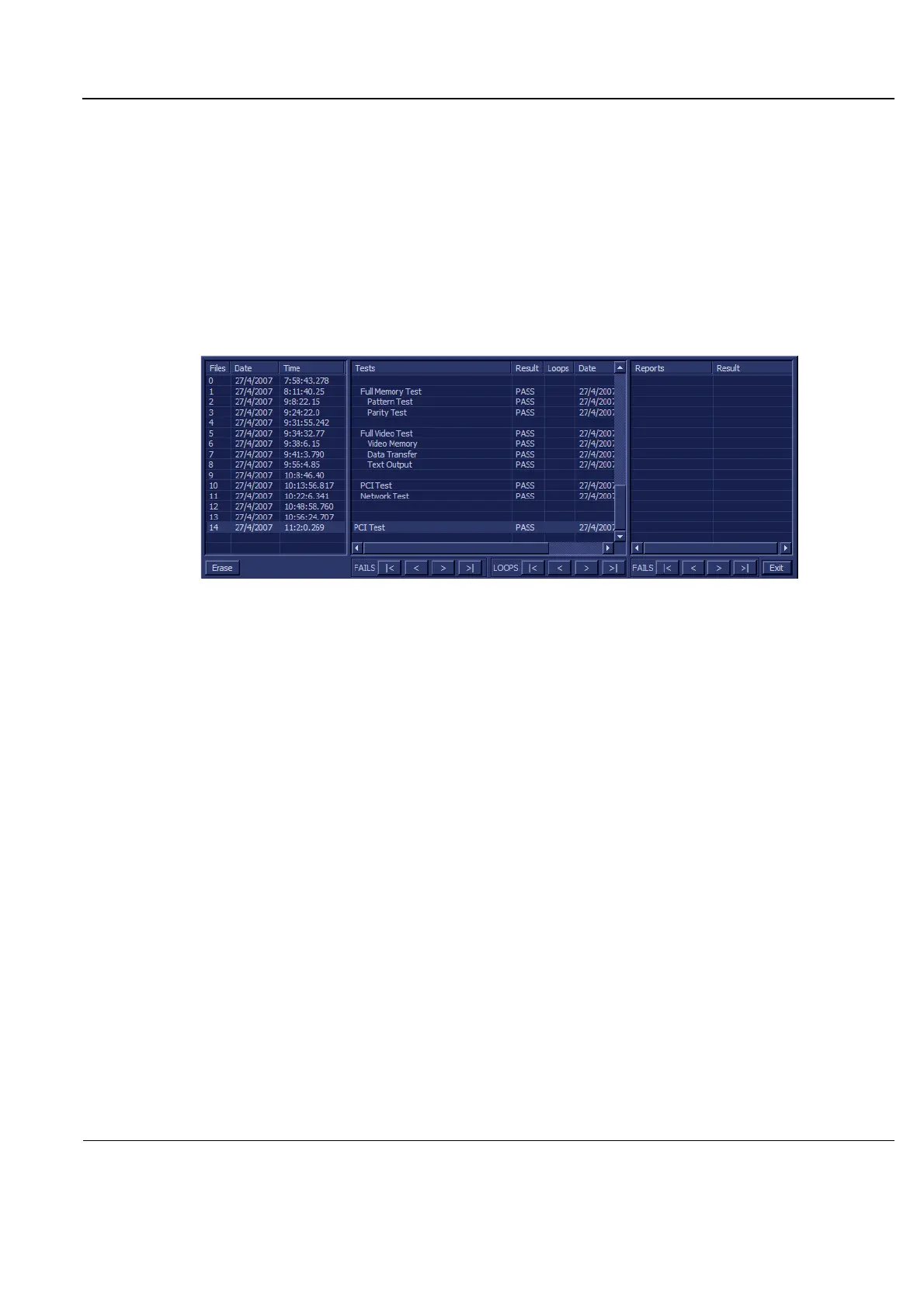

Figure 7-90 View Test Log - PCI Test
