8-96 Section 8-3 - Control Console Components Replacement Procedures
PRELIMINARY
1.) Remove the LCD arm upper cover from the Monitor Arm Assembly (as shown in Figure 8-109) to
expose the LCD cable.
2.) Remove the lower cover from the Monitor Arm Assembly, as shown in Figure 8-110.
3.) Disconnect the GND cable (secured to the centre of the upper arm - see Figure 8-110).
4.) Slide the DVI cable (the thicker, grey cable) - together with the attached ferrite - through the opening
between the axis of the LCD arm and slide it down, as indicated in Figure 8-111.

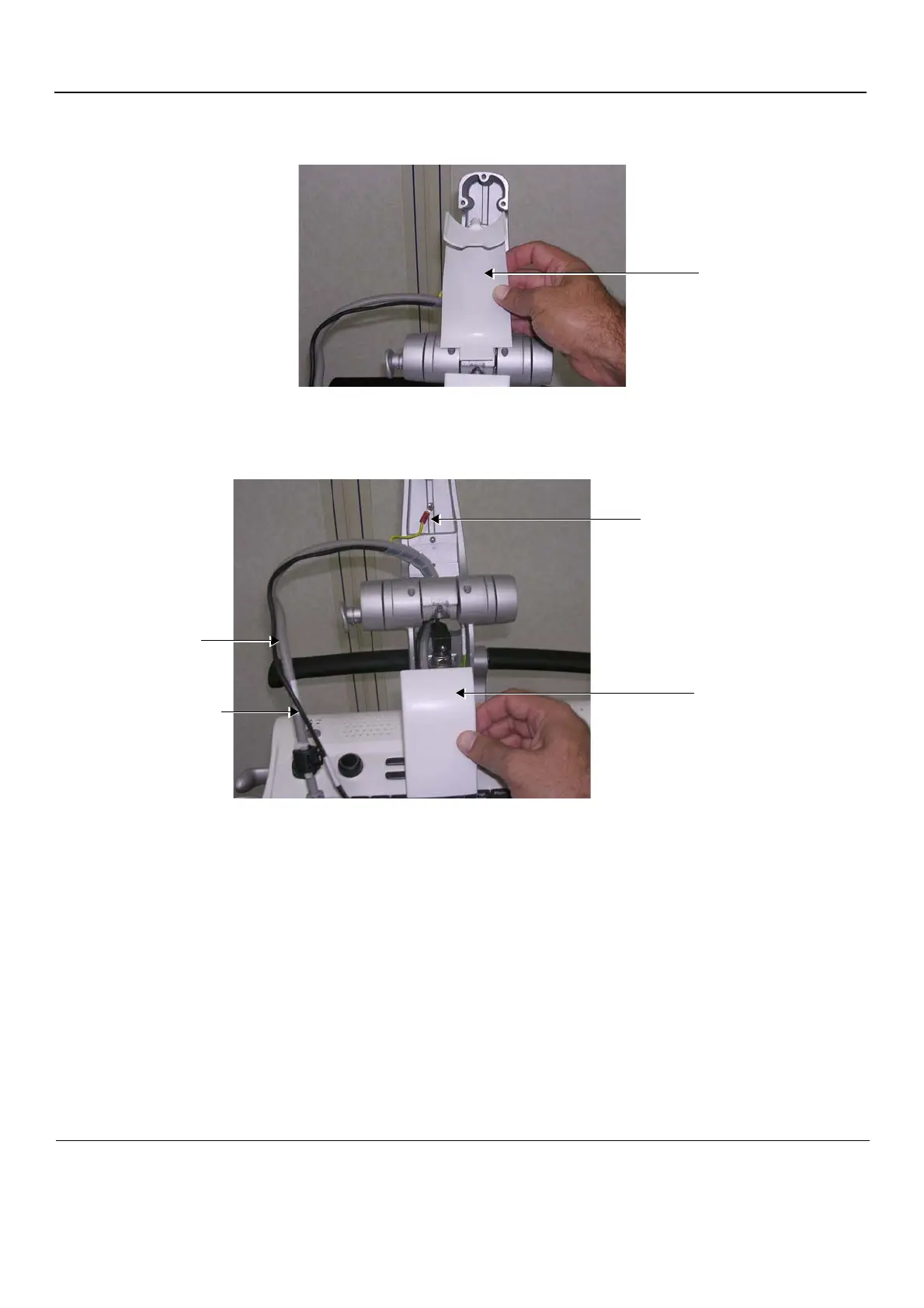

Figure 8-109 Removing the LCD Arm Upper Cover
Figure 8-110 Removing the LCD Arm Lower Cover
Lower Cover
DVI Cable
(with ferrite)
LCD Power Cable
GND Cable
To Next Page
