8-136 Section 8-6 - Lower Section Components Replacement Procedures
PRELIMINARY
8-6-5 BEP Replacement Procedure (cont’d)
8) Proceed to disconnect the following cables from their connectors on the BEP (refer to Figure 8-167):
a.) Disconnect the Fan-to-BEP power cable
b.) Disconnect the RFI-to-BEP Flex cable
c.) Disconnect the DC/DC-to-BEP power cable
d.) Disconnect the USB cable
9) Loosen and remove the three screws that fasten the BEP to the cage assembly (see Figure 8-168).

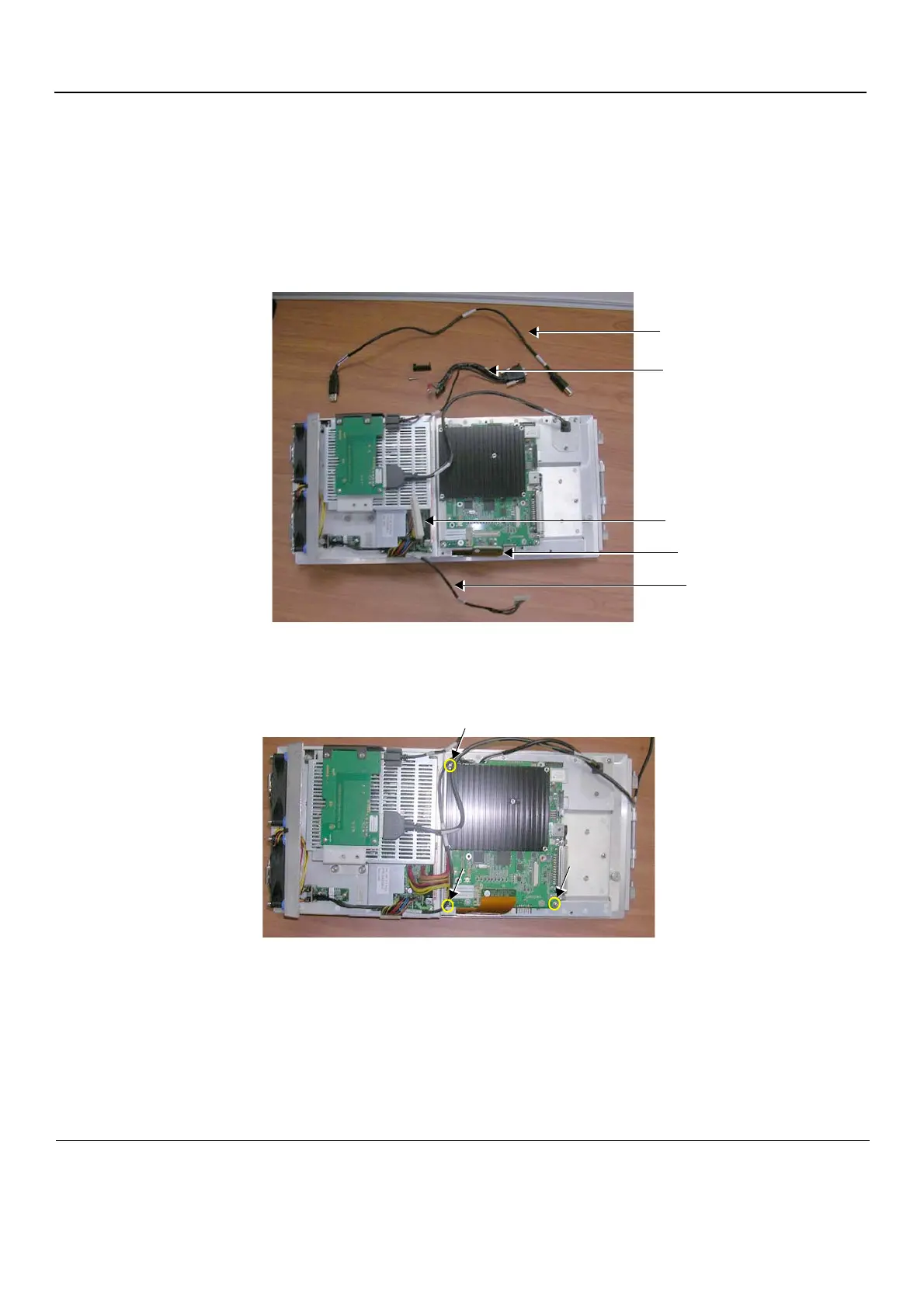

Figure 8-167 Cables Disconnected from the BEP
Figure 8-168 BEP Securing Screws
Fan-to-BEP Cable
RFI-to-BEP Cable
DC/DC-to-BEP Cable
USB Cable
Keyboard Cable
To Next Page
