GE
P
ART NUMBER FN091065, REVISION 2 VS5 N AND VS6 N SERVICE MANUAL
8-168 Section 8-6 - Lower Section Components Replacement Procedures
PRELIMINARY
6.) Release the cable clamps using a T-Handle Hex Wrench (or socket with extension piece) - see
Figure 8-209.
NOTE: Keep the cable clamps for the installation procedure and note the order of removal of the various spring
washers to ensure correct installation when installing the AC Outlet Peripheral Connectors.
7.) Disconnect the ground cables and cut the tie-wraps as shown in Figure 8-210.

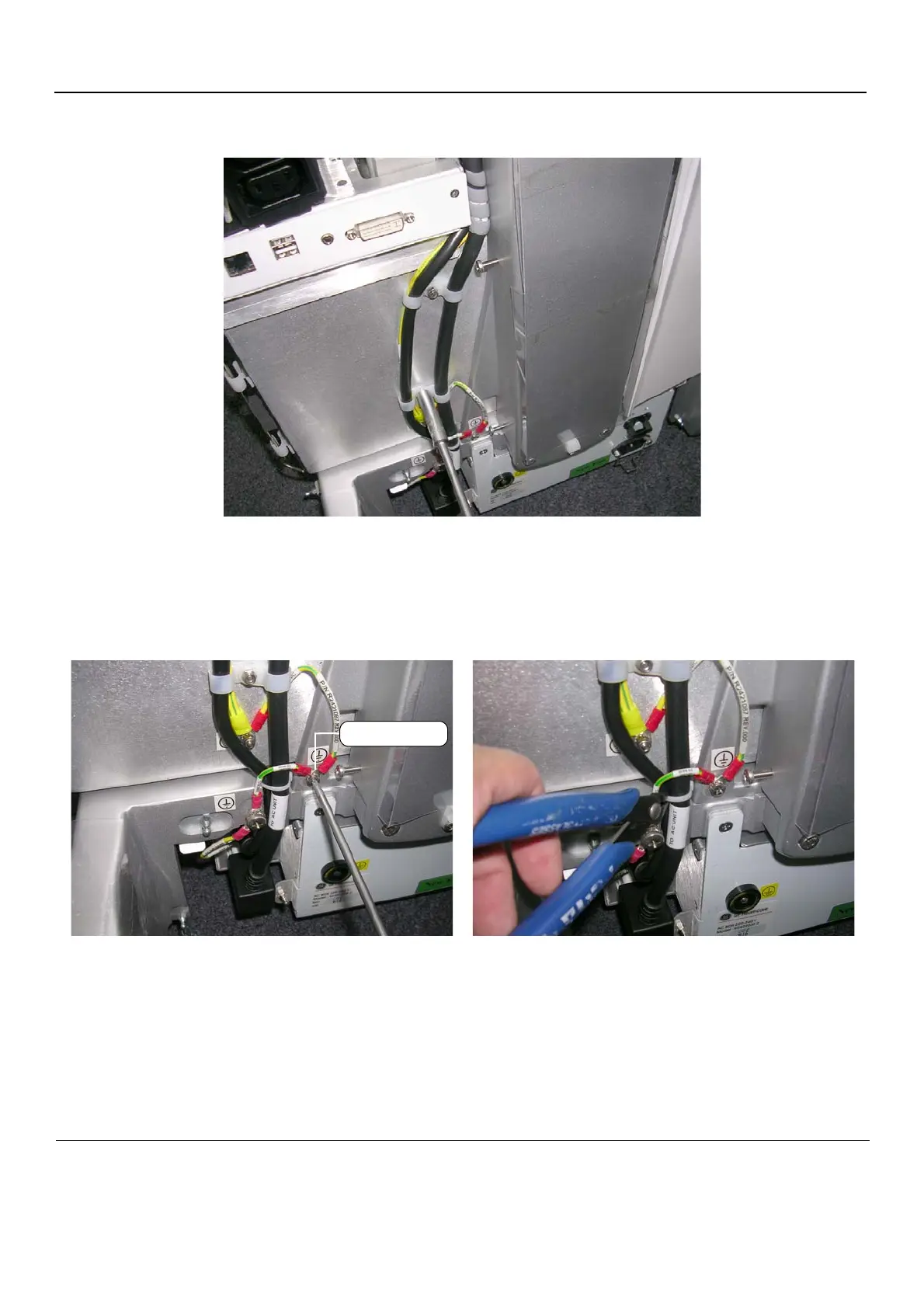

Figure 8-209 Releasing the Cable Clamps
Figure 8-210 Disconnecting Ground Cables and Removing Tie-wraps
