8-206 Section 8-7 - Mechanical Components Replacement Procedures
PRELIMINARY
When moving the system:
Prepare the system as shown in Figure 8-260, with the monitor screen folded downwards.
7.) Turn ON power to the system.
8.) Check for proper up/down and side-to-side movement of the operator panel and monitor, as
described in “Mechanical Functional Tests” on page 4-35.
9.) Proceed to perform the following functionality tests:
- “Arm Movement Test” on page 4-35
- “Grounding Continuity” on page 10-23
- “Chassis Current Leakage Test” on page 10-24

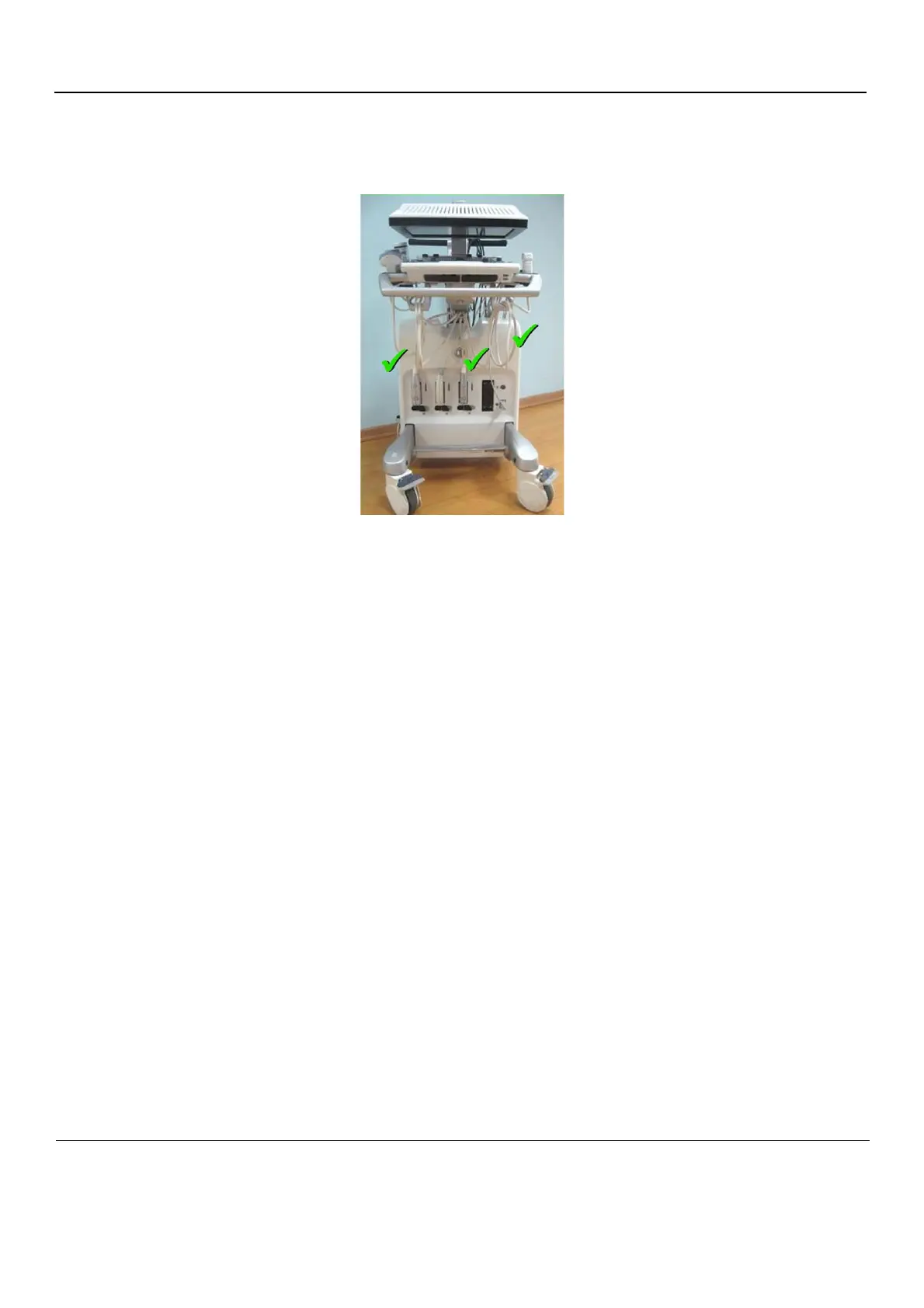

Figure 8-260 Vivid S5 N / Vivid S6 N Scanner and Cables - Ready for Moving
