11.2 Timing Chart
373
11
Chapter 11 External Control
With continuous measurement, if a trigger signal is input from the EXT I/O or is pressed in the
screen, after measurement of all of the panel numbers set to be executed on the screen is finished, the judg-
ment results are output from the signal line for comparator result output of the EXT I/O.
The following provides an example of measurement timing with the sequential trigger setting.
(In the timing examples, the valid edge of the TRIG signal is set to falling (ON).)

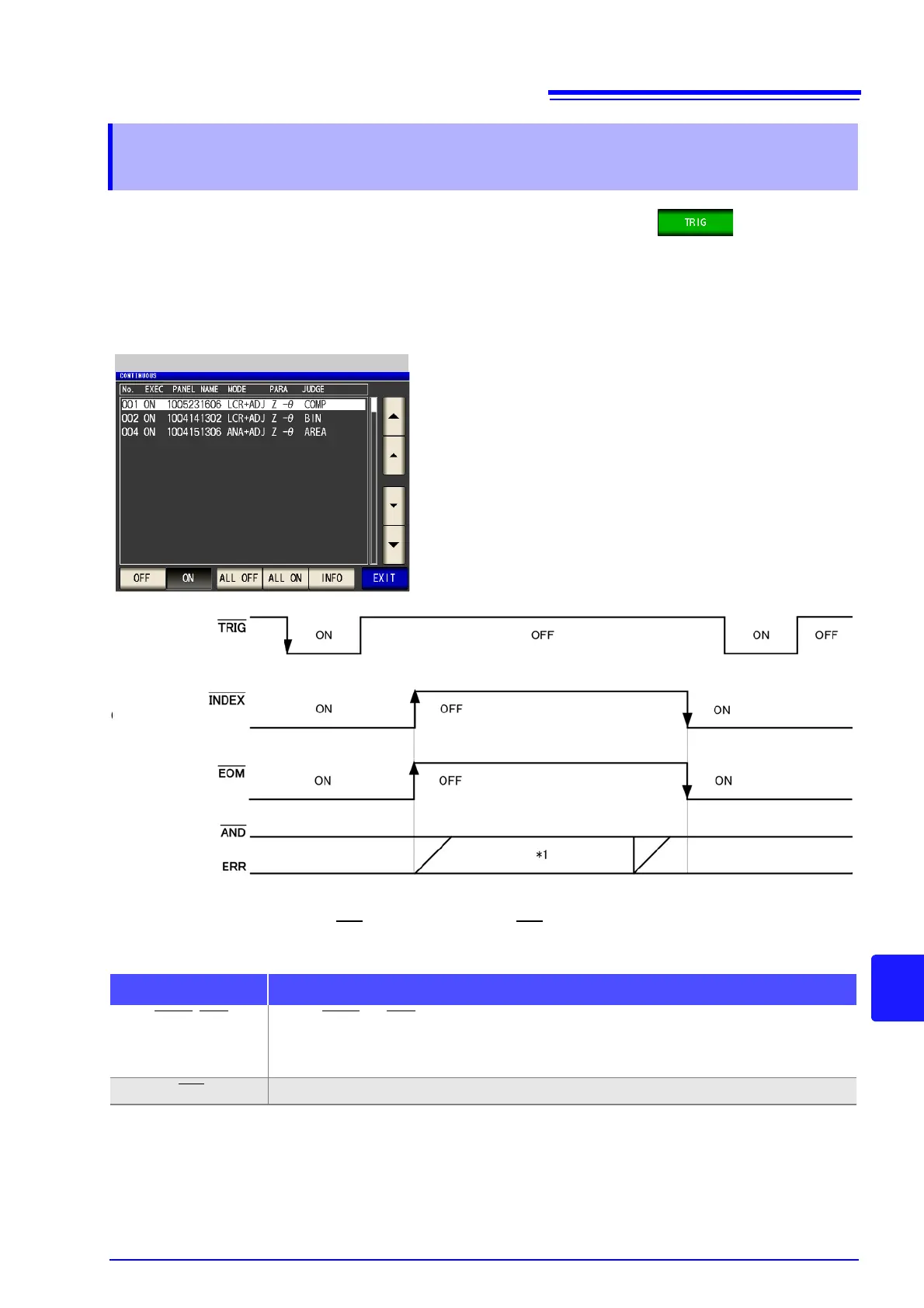

11.2.3 Continuous Measurement
(Sequential Operation)
Continuous measurement Screen
Example: Continuous measurement using panel numbers 1, 2, and 4
(Start-of-measurement signal)
(Analog end of measurement signal)
(End of measurement signal)
(Comparator result output)
Last judgment result
Judgment result
*1: Reset at the same time as analog measurement starts.: HIGH
Not reset at the same time as analog measurement starts.: When measurement of the first panel number
completes, AND
will transition to HIGH, and ERR will transition to HIGH (if no error) or LOW (if error).
(Error output)
Signal line Description
INDEX, EOM For both INDEX and EOM, a transition to HIGH is performed when the first panel measurement starts after
the trigger signal is input, and a transition to LOW is performed after measurement of the last panel is fin-
ished and the judgment result has been output.
(The HIGH level is maintained during continuous measurement.)
AND When the judgment results of all panels are IN, LOW is output.
To Next Page
