The delay time period from input of the trigger signal to reading of the test data can be set. With this function it
is possible to ensure that testing is started after the connection condition of the object being tested and the
test cables has stabilized.
4.2.9 Measuring at Desired Time (Trigger Delay)

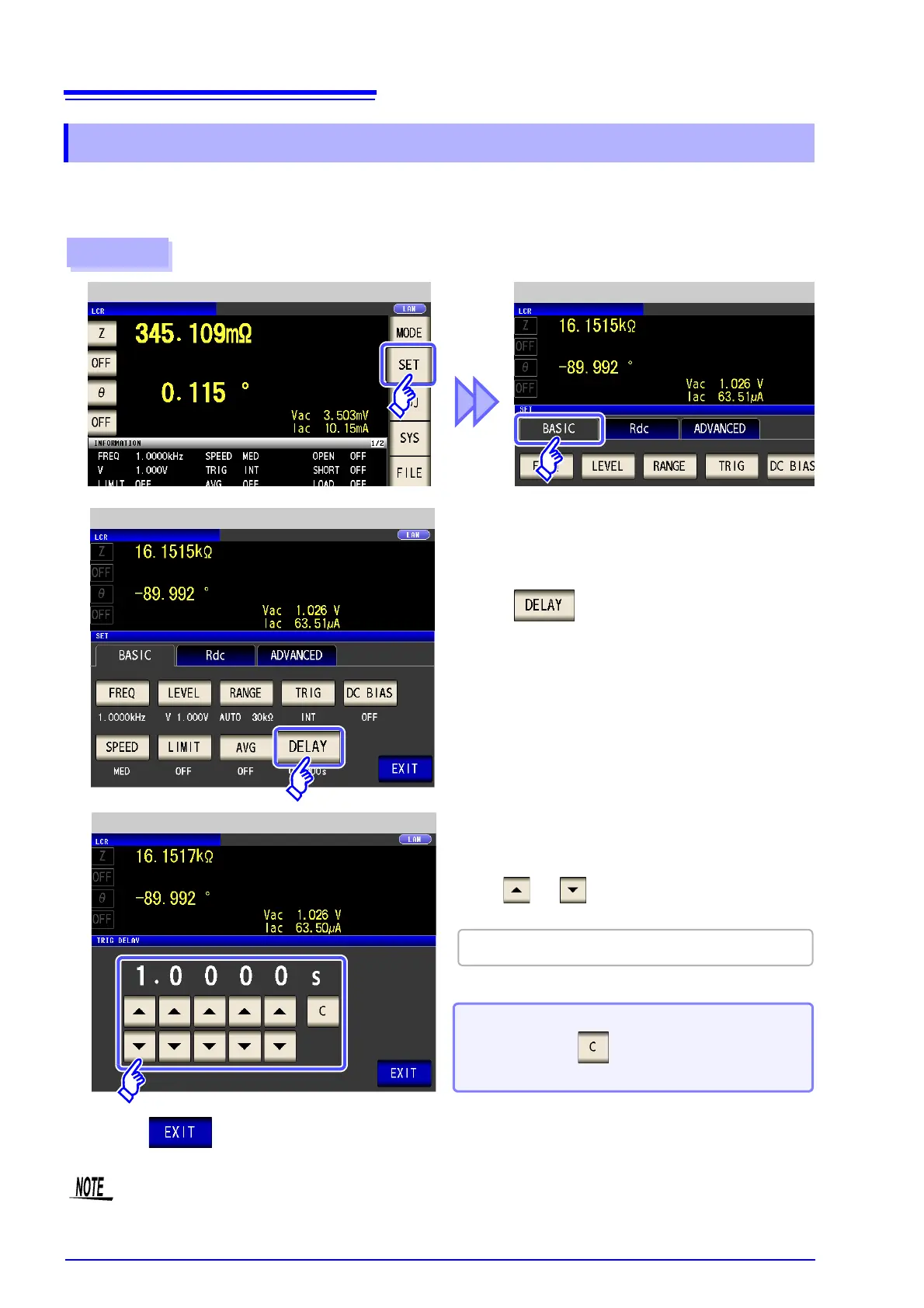

Procedure
LCR Initial Screen
1
LCR Basic Settings
Use or to enter the delay time.
4
3
Press to close the setting screen.
Settable range: 0 to 9.9999 s with resolution of 0.1 ms
Trigger Delay Setting
When you want to cancel the trigger delay
function: Press .
The set time is set to 0 s.
Press .
2
LCR Basic Settings
When trigger delay is used, the LED for indicating that measurement is in progress is lit from when
the trigger is input until measurement ends.
