4.2 Setting Basic Settings of Measurement Conditions
49
4
Chapter 4 LCR Function
There are the following two methods for setting the measurement range.
4.2.3 Setting the Measurement Range
The ranges are all defined in terms of impedance. Therefore, for a parameter other than
impedance, the value is obtained by calculating from the measured values of |Z| and .
See "Appendix 1 Measurement Parameters and Arithmetic Expressions"(p. A1)
1
Setting AUTO Ranging
AUTO
The most suitable test range is set automatically.
(This allows the most suitable measurement range to be set when measuring, for
example, a test sample whose impedance varies greatly with frequency or a test
sample whose nature is unknown.)
HOLD
The test range is fixed, and may only be altered manually.
(When the range is fixed, high-speed measurement is possible.)

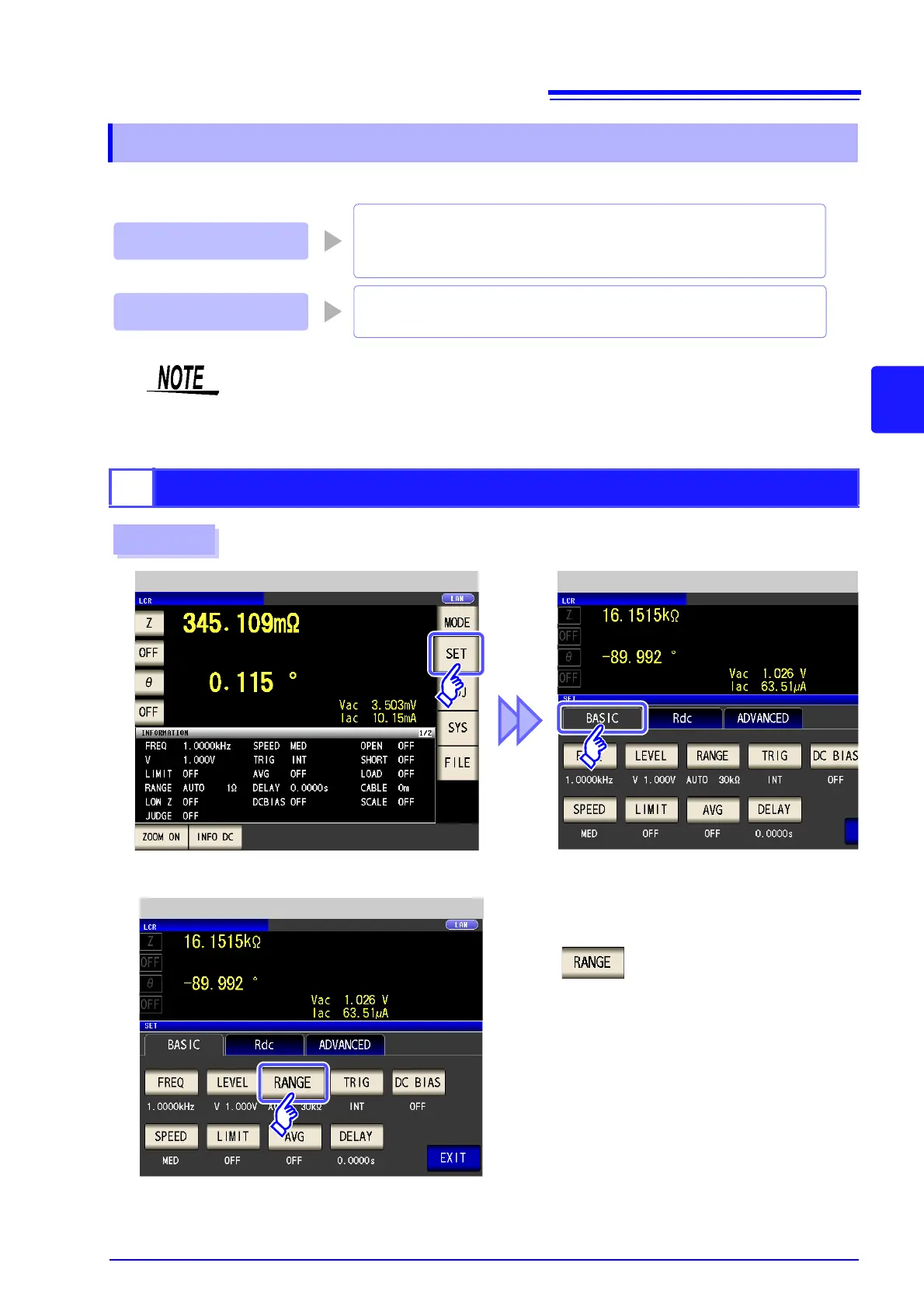

LCR Initial Screen
Press .
2
1
LCR Basic Settings
LCR Basic Settings
Procedure
