7.2 Short Circuit Compensation
285
7
Chapter 7 Error Compensation
Acquire the compensation values at the set measurement frequencies. Measurement frequencies can be set
for up to five points.
7.2.2 Spot Compensation
Procedure

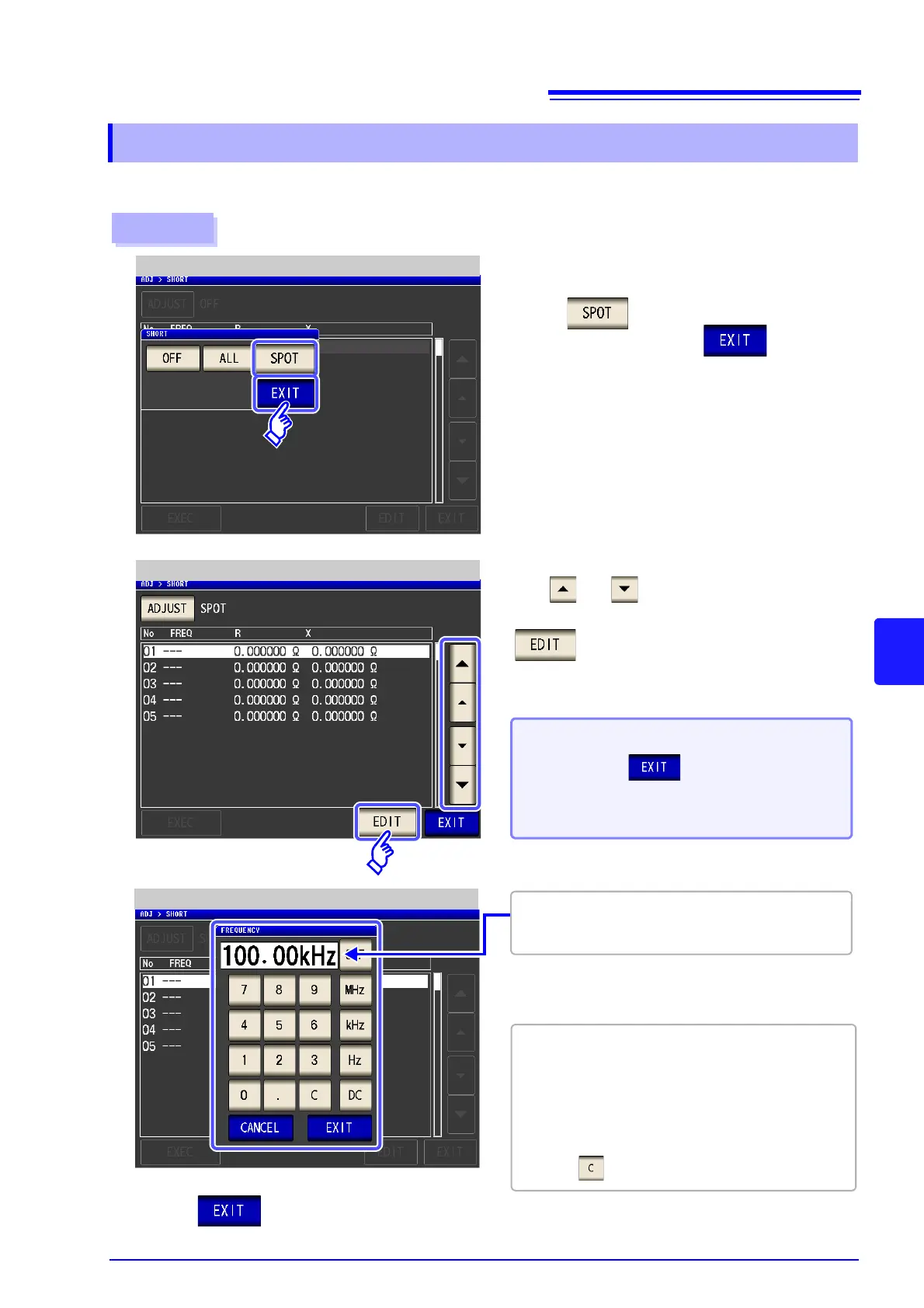

1
Press to confirm the frequency for compensation.
Select in the short circuit compen-
sation screen, and press to confirm
the selection.
3
4
Short Compensation Setting
Spot Compensation Value Setting
2
Spot Compensation
Until one of these keys is pressed for input of a nu-
merical value, the previous frequency for which SPOT
compensation was performed is displayed.
Use or to select the compensation
point you want to set or edit, and then press
.
• Settable range: DC, 4 Hz to 5.000 MHz
• If a value in excess of 5 MHz is entered, the
measurement frequency will automatically set to
5 MHz.
• If a value less than 4 Hz is entered, the measure-
ment frequency will automatically set to 4 Hz.
• If you make a mistake during input:
press to cancel the input and start again.
Use the numeric keypad to enter a frequency
for compensation.
When you do not want to perform compen-
sation: Press .
Compensation is not performed and the compensa-
tion screen is redisplayed.
