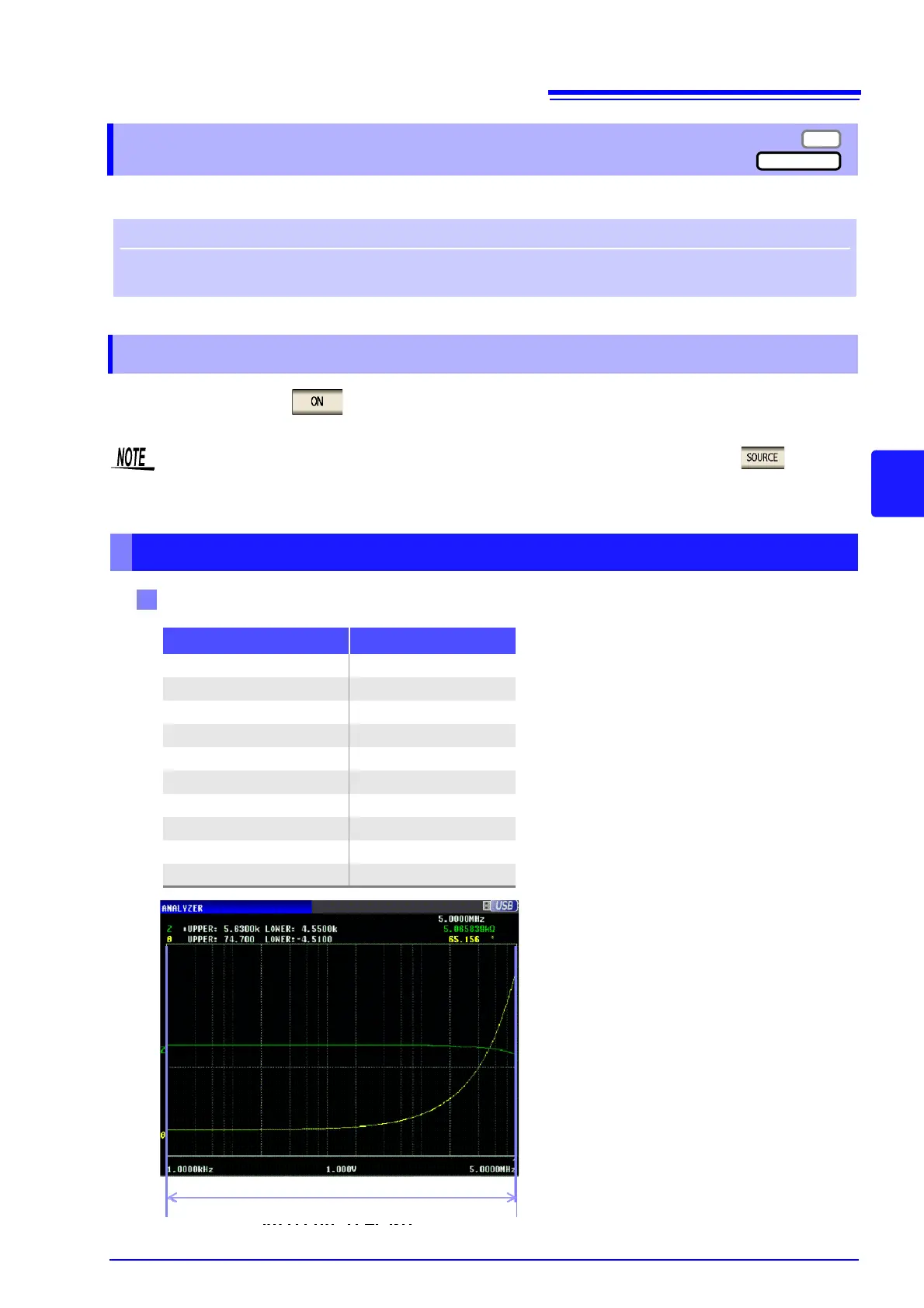

5.4 Segment Sweep
169
5
Chapter 5 ANALYZER Function
You can set multiple sweep ranges (up to 20) for the frequency or level and perform the sweep continuously.
Set the segment settings beforehand in "5.2.6 Segment Setting" (p. 142).
You can set up to 20 segments (total of 801 points).
5.4 Segment Sweep
LCR
ANALYZER
5.4.1 Select Segments
Comparison of Normal Sweep and Segment Sweep
What is a Segment?
A segment refers to one block for which individual settings such as the sweep range, number of sweep
points, and measurement signal level can be set.
• The sweep range setting differs depending on the setting of the sweep parameter ( ). (p. 135)
• If a segment is edited (including with ADD and DELETE) or the sweep points are edited, the com-
parator setting becomes invalid. (p. 197)
Sweep Setting Items Segment
Sweep parameter Frequency
Sweep Range 1.0000 kHz to 5.0000 MHz
Number of sweep point 801 points
Setting method of sweep points Log
Measurement signal type Open circuit voltage level
Measurement signal level 1.000 V
Range AUTO
Average 5 times
Measurement speed FAST
Point delay 0.0005 s
When normal sweep
Normal Sweep Range
