4.4 Judging Measurement Results
93
4
Chapter 4 LCR Function

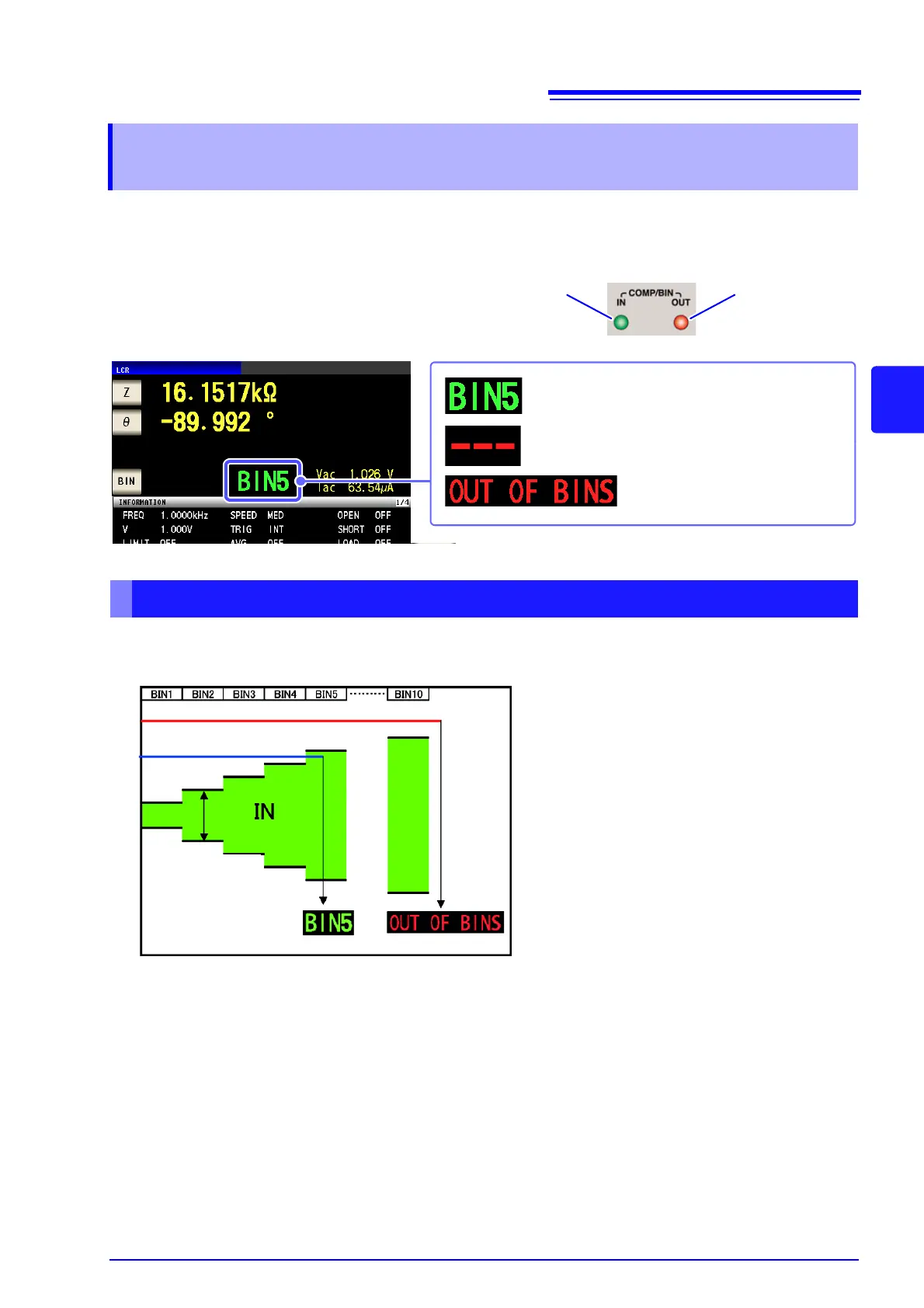

Set the upper and lower limit values for two parameters and display up to 10 classifications of judgment
results.You can also output the judgment results to an external device.
Perform judgment in the order of BIN1 to BIN10. The BIN number for when a measurement value is first
judged to be within the set judgment reference is displayed.
In the example above, measurement value A is judged not to be within all of the set judgment references,
so OUT OF BINS is displayed. In contrast, the first reference that measurement value B is judged to be
within is the judgment reference that was set for BIN5, so BIN 5 is displayed.
4.4.2 Classifying Measurement Results
(BIN Measurement)
About BIN function
Select the judgment mode for BIN measurement
before setting the judgment conditions. (p. 84)
(When the measurement result is
within the BIN classification range)
(Front panel LEDs)
Lights red
(When the measure-
ment result is OUT-
OF-BINS)
Lights green
When BIN judgment
When BIN is not set
When does not match any BIN
Judgment reference
Measurement value B
Measurement value A
