4.5 Setting Application Settings
110
Measurement waveform errors that occur when the test sample and instrument contact each other can be
detected by monitoring the voltage effective value and current effective value.
The voltage effective value and current effective value are calculated several times during analog measure-
ment.
The effective value of each of the voltage and current that is calculated the first time is treated as the refer-
ence value, and then following calculation expression is used to calculate the
% value for the voltage effec-
tive value and current effective value calculated for the second and subsequent times.
An error is detected when
% exceeds the set limit value.
4.5.4 Monitoring the Detection Level
(Monitoring the Detection Level Function)
% =
(Effective value - reference value)
reference value
×100[%]

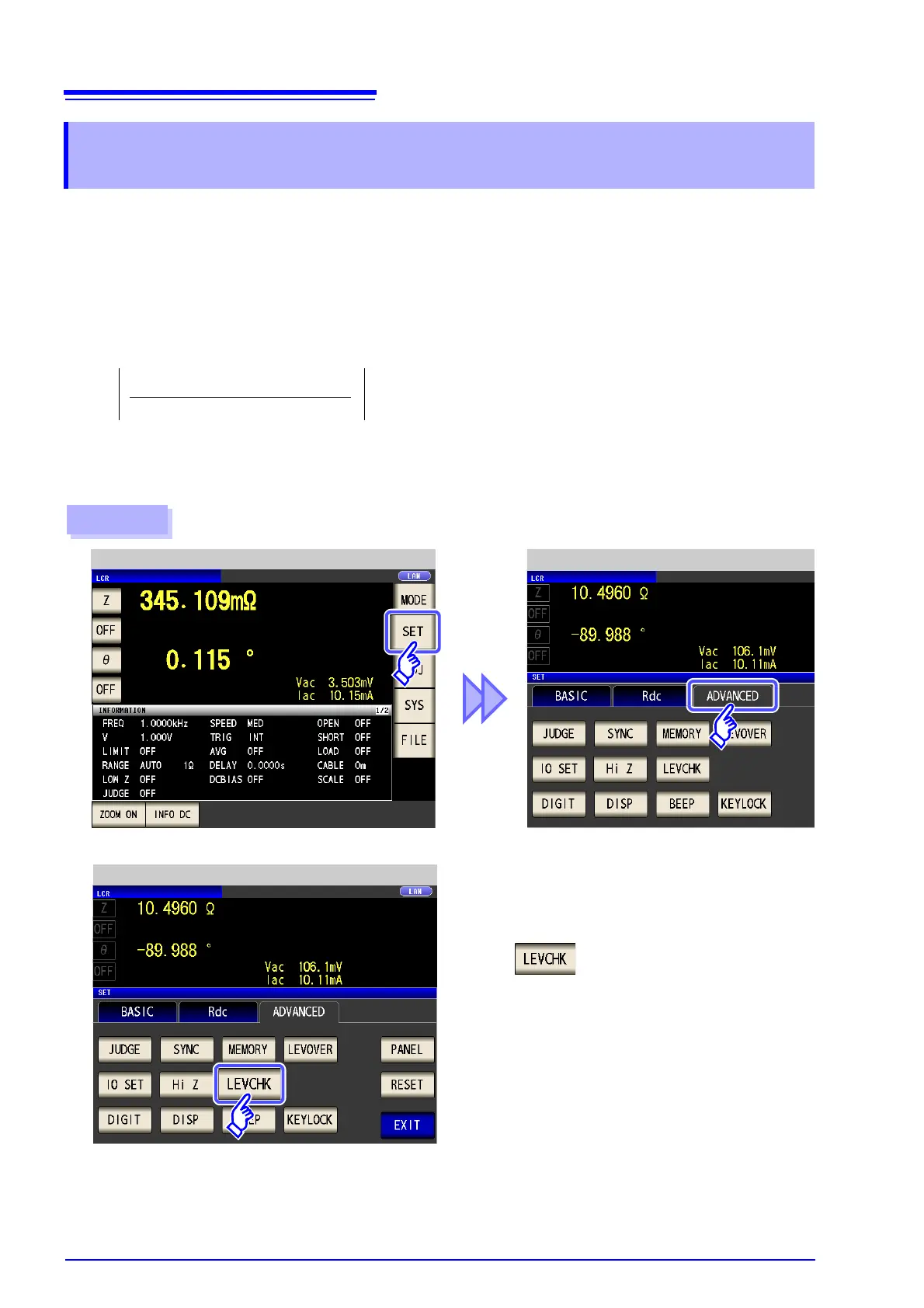

Procedure
LCR Initial Screen
Press .
2
Application Settings
Application Settings
1
