4.1 About LCR function
38
This is the screen that is first displayed when the power is turned on. It allows you to perform measurement
while checking the measurement conditions.
When the power is turned on again, display is in accordance with the measurement mode used immediately
before the power was turned off.
For details on the screen configuration. (p. 14)

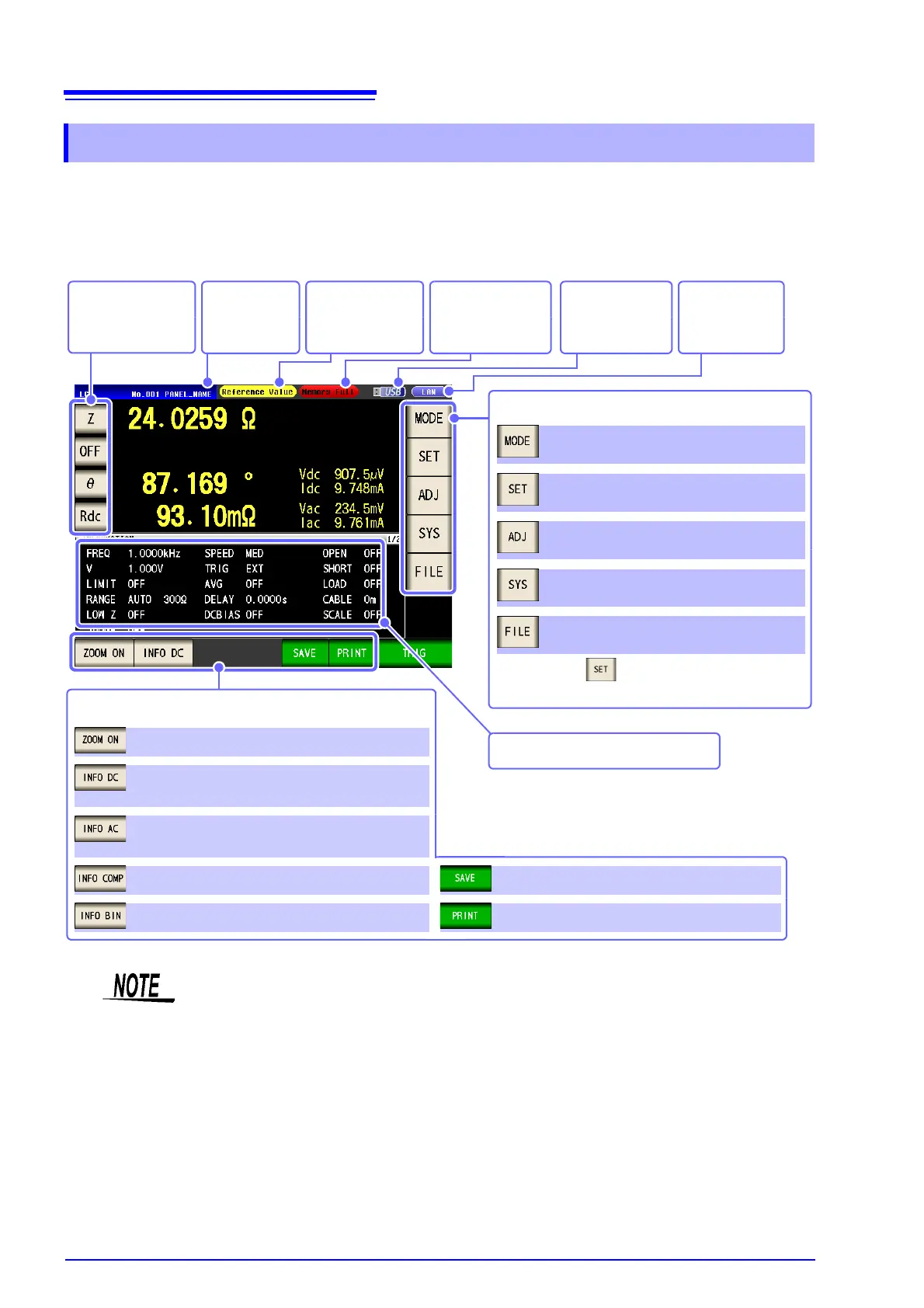

4.1.1 Initial screen
The settings of differ depending on the measure-
ment mode.
Menu keys
Select the measurement mode.(p. 13)
Set the details.(p. 41)
Set the compensation. (p. 273)
Set the system. (p. 305)
Set the save settings. (p. 329)
An operation key is displayed depend-
ing on the situation.
Enlarges the screen. (p. 126)
Operation keys
Displays the measurement conditions for DC
measurement.
Saves the measurement data. (p. 333)
Prints the measurement data. (p. 381)
Displays the comparator settings.
Displays the BIN settings.
Displays the measurement conditions for AC
measurement.
A measurement condition is displayed.
Indicates the
name of the
loaded panel.
Parameter keys
Set each parameter.
(p. 39)
Indicates the
interface that is
currently set.
Indicates that a
USB flash drive is
connected.
(p. 329)
Indicates the usage
status of internal
memory.(p. 106)
Indicates error
messages and
other information.
When a measurement value is outside the guaranteed accuracy range, “Reference Value” is dis-
played in the error display area. When this happens, the cause is likely to be one of the following.
Check the guaranteed accuracy range in "13.2 Measurement Range and Accuracy" (p.
395) and change the measurement conditions or you should consider the measured values
as values for reference.
• Perhaps the test signal level is too low, increase the test signal level.
• If the current measurement range (during HOLD setting) is not appropriate, set again in the AUTO
range, or change the range by manual.
To Next Page
