4.2 Setting Basic Settings of Measurement Conditions

51

4

Chapter 4 LCR Function

2

Setting the Ranging to HOLD

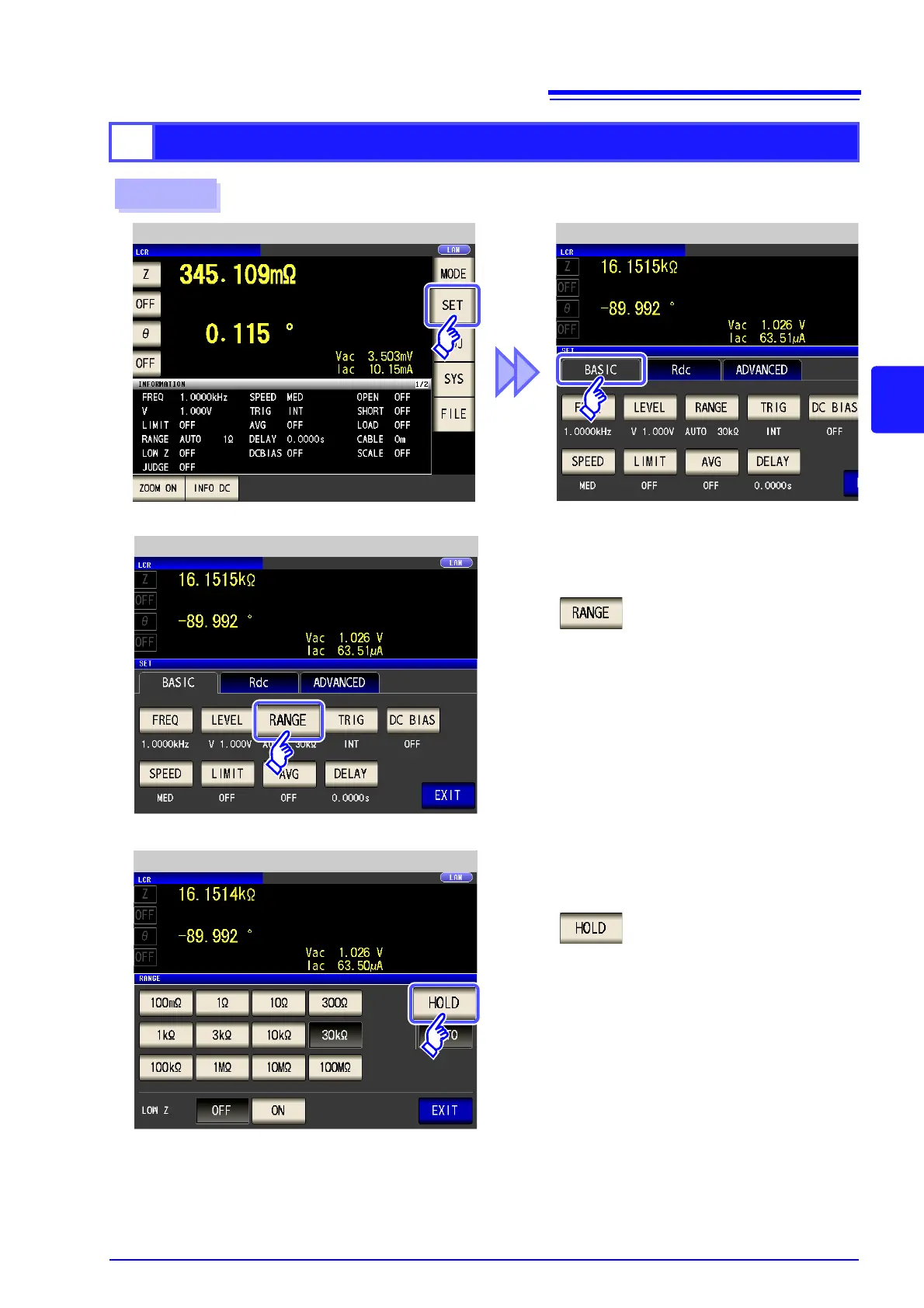

Procedure

2

Press .

LCR Initial Screen LCR Basic Settings

LCR Basic Settings

1

3

Range Setting

Press .
