5.5 Setting the Graph Display Method
176
When sweep measurement is to be performed repeatedly, set the graph draw method.
If you set overwrite, you can check the variations of the element in a graph.
5.5 Setting the Graph Display Method
LCR
ANALYZER
5.5.1 Setting the Horizontal Axis
1
Overwrite Setting

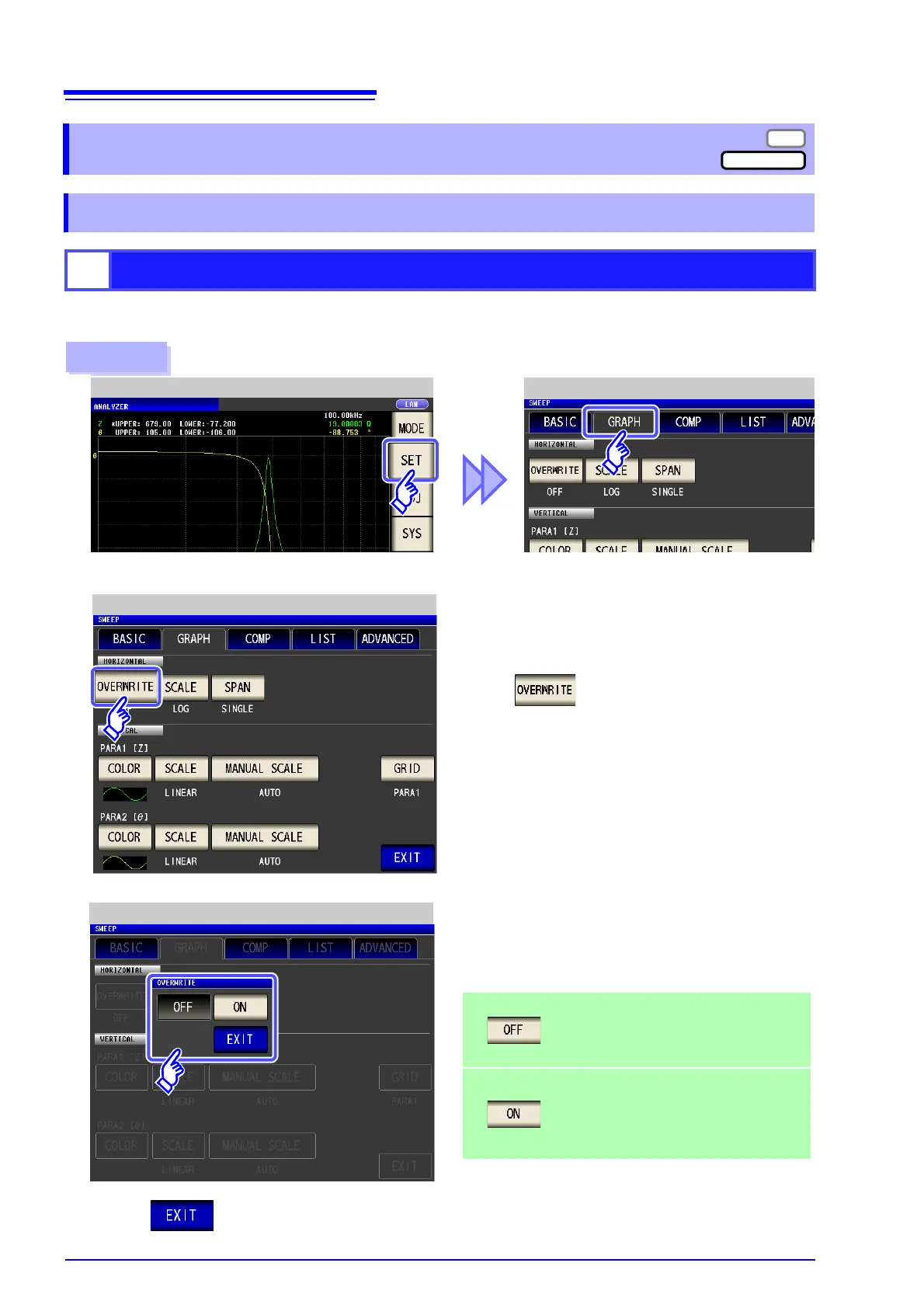

Procedure
Analyzer Initial Screen
4
Press to close the setting screen.
3
Press .
2
Graph Settings
Graph Settings
Overwrite Setting
Select the overwrite setting.
When sweep measurement is performed re-
peatedly, the graph drawn for the last mea-
surement is deleted and a graph for the most
recent measurement results is drawn.
When sweep measurement is performed re-
peatedly, the graph drawn for the last mea-
surement remains and is overwritten with a
graph for the most recent measurement re-
sults.
1
