The higher the measurement frequency, the shorter the time that INDEX and EOM are high (off). When the
high (off) time is too short due to characteristics of the input circuit, the instrument can be configured to main-
tain the low (on) state for a preset time once EOM
changes to low (on) before reverting the signal to high (off)
after the completion of measurement. The INDEX
output method can be changed in the same manner.
See "Chapter 11 External Control" (p. 363)
5.9.6 Setting the EOM Output Method
4

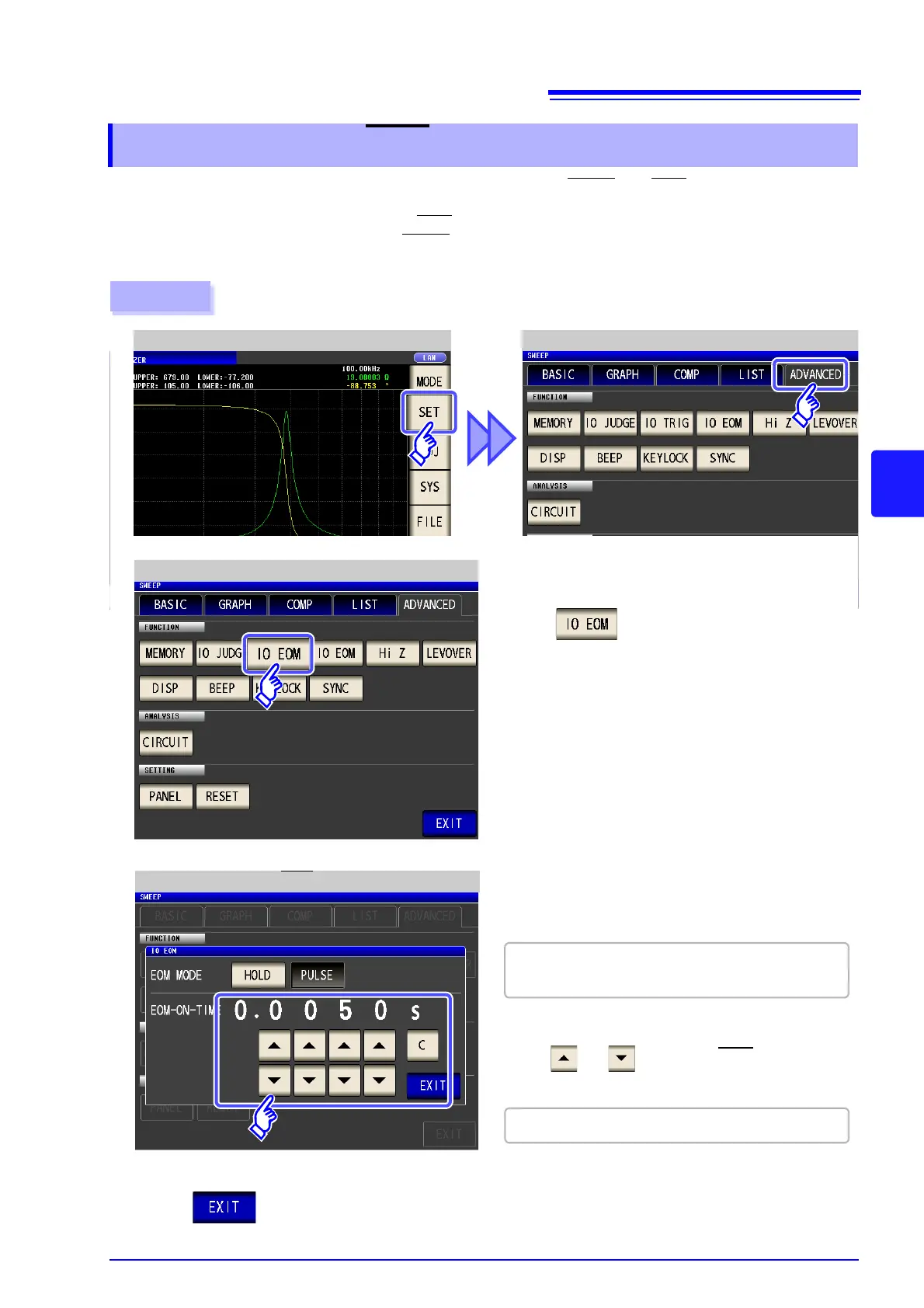

Procedure
Application Settings
1
Analyzer Initial Screen
Press .
2
Application Settings
3
Setting the EOM output method
Press to close the setting screen.
Setting the output method.
Settable range: 0.0001 to 0.9999 s
For HOLD and PULSE timing charts, see "Chapter
11 External Control" (p. 363).
Use or to set the EOM output time
for the PULSE setting.
