5.3 Normal Sweep
157
5
Chapter 5 ANALYZER Function
For the measurement signal setting, either the measurement frequency or measurement signal level can be set
as a measurement signal other than the sweep parameter, depending on the setting of the sweep parameter.
5.3.2 Setting the Measurement Signal
Open circuit Voltage Sweep
Constant Voltage Sweep
Constant Current Sweep
Frequency Sweep
You can set the measurement voltage or measurement current.
You can set the measurement frequency.
2
When Frequency Sweep
When Open-circuit Voltage Sweep, Constant Voltage
Sweep, & Constant Current Sweep

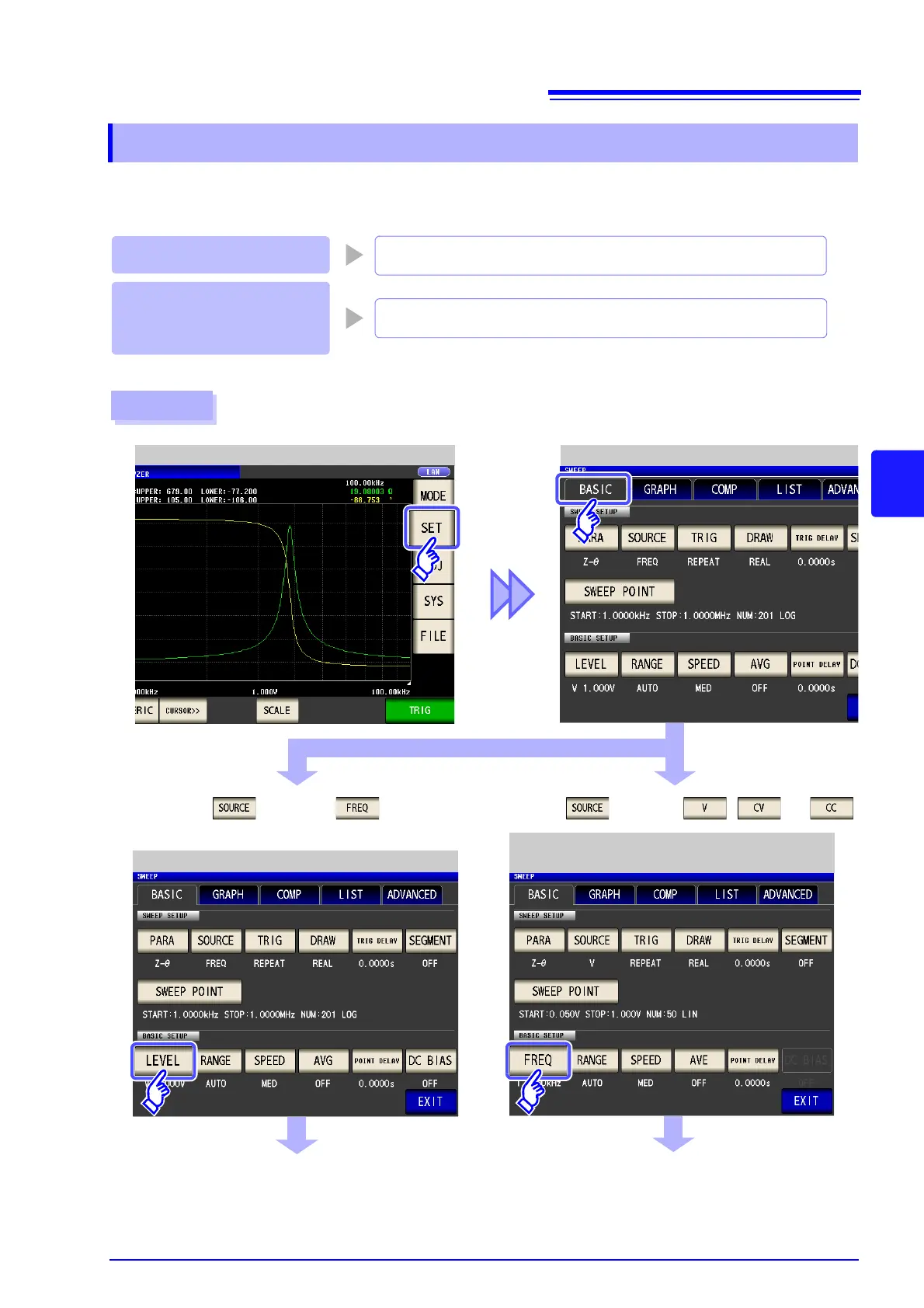

Analyzer Initial Screen Analyzer Basic Settings
1
When the setting is , , or When the setting is
Procedure
