5.5 Setting the Graph Display Method
179
5
Chapter 5 ANALYZER Function
The span can only be set for segment sweep.
With this instrument, you can select single span mode and segment span mode.
3
Span Setting
Single Span Mode
Draws the measurement result for each segment on the same hori-
zontal axis.
Segment Span Mode
Draws a graph for each segment.

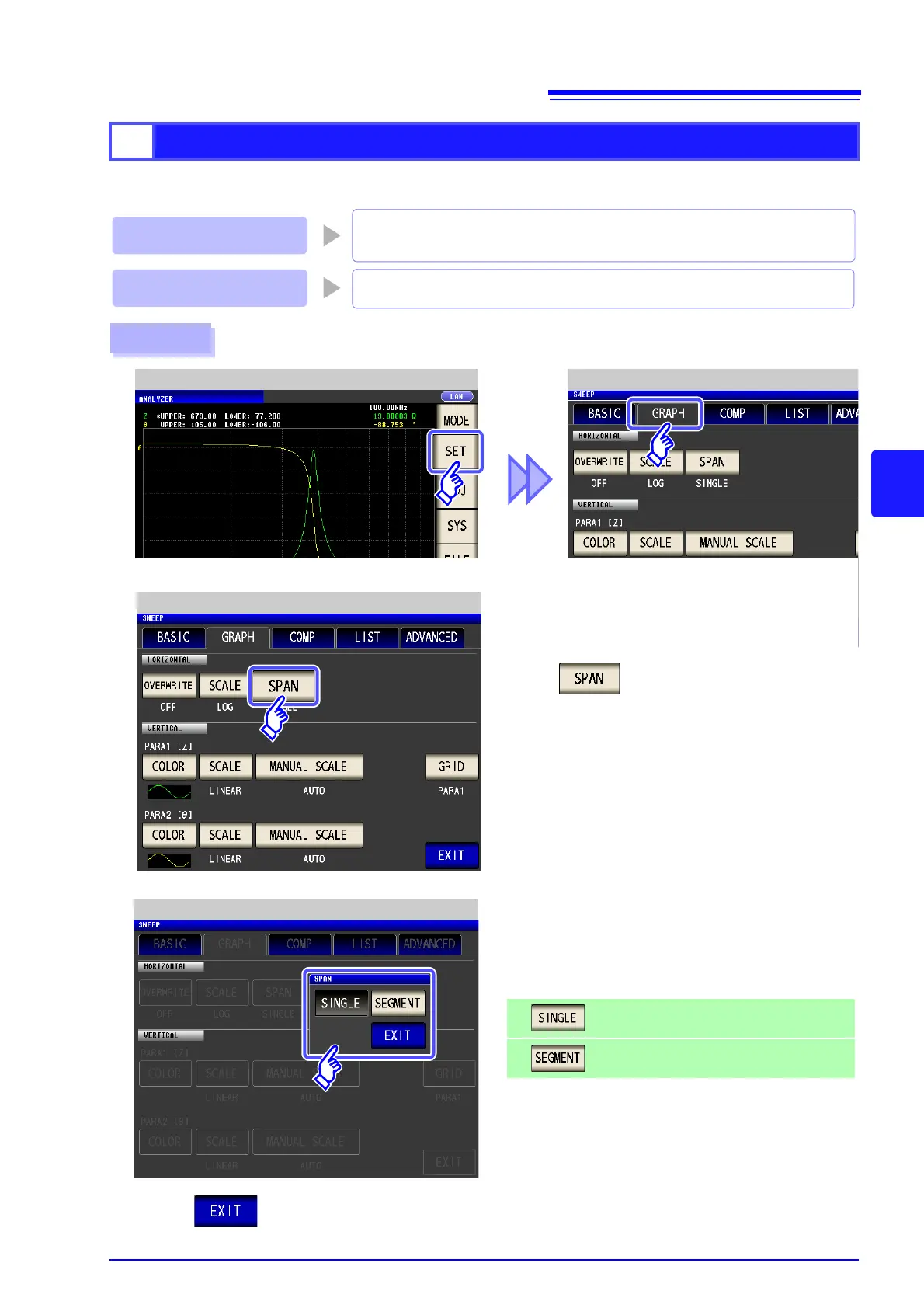

Procedure
Analyzer Initial Screen
4
Press to close the setting screen.
3
Press .
2
Graph Settings
Graph Settings
Span Mode Setting
Select the span mode.
Sets single span mode.
Sets segment span mode.
