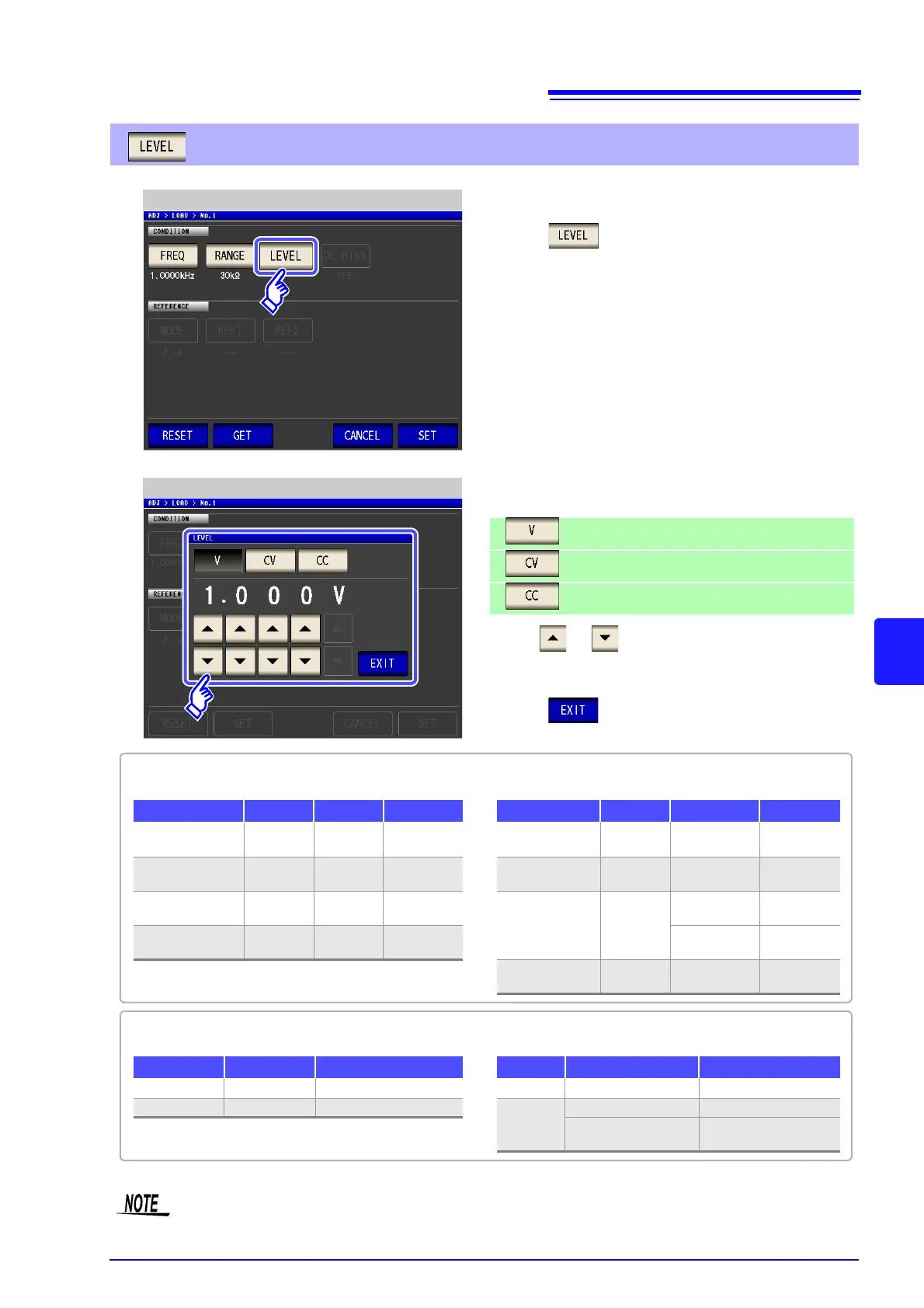

7.3 Compensating Values to Match Reference Values (Load Compensation)
295
7
Chapter 7 Error Compensation
Setting the Type and Value of the Compensation Level
2. Select the compensation level type.
Open voltage level (p. 45)
Voltage level between test sample terminals (p. 45)
Current level between test sample terminals (p. 47)
Level Setting
3. Use or to enter the voltage or current value.
For the possible compensation setting ranges, see the
following figures.
4. Press to close the setting screen.
Level Setting
1. Press .
V, CV
Frequency LOW Z Range V, CV
4.00 Hz to
1.0000 MHz
OFF
Entire
range
0.005 to
5.000 V
1.0001 MHz to
5.0000 MHz
OFF
Entire
range
0.010 to
1.000 V
4.00 Hz to
1.0000 MHz
ON
Entire
range
0.005 to
1.000 V
1.0001 MHz to
5.0000 MHz
ON
Entire
range
0.010 to
1.000 V
AC Load Compensation
CC
Frequency LOW Z Range CC
4.00 Hz to
1.0000 MHz
OFF Entire range
0.01 m to
50.00 mA
1.0001 MHz to
5.0000 MHz
OFF Entire range
0.01 m to
10.00 mA
4.00 Hz to
100.00 kHz
ON
100 m, 1 
0.01 m to
100.00 mA
Range of
10  or more.
0.01 m to
10.00 mA
100.01 kHz to
5.0000 MHz
ON Entire range
0.01 m to
10.00 mA
V, CV
LOW Z Range V, CV
OFF Entire range 0.1 V to 2.50 V
ON Entire range 0.1 V to 1.00 V
DC Load Compensation
CC
LOW Z Range CC
OFF Entire range 0.01 m to 25.00 mA
ON
100 m, 1  0.01 m to 100.00 mA
Range of 10 
or more.
0.01 m to 25.00 mA
If the compensation range is not set, the compensation level cannot be set.
