4.2 Setting Basic Settings of Measurement Conditions
47
4
Chapter 4 LCR Function
• When normal mode (p. 54)
However, the constant current operation range differs depending on the test sample to be measured.
• When Low Z high accuracy mode (p. 54)
However, the constant current operation range differs depending on the test sample to be measured.

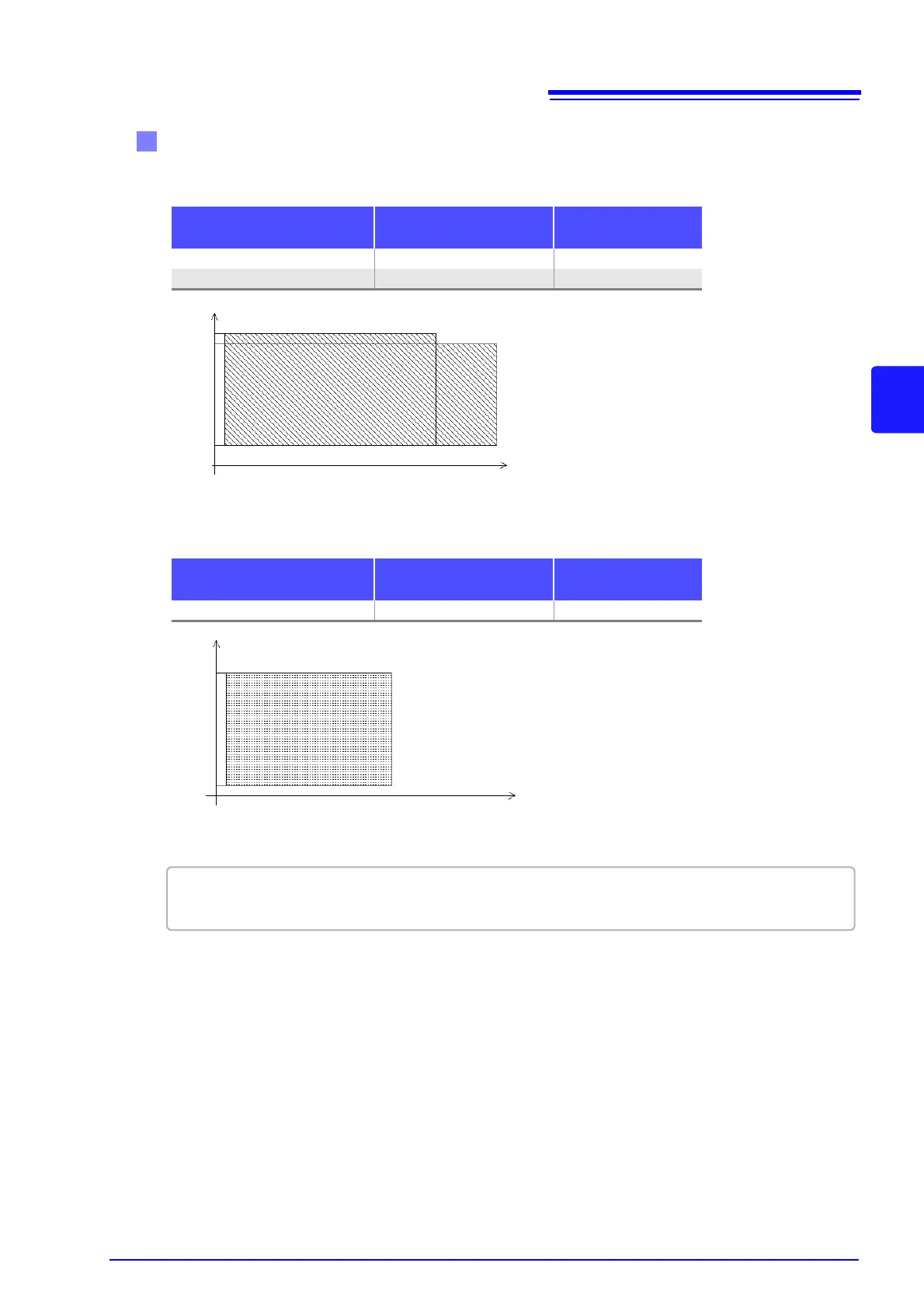

Constant current level (CC) setting
Measurement frequency
setting range
Constant current
setting range
Constant current
accuracy
4 Hz to 1.000 MHz 0.01 mA to 50 mA ±10%±10 A
1.0001 MHz to 5.000 MHz 0.01 mA to 10 mA ±20%±10 A
0.010 mA
50.00 mA
10.00 mA
4 Hz 5 MHz1 MHz
Measurement frequency
setting range
Constant current setting
range
Constant current
accuracy
4 Hz to 100 kHz 0.01 mA to 100.00 mA ±10%±10 A
0.010 mA
100.00 mA
4 Hz 5 MHz100 kHz
• The constant current that can be set differs depending on the frequency.
• When the test frequency is higher than 1 MHz at an constant current of more than 10 mA, the current is
automatically set to 10 mA.
