1.3 Screen Configuration and Operation
25
1
Chapter 1 Overview
This screen is for selecting the measurement parameters to display.
See "4.1.2 Setting Display Parameters" (p. 39), "Appendix 7 Series Equivalent Circuit Mode and Parallel Equivalent Circuit Mode"(p. A11)

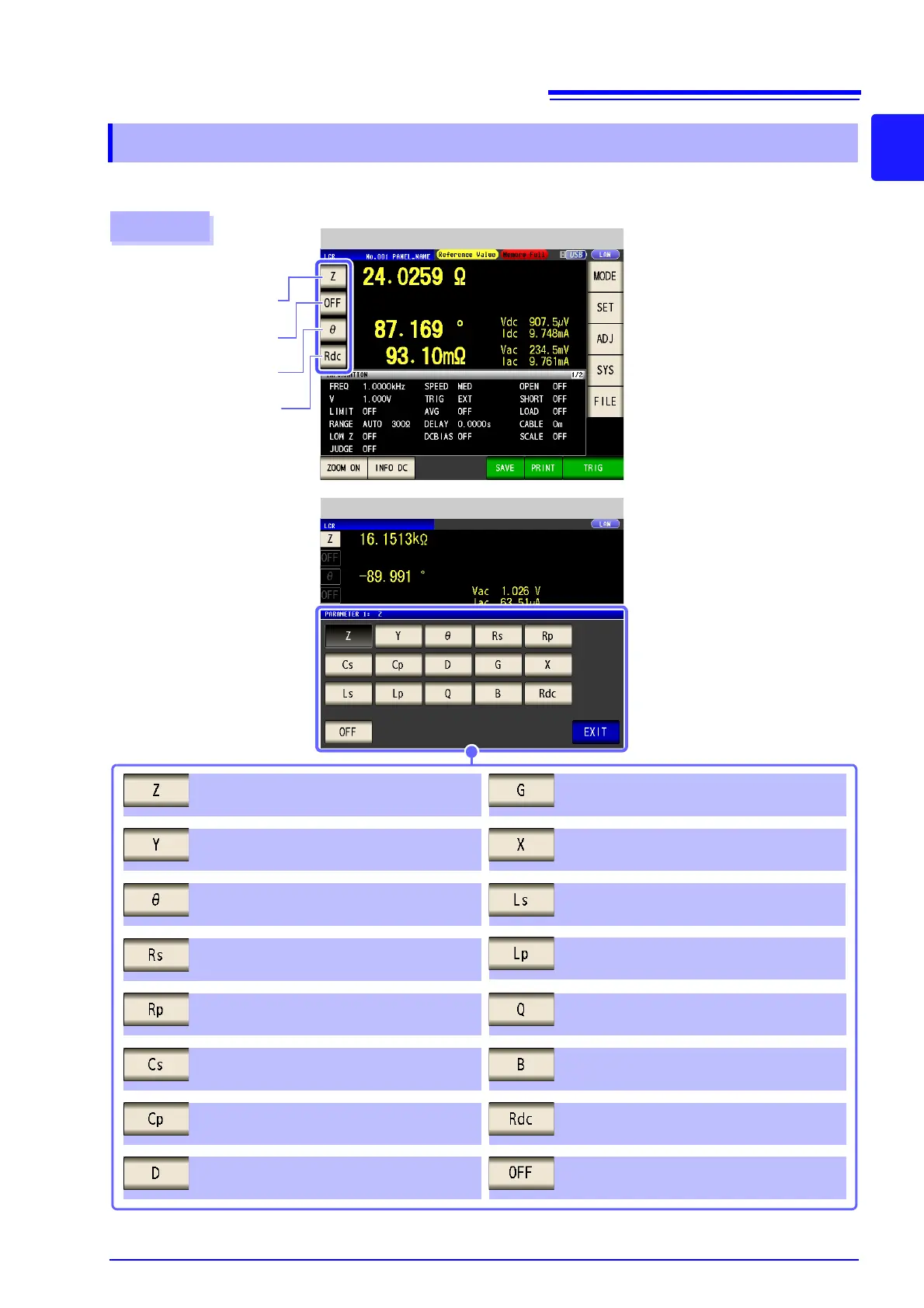

1.3.7 Parameter Settings Screen
Procedure
Select parameters.
Parameter Setting
LCR Initial Screen
1
2
Static capacitance in series equivalent circuit
mode (F)
Static capacitance in parallel equivalent circuit
Loss coefficient = tan
Reactance ()
Susceptance (S)
DC Resistance()
Display no measurement parameter in the
chosen position.
Effective resistance in series equivalent circuit
mode ESR = ()
Effective resistance in parallel equivalent cir-
cuit mode (
)
Conductance (S)Impedance ()
Admittance (S)
*Impedance phase angle ( ° )
Q factor
* The phase angle  is shown based on the impedance Z. When measuring based on the admittance, the sign of the phase
angle
 must be reversed.
The first parameter key
The second parameter key
The third parameter key
The fourth parameter key
Press the key to set.
Inductance in series equivalent circuit mode
(H)
Inductance in parallel equivalent circuit mode
(H)
