4.5 Setting Application Settings
119
4
Chapter 4 LCR Function
The higher the measurement frequency, the shorter the time that INDEX and EOM are high (off). When the
high (off) time is too short due to characteristics of the input circuit, the instrument can be configured to
maintain the low (on) state for a preset time once EOM
changes to low (on) before reverting the signal to high
(off) after the completion of measurement. The INDEX
output method can be changed in the same manner.
See "Chapter 11 External Control" (p. 363)
4.5.8 Setting the EOM Output Method

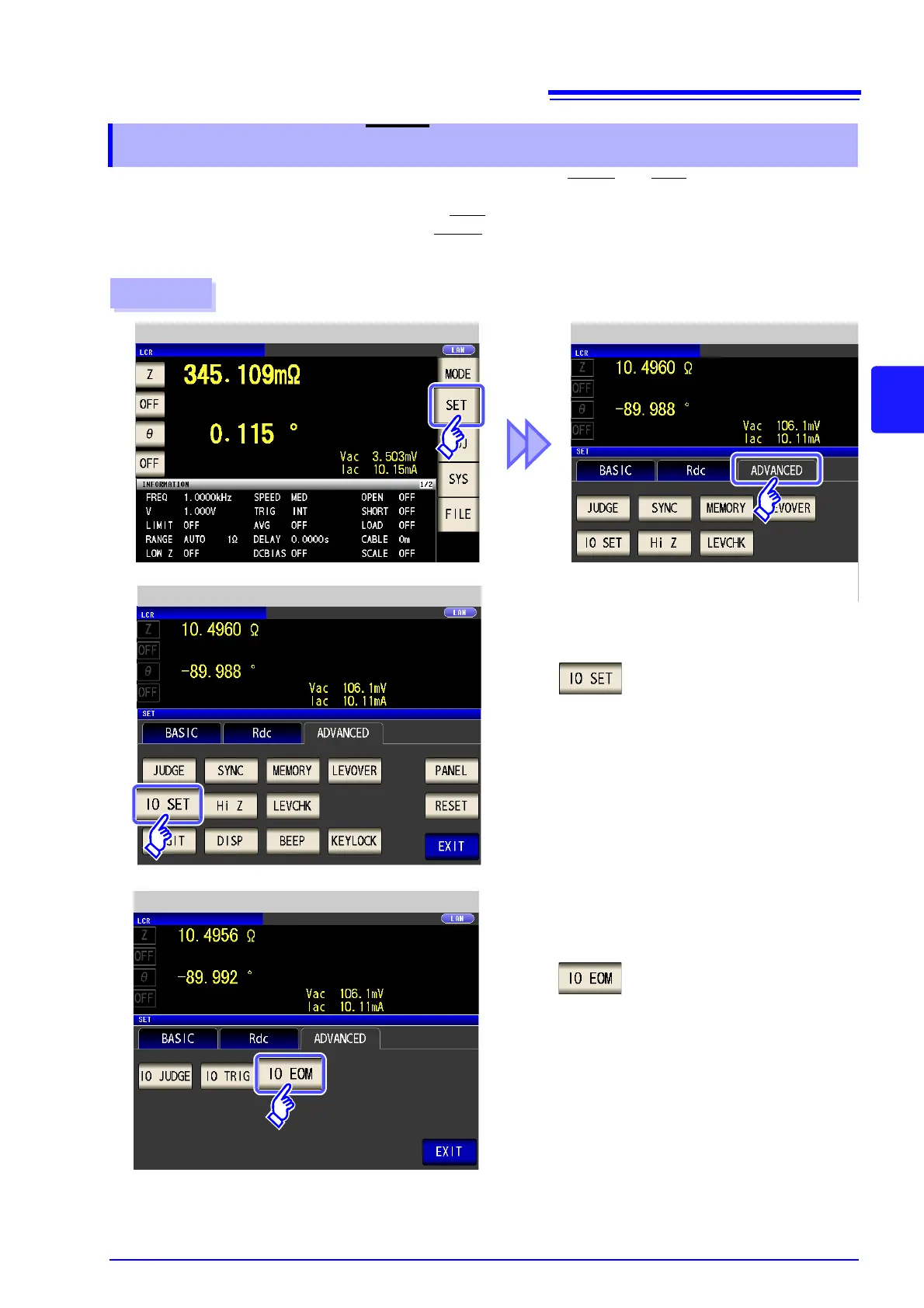

Procedure
LCR Initial Screen
3
Application Settings
I/O Setting
1
Press .
2
Application Settings
Press .
