4.3 Setting DC Resistance Measurement
65
4
Chapter 4 LCR Function
You can output a DC signal of any level (up to 2.5 V) and measure the DC resistance Rdc.
4.3 Setting DC Resistance Measurement
LCR
ANALYZER
• To measure DC resistance, you need to set Rdc in the measurement parameters before-
hand.
See "1.3.7 Parameter Settings Screen" (p. 25)
"4.1.2 Setting Display Parameters" (p. 39)
• When Rdc and other parameters are set, the DC resistance is measured after those other
parameters have been measured with the AC signal. The measurement conditions can be
set individually.
• The DC bias function cannot be enabled when RDC measurement is performed.

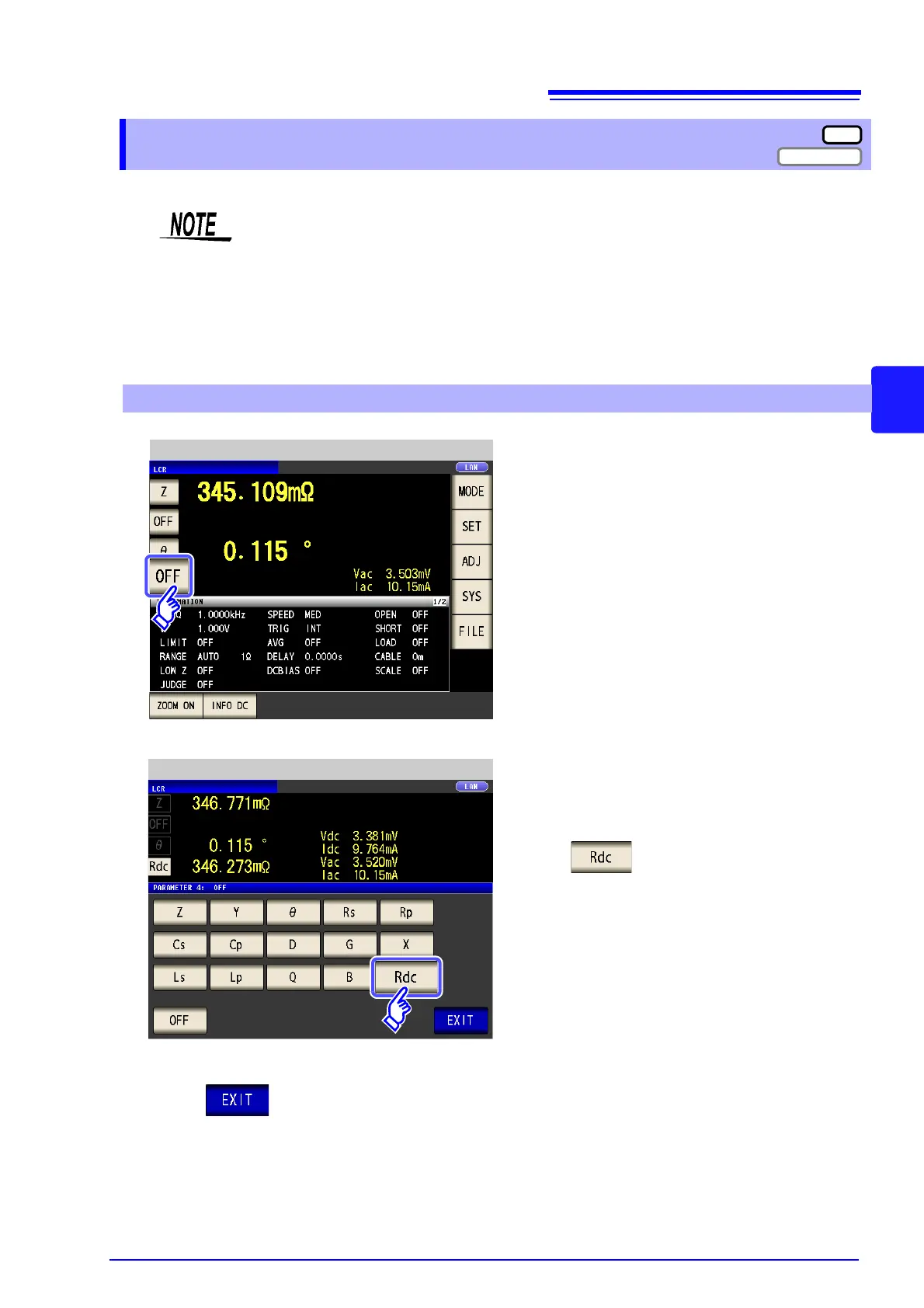

Adding Rdc to Measurement Parameters
LCR Initial Screen
1
Select the parameter you want to change.
2
Press .
Parameter Setting
3
Press to close the setting screen.
