Hioki IM3570 - Enabling Trigger Input for During Measurement and Setting the Valid Edge of Trigger Input

4.5 Setting Application Settings
117
4
Chapter 4 LCR Function
You can select whether to enable or disable trigger input from the EXT I/O during measurement (during EOM
(HI) output after trigger is received). Furthermore, you can also select either the rising edge or falling edge as
the valid edge of trigger input from the EXT I/O.
See "11.2 Timing Chart" (p. 369)
4.5.7 Enabling Trigger Input for during Measurement
and Setting the Valid Edge of Trigger Input

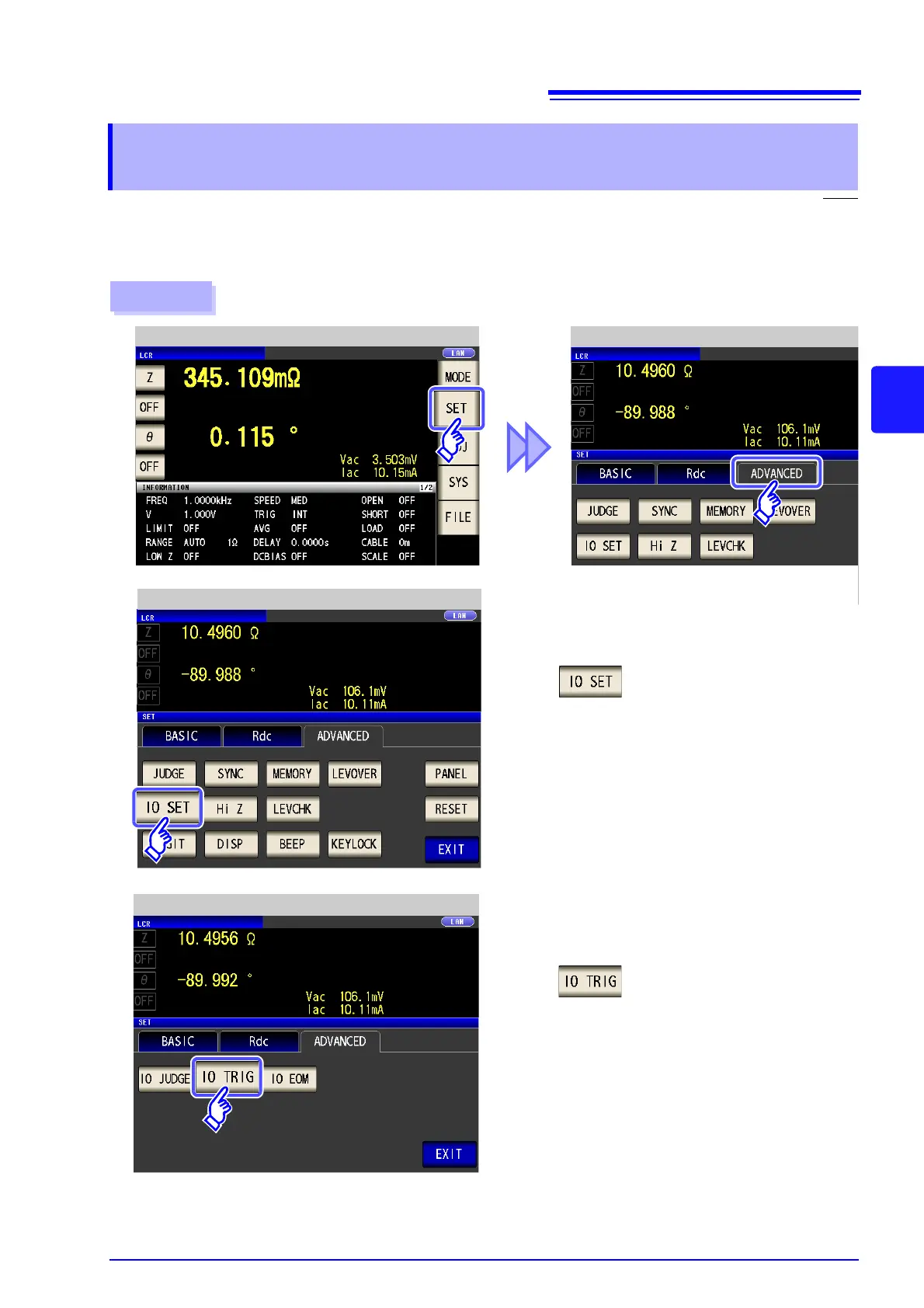

Procedure
LCR Initial Screen
3
Application Settings
I/O Setting
1
Press .
2
Application Settings
Press .
