4.5 Setting Application Settings
104
This function enables the measurement signal to be output after measurement is triggered and ensures that
the signal is applied to the sample only during measurement.
Thus reducing the generation of heat in the sample and decreasing electrode wear.
4.5 Setting Application Settings
LCR
ANALYZER
4.5.1 Synchronizing Measurement
(Trigger Synchronous Output Function)

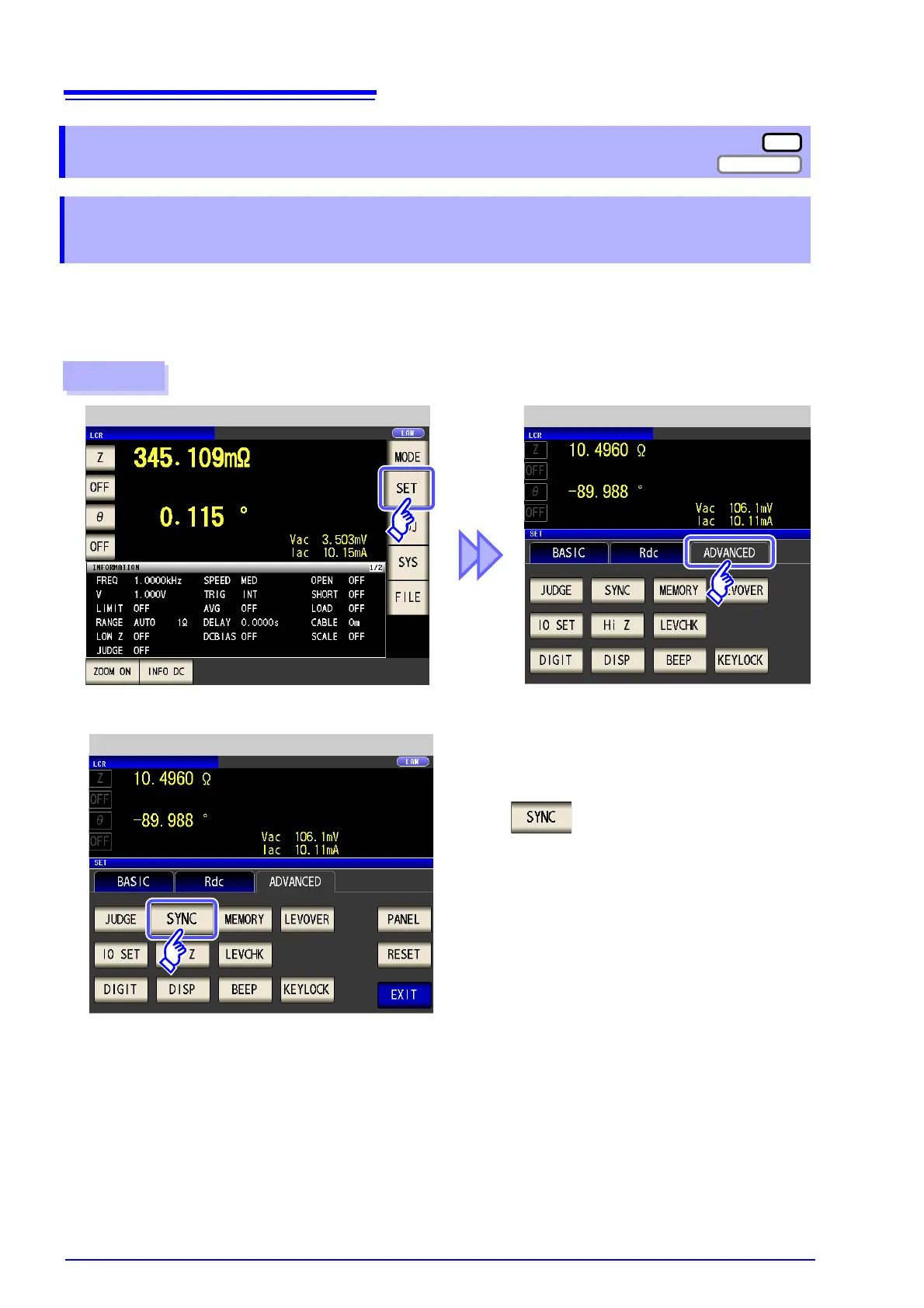

Procedure
LCR Initial Screen Application Settings
1
Press .
2
Application Settings
