5.3 Normal Sweep

160

When measuring, for example, a test sample whose impedance varies greatly with frequency or a test sample

whose nature is unknown, the most suitable measurement range can be set with AUTO. And, fixing the range

with HOLD enables high speed measurement.

There are the following two methods for setting the measurement range.

5.3.3 Setting the Measurement Range

• The ranges are all defined in terms of impedance. Therefore, for a parameter other than

impedance, the value is obtained by calculating from the measured values of |Z| and .

See"Appendix 1 Measurement Parameters and Arithmetic Expressions"(p. A1)

• In analyzer mode, low Z high accuracy mode is set to OFF.

Setting AUTO Ranging

AUTO

The most suitable test range is set automatically.

HOLD

The test range is fixed, and may only be altered manually.

Procedure

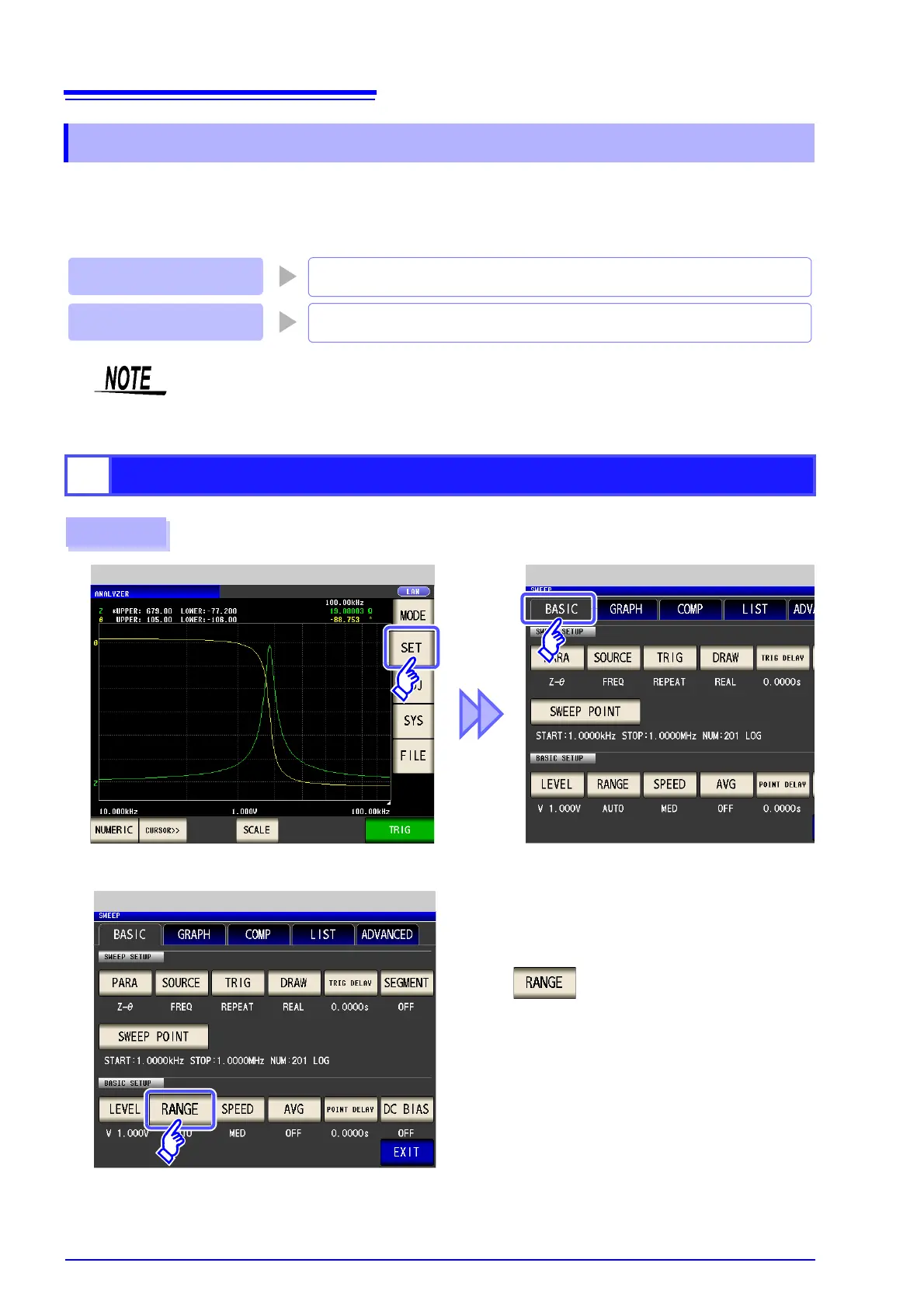

Press .

Analyzer Initial Screen Analyzer Basic Settings

Analyzer Basic Settings
