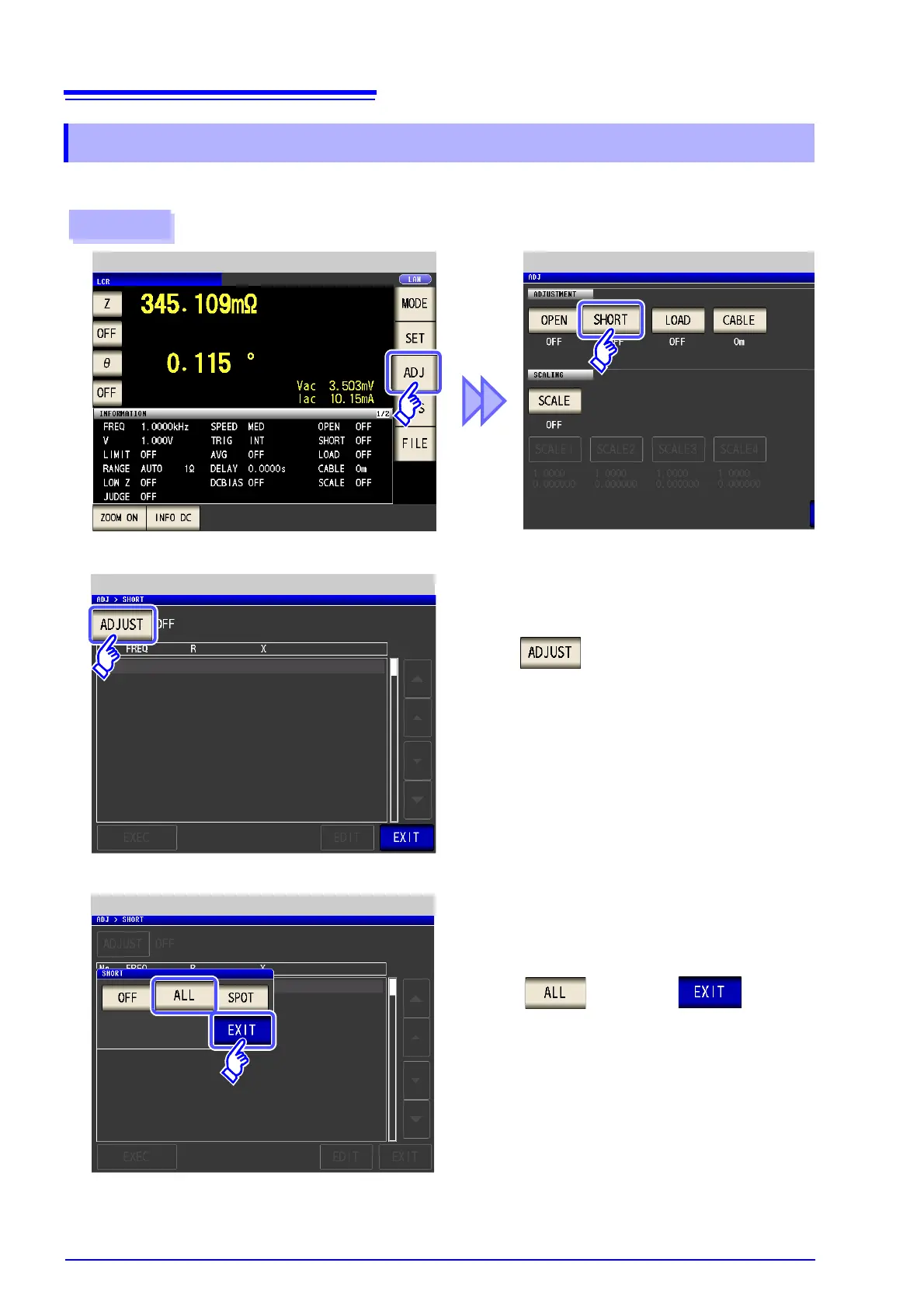

7.2 Short Circuit Compensation

282

Simultaneously acquire the short compensation values for all measurement frequencies.

7.2.1 All Compensation

Procedure

Compensation Screen

1

2

Press .

3

Select and press to close

the setting screen.

LCR Initial Screen

Short Compensation

Short Compensation Setting
