4.5 Setting Application Settings
105
4
Chapter 4 LCR Function
• When the trigger synchronous output function is set to ON, there is a measurement time
delay because the unit enters a wait time which spans from when the measurement sig-
nal is output to when measurement starts.
See"13.3 About Measurement Times and Measurement Speed" (p. 399)
• When the trigger synchronous output function is set to ON, the set DC level may be out-
put if a measurement condition is changed. Also, output will stop when measurement is
performed once.
• The measurement signal is output when the trigger signal is input and stops after mea-
surement ends.
• In continuous measurement mode, the measurement signal stops after measurement of
the last panel ends.
3

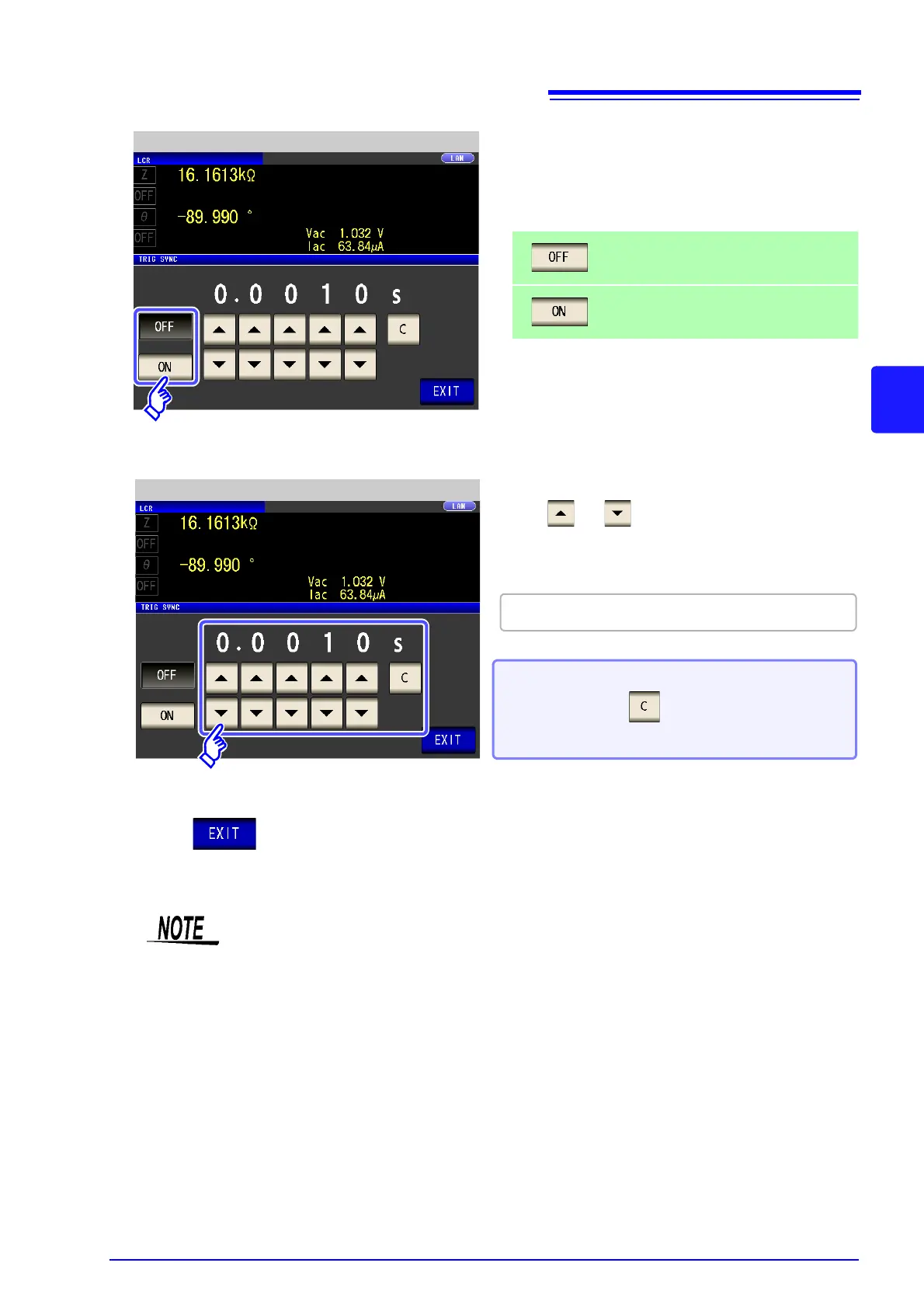

Trigger Sync Setting
Select ON/ OFF for the trigger synchronous
output function.
Sets the trigger synchronous output function
to OFF.
Sets the trigger synchronous output function
to ON.
Use or to set the wait time from after
the measurement signal is output by applying
a trigger to the start of measurement.
5
4
Press to close the setting screen.
Settable range: 0.0010 to 9.9999 s
When you want to return the time to the ini-
tial state: Press .
The set time is set to 0.0010 s.
Trigger Sync Setting
To Next Page
