Chapter 3 Measurement Example
In analyzer measurement mode, the sweep can be performed with frequencies and signal levels within the
desired range.
See "Chapter 5 ANALYZER Function" (p. 131)
Necessary items: 9262 Test fixture
Element you want to measure
3.2 When Analyzer Measurement
Mode

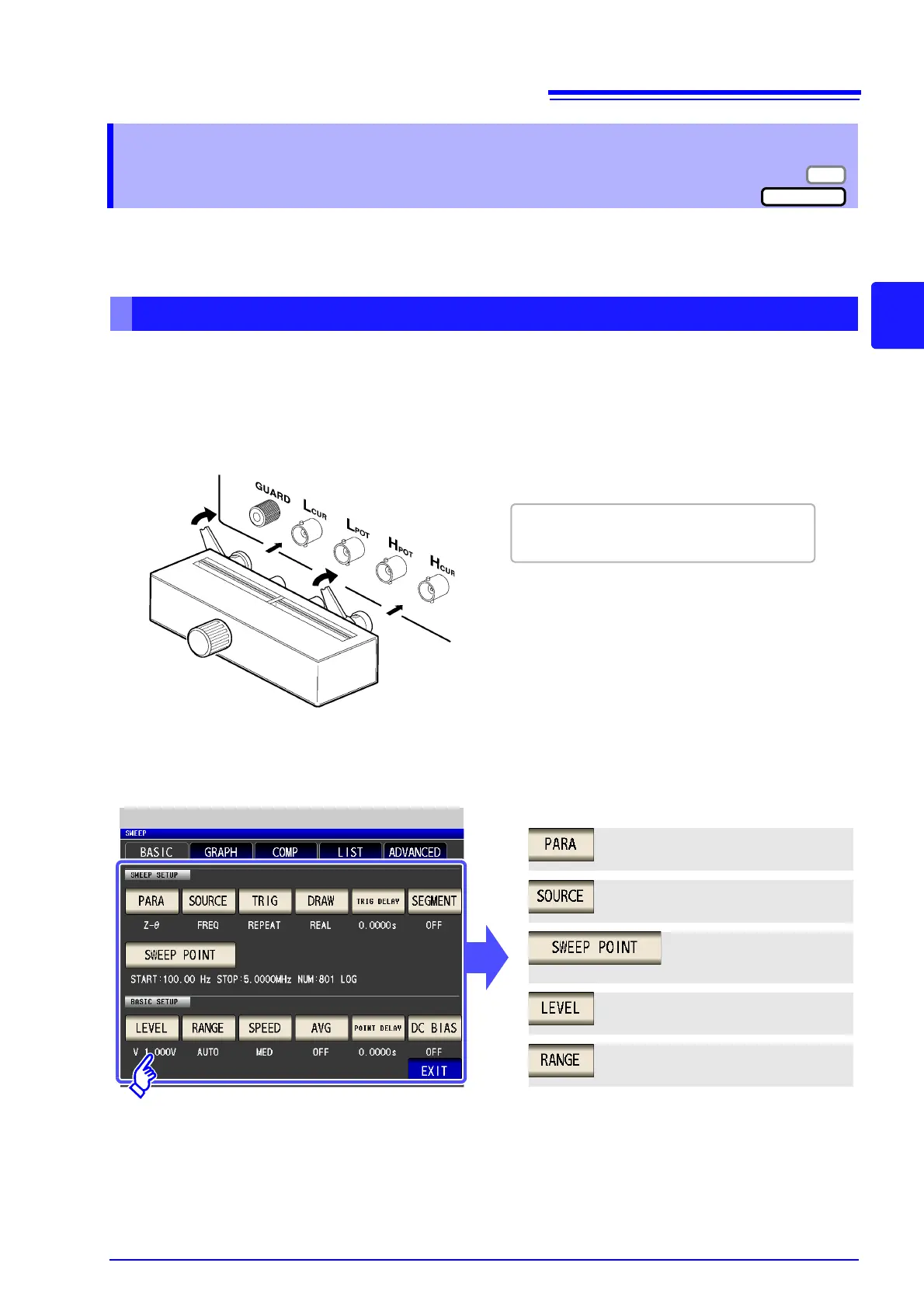

Measuring Element with Resonance Point
1
Connect the 9262 Test Fixture to the measurement terminals.
For the connection procedure, refer to the
instruction manual supplied with the fixture.
2
Set the measurement conditions.
Analyzer Basic Settings
Sweep point: 100Hz to
5MHz (p. 145)
Range: AUTO (p. 160)
See For details on the other items, see from page 131.
Measurement signal level: 1 V (p. 157)
Sweep parameter: FREQ (p. 145)
Parameter: Z- (p. 133)
