5.3 Normal Sweep
145
5
Chapter 5 ANALYZER Function

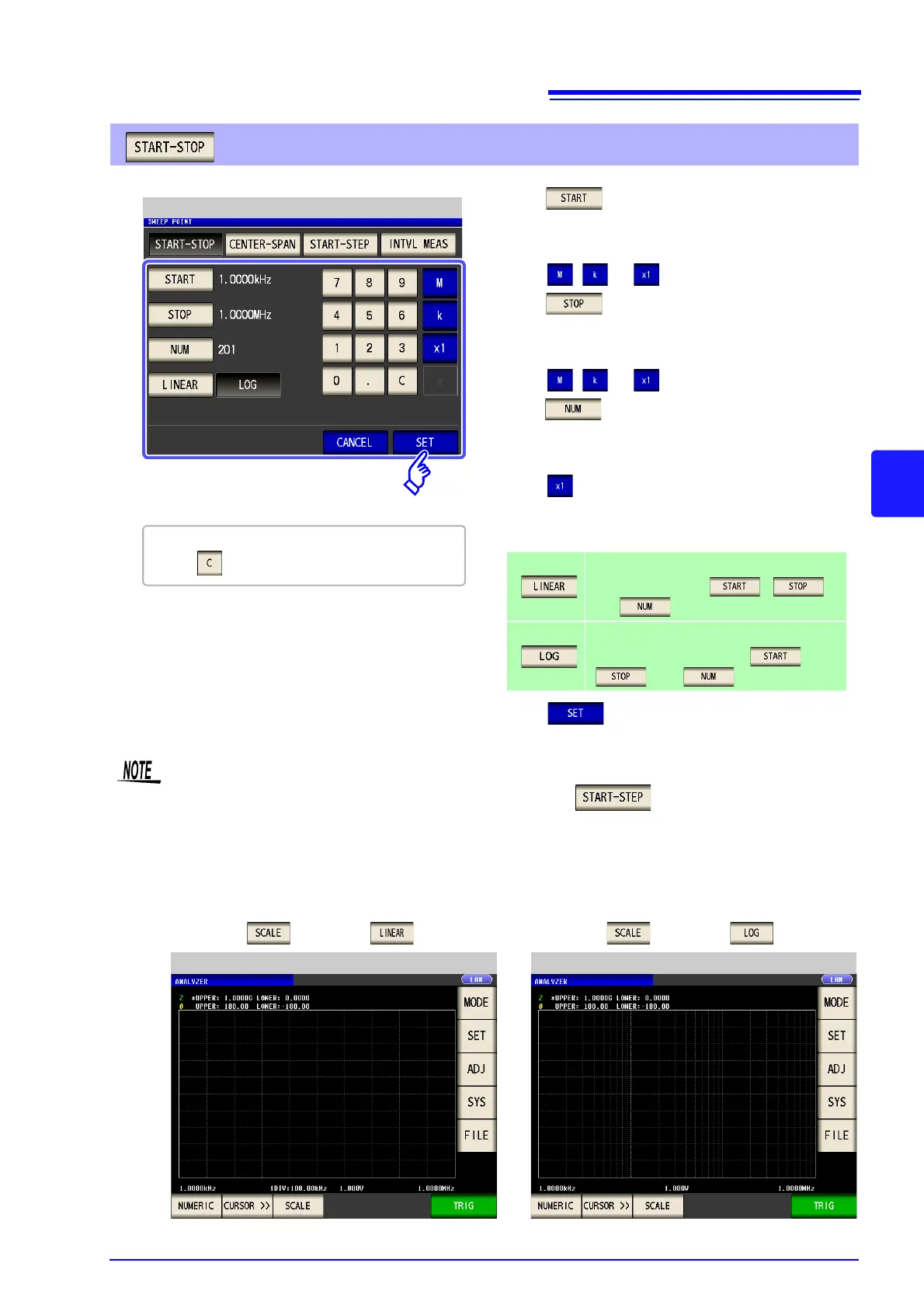

Setting the start value and end value of the sweep
1. Press and use the numeric keypad to set the
start value of the sweep.
Settable range: 4 Hz to 5 MHz
2. Press , , or key to confirm the setting.
3. Press and use the numeric keypad to set the
end value of the sweep.
Settable range: 4 Hz to 5 MHz
4. Press , , or key to confirm the setting.
5. Press and use the numeric keypad to enter the
number of sweep points.
Settable range: 2 to 801
6. Press key to confirm the setting.
7. Select the setting method for sweep points (when fre-
quency sweep).
START-STOP Settings
The sweep points are calculated linearly from
the setting values of , ,
and .
The sweep points are calculated logarithmical-
ly from the setting values of ,
, and .
8. Press to confirm the setting.
If you make a mistake during input:
press to cancel the input and start again.
• The setting method of the sweep points can only be selected when the sweep parameter is fre-
quency and the setting method of the sweep range is . In other cases, the setting
method of the sweep points is fixed to linear.
• If the setting method of the sweep points is changed, the horizontal axis scale of the graph display
screen changes as shown in the figures below. (The horizontal axis scale of the graph can also be
changed with the horizontal axis scale setting.)
See: "Horizontal Axis Scale Setting" (p. 177)
Linear Setting Log Setting
The horizontal scale is linear display. The horizontal scale is log display.
When the setting is . When the setting is .
