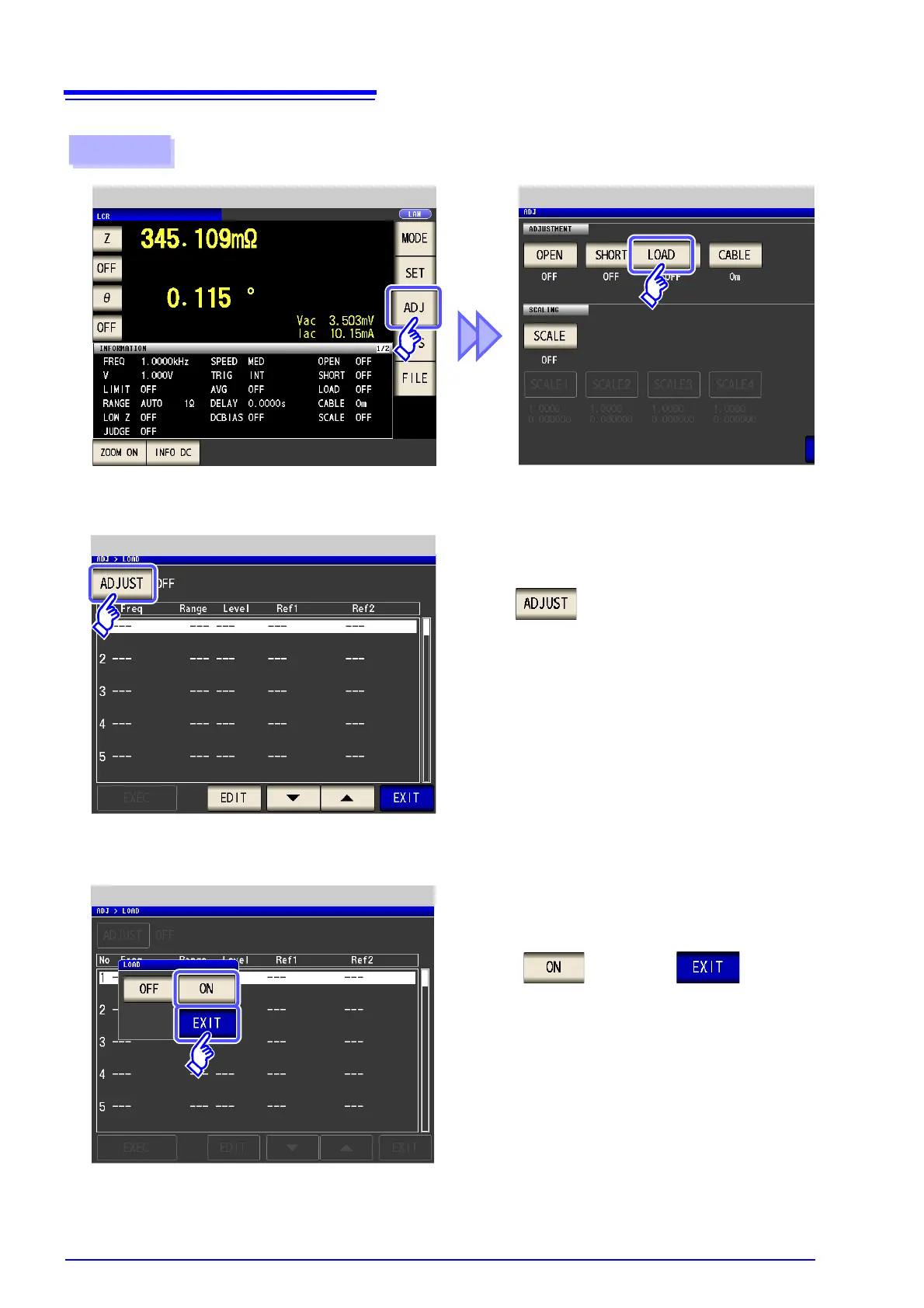

7.3 Compensating Values to Match Reference Values (Load Compensation)

290

Procedure

Compensation Screen

1

2

3

Select , and press to

confirm the selection.

LCR Initial Screen

Load Compensation Value List

Load Compensation Setting

Press .
